Overview

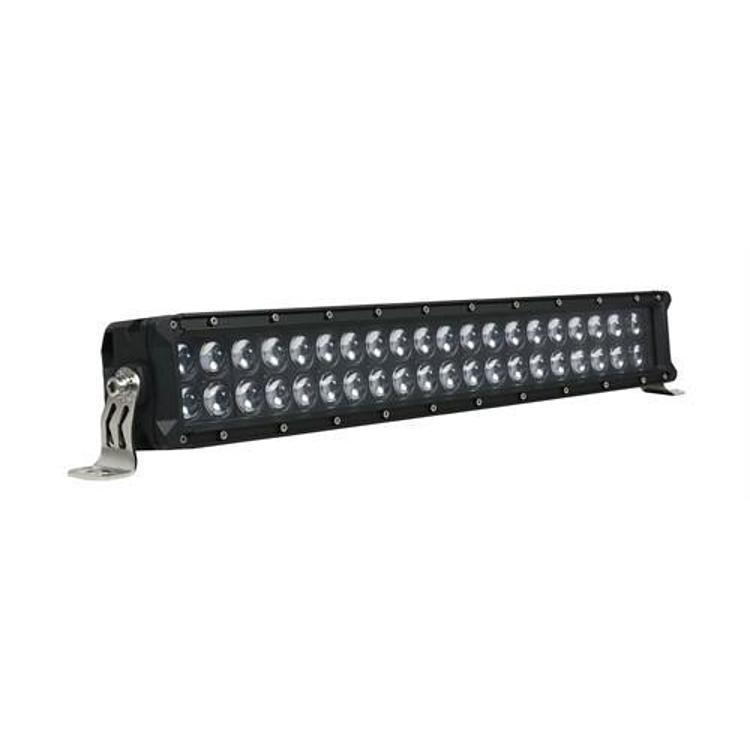

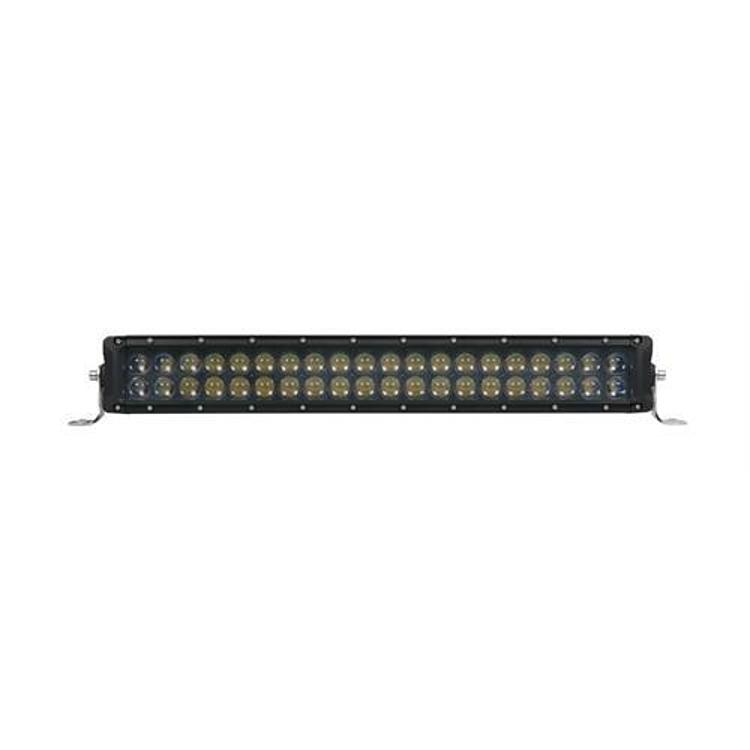

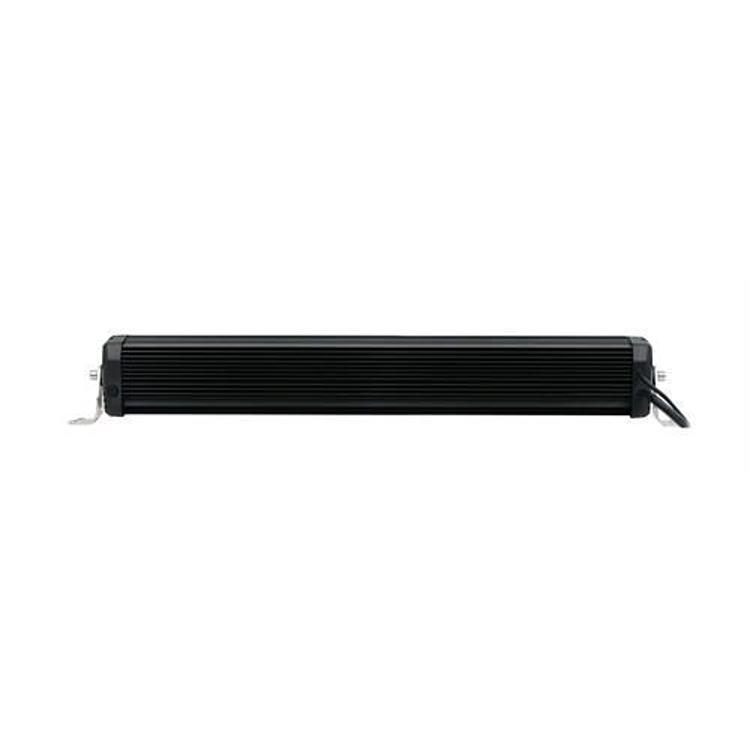

The Hella ValueFit Northern Lights LED light bar, part number 357212221, is a 22 in long RGB LED light bar with a die-cast aluminum housing and 6000K white output. It is a general lighting accessory and is not built for one vehicle, so mounting fit depends on the location you choose.
The bar uses 40 high intensity white LEDs with a measured output of 3280 lm, rated at 60 W and IP67. It runs on a multivolt supply of 10-30V DC. The RGB function is controlled from a phone app over Bluetooth on iOS and Android, with color changes, flash patterns, a rhythm-synced music mode and an on/off timer.
Key features
- 40 high intensity white LEDs in a 22 in bar
- Die-cast aluminum housing
- 6000K color temperature for white output
- Measured output of 3280 lm
- IP67 rating
- RGB colors controlled with a phone app over Bluetooth for iOS and Android
- Flash patterns, music sync and on/off timer in the app
Choosing a mounting spot
Placement decides how much of the light reaches the road and how much dirt reaches the housing. Higher spots reduce spray from the tires and keep the lens cleaner, while low spots pick up mud quickly. Choose a spot with room for the bracket and enough clearance so the cables can move with suspension travel without pulling.
Because this is a general lighting accessory, the bracket is the main link to the vehicle. Check that the bracket grips a solid surface, and tighten the hardware in stages so the bar sits square. A light that drifts out of alignment after a few trips usually points to a loose bracket rather than a fault in the bar.
- Keep the cable clear of moving parts
- Check bracket contact on a solid surface
- Tighten hardware in stages
- Re-check alignment after the first few drives
Specifications
| Brand | Hella |
|---|---|
| Product line | ValueFit Northern Lights Series |
| Part number | 357212221 |
| UPC | 760687173229 |

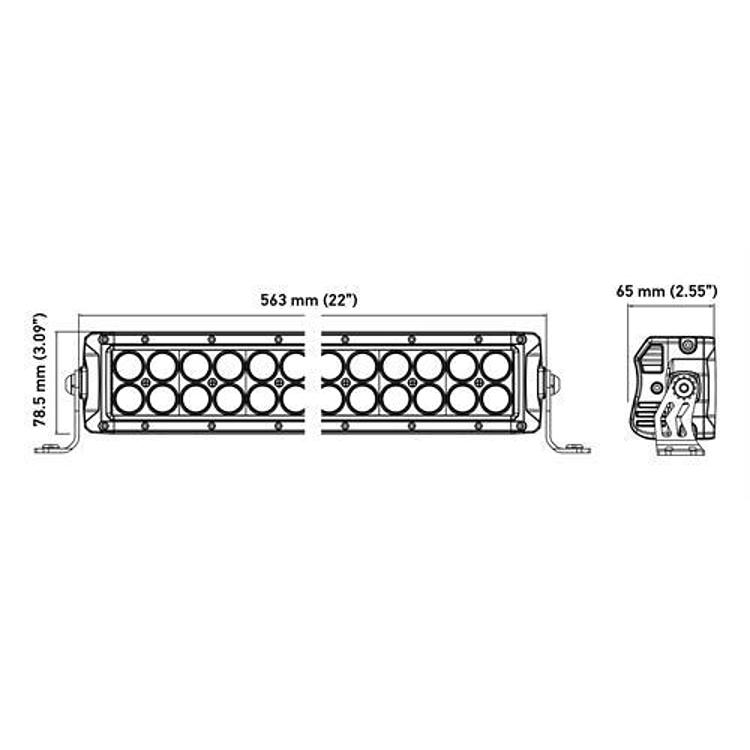

| Length | 22 in |
| LEDs | 40 high intensity white |
| Color temperature | 6000K |
| Measured lumen output | 3280 lm |
| Power | 60 W |
| Voltage | Multivolt 10-30V DC |
| Protection rating | IP67 |
| Housing | Die-cast aluminum |
| Color control | RGB, Bluetooth app for iOS and Android |
Vehicle fitment
This light bar is a general lighting accessory and is not built for a single vehicle. Fit depends on the mounting location and the bracket included with the light.
Make sure the 22 in length and mounting bracket suit your vehicle’s mounting area. Confirm your vehicle’s year, model and trim before ordering.
Installation notes
Mount with the included bracket and follow the mounting instructions packed with the light. Wire it to a supply between 10V and 30V DC, use a fuse and relay on the power feed, and check local rules for auxiliary lights before using it on public roads. The app needs Bluetooth on your phone.
What’s included
One RGB LED light with mounting bracket and mounting instructions.
