G2 Ring and Pinion Set, Dana 44 / M220 Rear 5.38 Ratio – 2-2152-538

G2 Axle and Gear

Shop on Amazon

Compare current versions and compatible options on Amazon, then check out with your Amazon account.

Slickrock 4X4 is a participant in the Amazon Associates Program. As an Amazon Associate we earn from qualifying purchases.

  • G2 Dana 44 and M220 rear ring and pinion set, 5.38 ratio, part 2-2152-538
  • Rear axle position
  • Popular axle manufacture Dana

Description

Overview

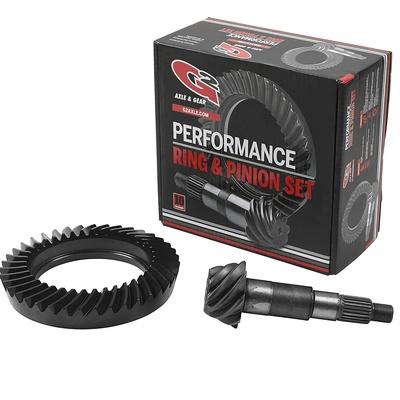

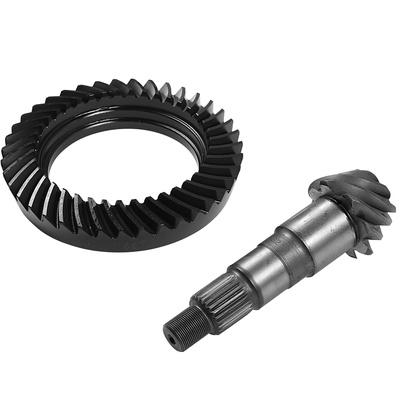

The G2 Ring and Pinion Set, Dana 44 / M220 Rear 5.38 Ratio, part 2-2152-538, is a rear gear set at 5.38 for the Dana 44 and M220 rear.

G2 says its performance ring and pinion sets are made for oversized tires and high performance engines, with materials and processes that it describes as current.

Key features

  • 5.38 gear ratio
  • Rear axle position
  • Built for oversized tires and high performance engines

Pinion depth and preload

Pinion depth and carrier preload work together. Depth sets where the pinion teeth meet the ring gear, while preload controls how tightly the bearings hold the carrier. Changing one usually affects the other, so adjustments should be made in small steps and rechecked with a contact pattern and a backlash measurement before the axle returns to service.

A rear set at this ratio gives stronger low speed pull, and that extra torque puts more stress on bearings and seals. When a new set goes in, replacing the pinion crush sleeve and checking the carrier bearing seats are common steps. Inspect the teeth for chips or pitting at each fluid change, and note any change in noise or heat as an early sign of a problem.

  • Replace the crush sleeve on a pinion rebuild
  • Measure backlash at several points on the ring gear
  • Check carrier bearing seats for wear

Specifications

Brand G2 Axle and Gear
Part number 2-2152-538
Axle location Rear
Axle type Dana 44
Gear ratio 5.38
Popular axle manufacture Dana

Vehicle fitment

Universal fit is listed, but no vehicle is named. The set is for the rear Dana 44 or M220 at 5.38, so confirm both before ordering.

Confirm your vehicle’s year, model and trim before ordering.

Installation notes

The 5.38 rear set needs the pinion depth and carrier preload set correctly, so plan for a gear setup before it goes into service.

What’s included

One ring and pinion set.

Questions & Answers

What gear ratio is the G2 2-2152-538?

5.38, the ratio of this rear gear set from G2 Axle and Gear, built for oversized tires and high performance use, and fitting the rear Dana 44 or M220 axle.

Is the 2-2152-538 a front or rear set?

Rear. The axle location is rear, so this gear set goes into the rear axle of a Dana 44 or M220, not the front position.

Does it cover the M220 rear?

Yes. The set is built for both the Dana 44 and M220 rear axles at the 5.38 ratio, so either rear housing type is covered.

How often should a rear ring and pinion be inspected?

Inspect it at each fluid change and any time the rear axle is serviced. Look for metal in the fluid, changes in noise under load, and a contact pattern that shifts from its original position. A quick check during tire rotation can also catch leaks or play early.
