G2 Ford 9″ 2.96″ Bore Master Ring and Pinion Installation Kit – 35-2011A

G2 Axle and Gear

Shop on Amazon

Compare current versions and compatible options on Amazon, then check out with your Amazon account.

Slickrock 4X4 is a participant in the Amazon Associates Program. As an Amazon Associate we earn from qualifying purchases.

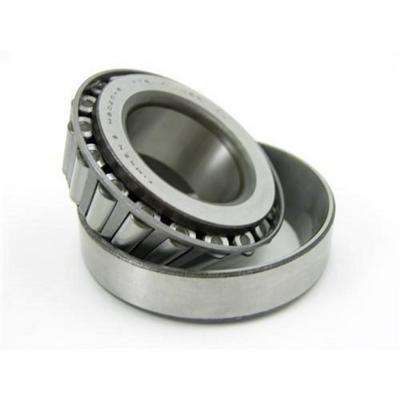

  • Master installation kit with bearings for a Ford 9-inch rear axle
  • Written for the 2.96-inch bore housing
  • Part number G/235-2011A
  • Includes shims, pinion nut, crush sleeve and seals

Description

Overview

The G2 Axle and Gear Ford 9-inch master installation kit, part G/235-2011A, is built for the rear 9-inch axle with a 2.96-inch bore. The kit is offered by axle only, with no truck or model year named.

The kit is a full install set for a new ring and pinion, with the bearings, shims and fasteners that a gear swap needs on this housing.

Ford 9-inch axles with this bore size are usually set up from a master kit like this one, which keeps the shims, bearings and seals together. Pinion depth is the adjustment that matters most when a new set goes into a 2.96-inch bore housing.

Key features

  • Master kit with bearings
  • Deluxe shim kit for pinion depth
  • Pinion seal, pinion nut and crush sleeve
  • Ring gear bolts and sealing compound
  • Gear marking compound for checking the pattern

Choosing a ring and pinion set

A ring and pinion swap changes the gear mesh, so the new set has to match the housing it goes into. Gear ratio, tooth count and carrier type all affect how the rear end drives and how it sounds at highway speed. Taller gearing can feel more responsive off the line, while shorter gearing lowers engine speed on the highway. Pick the ratio with your tire size and driving in mind.

Before buying gears, inspect the carrier bearings, pinion bearing and pinion yoke for wear. A worn yoke can throw off preload even when the new gears are correct. Replace the ring and pinion as a matched pair, since mixing sets causes uneven wear and noise.

  • Measure the carrier and housing before ordering gears
  • Replace bearings and seals along with the gear set
  • Check the pinion yoke for wear or grooves

Specifications

Brand G2 Axle and Gear
Part number G/235-2011A
Axle location Rear
Axle type Ford 9 inches, 2.96-inch bore
Kit type Master kit with bearings

Vehicle fitment

It fits Ford 9-inch rear axles with a 2.96-inch bore. Confirm fit for your vehicle’s year, model and trim before ordering.

Installation notes

The shim kit sets pinion depth on the 2.96-inch bore housing, and the marking compound confirms the mesh. Both steps are needed before the rear end goes back in service.

What’s included

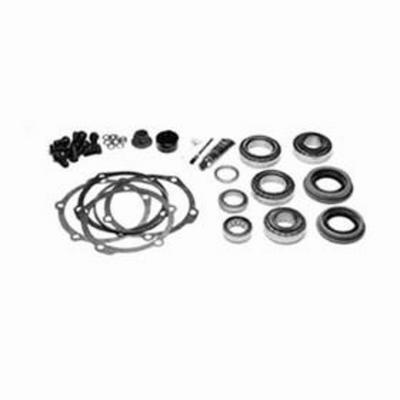

Bearings, shim kit, pinion nut, crush sleeve, pinion seal, ring gear bolts, sealer, Loctite and gear marking compound.

Not included: the ring and pinion gears for the 2.96-inch bore housing.

Questions & Answers

Will this kit fit my Ford 9-inch rear?

It fits Ford 9-inch rear axles with a 2.96-inch bore. Confirm fit for your vehicle's year, model and trim before ordering, since the bore size is the key measurement.

Does the kit include the gears?

No. Only the install parts are included, so the ring and pinion must be bought separately and matched to the 2.96-inch bore housing before the kit's shims are used.

What does the shim kit do?

It sets pinion depth, which controls how the gears mesh. Check the setting with the gear marking compound included in the kit, so the tooth pattern is correct before the rear end is used.

Is the pinion nut included?

Yes. The kit includes a replacement pinion nut and a crush sleeve for the install, which are the parts that set pinion preload on this housing.

How do I know if pinion depth needs setting again?

Set it again whenever the pinion or carrier is replaced, or when the gear pattern looks off. A pattern that rides too high or too low on the teeth points to a depth problem, and it should be corrected before the axle is driven. Recheck after the first few trail runs as well.
