G2 GM 7.5 Inch Master Ring and Pinion Installation Kit – 35-2015

G2 Axle and Gear

Shop on Amazon

Compare current versions and compatible options on Amazon, then check out with your Amazon account.

Slickrock 4X4 is a participant in the Amazon Associates Program. As an Amazon Associate we earn from qualifying purchases.

  • G2 master ring and pinion install kit for GM 10-bolt 7.5-inch rear axles
  • Master kit with bearings, part number 35-2015
  • Includes shims, pinion seal, pinion nut, crush sleeve and ring gear bolts
  • UPC 631410095609

Description

Overview

The G2 GM 7.5 Inch Master Ring and Pinion Installation Kit, part number 35-2015, is a master install kit for rear GM 10-bolt axles listed at 7.5 inches. It is a master kit with bearings, meant to cover the parts a ring and pinion install needs.

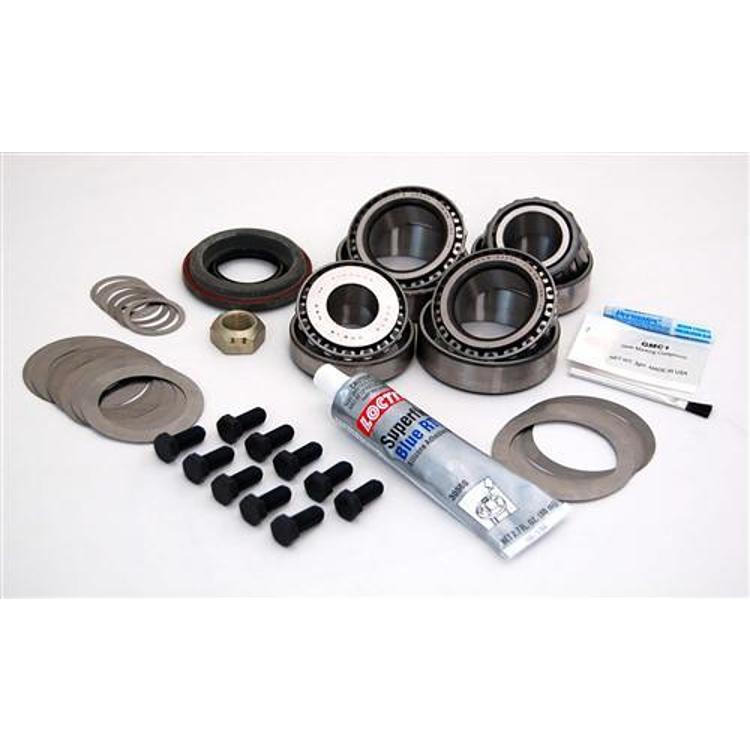

The kit includes a shim kit, pinion bearings, carrier bearings, pinion nut, crush sleeve, pinion seal, ring gear bolts, silicone sealer, Loctite and gear marking compound. Many general auto parts stores do not carry these items, so plan to buy them with the kit.

Key features

  • Shim kit included
  • Pinion and carrier bearings
  • Pinion nut and crush sleeve
  • Pinion seal and ring gear bolts
  • Silicone sealer, Loctite and gear marking compound

Preparing the axle for install

A ring and pinion swap on a 7.5-inch rear axle starts with a clean housing and a careful check of the carrier, the pinion bore and the bearing seats. Any scoring or wear in those areas can change pinion depth or carrier preload, so measure before reassembling. Many people inspect the housing first and replace any parts that show damage, which avoids surprises once the gears are in.

Setting pinion depth and backlash takes a dial indicator, shims and patience, and the gear marking compound shows whether the tooth contact is correct. Make small shim changes and recheck each time instead of forcing a setting. Once the gears are set, recheck carrier preload and bolt torque after the first few trail runs or drives, since new fasteners can settle.

  • Clean the housing and carrier before assembly
  • Check bearing seats for scoring
  • Use new ring gear bolts with the thread locker supplied

Specifications

Brand G2 Axle and Gear
Part number 35-2015
UPC 631410095609
Axle location Rear
Axle type GM 10 Bolt 7.5 inches
Popular axle manufacturer GM
Kit type Master kit with bearings

Vehicle fitment

The kit is matched to GM 10-bolt 7.5-inch rear axles, which identifies the axle rather than a vehicle, so fit by model needs confirming.

Measure the axle housing and the 7.5-inch ring gear before buying, and verify your vehicle’s year, model and trim.

Installation notes

Ring and pinion installation requires setting pinion depth, carrier preload and backlash, then checking the tooth pattern with gear marking compound. Professional gear setup is the usual approach for this work.

What’s included

Shim kit, pinion bearings, carrier bearings, pinion nut, crush sleeve, pinion seal, ring gear bolts, silicone sealer, Loctite and gear marking compound.

Not included: ring and pinion gear set.

SKU: G/235-2015 Category:

Specification

Shipping weight 7.00 lbs
Package dimensions 12.90 × 12.80 × 3.10 in
brands

Questions & Answers

Is part 35-2015 a master kit with bearings?

Yes. The title and attributes list it as a master kit with bearings, and the contents include pinion and carrier bearings along with shims, a pinion nut, crush sleeve, pinion seal, ring gear bolts and sealer.

Which GM axle does the 35-2015 fit?

It is named for GM 10-bolt 7.5-inch rear axles. No model or years are listed, so confirm your axle housing and ring gear size before ordering.

Does the kit include the gears?

No gear set is listed. The kit provides installation parts, so a separate ring and pinion gear set is needed to complete the job.

Can the old pinion bearings be reused?

Reusing pinion bearings is usually avoided when a ring and pinion is replaced. Bearings that have run under load can carry hidden wear that shows up as noise later. Replacing them with the kit's pinion and carrier bearings gives the new gear set a consistent starting point.

How do I know if the crush sleeve is set correctly?

The crush sleeve sets pinion preload, so it is checked by measuring rotational torque after assembly. It should be tightened in steps and never backed off to adjust preload. If preload is too high or too low, the sleeve is replaced rather than reused.
