G2 Toyota 7.5 Inch Big Bearing Master Ring and Pinion Installation Kit – 35-2042L

G2 Axle and Gear

Shop on Amazon

Compare current versions and compatible options on Amazon, then check out with your Amazon account.

Slickrock 4X4 is a participant in the Amazon Associates Program. As an Amazon Associate we earn from qualifying purchases.

  • G2 Axle and Gear 35-2042L big bearing master ring and pinion installation kit
  • Made for the Toyota 7.5 inch front axle
  • Master kit with bearings for front axle installs

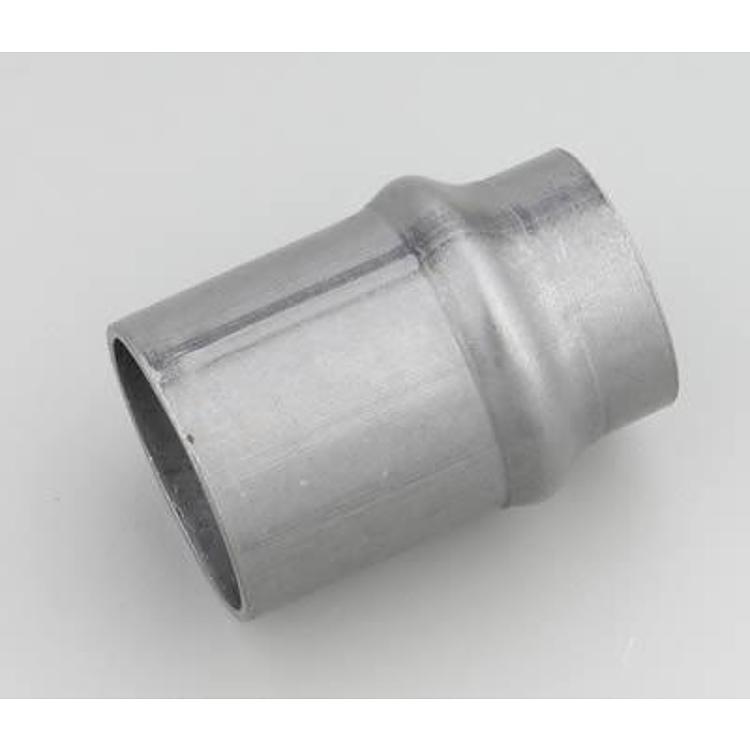

  • Includes pinion nut, crush sleeve, pinion seal and shim kit

Description

Overview

The G2 Axle and Gear 35-2042L is a big bearing master ring and pinion installation kit for the Toyota 7.5 inch front axle. The attributes give the axle location as front only, which separates it from the small bearing 35-2042 kit.

Front axle installs call for the same core parts as other master kits: a shim kit, pinion and carrier bearings, a crush sleeve and a pinion nut. Match the bearing size of your carrier to the big bearing designation before ordering.

Key features

  • Big bearing version for Toyota 7.5 inch front axles
  • Master kit with bearings
  • Shim kit and pinion nut
  • Crush sleeve and pinion seal
  • Ring gear bolts, sealer and locking compounds, plus gear marking compound

Big bearing versus small bearing

A big bearing carrier and a small bearing carrier use different bearings and races, so the two kits cannot be swapped without checking the carrier first. Measure the carrier bearing bores and compare them with the bearing races before the kit is opened. Bearing size is the deciding factor, not the axle name alone.

On a front axle, pinion depth and carrier preload are still the core settings, and the carrier bearings must seat squarely in their bores. Clean the bores thoroughly and check for burrs before pressing in new races. Installing the races slightly off square is a common cause of early bearing noise.

  • Measure carrier bearing bores first
  • Clean bores and check for burrs
  • Press races in square

Specifications

Brand G2 Axle and Gear
Part number 35-2042L
UPC 631410095913
Kit type Master kit with bearings
Bearing size Big bearing
Axle location Front
Axle type Toyota 7.5 inch
Axle manufacturer Toyota

Vehicle fitment

The kit is made for the Toyota 7.5 inch front axle type, and no vehicle years or models are named. Confirm your front axle and the year, model and trim of your vehicle before ordering.

Confirm your vehicle’s year, model and trim before ordering.

Installation notes

Because this is the big bearing version, verify the carrier bearing size against the kit before installing. Gear setup and break-in are best left to a shop with the right tools.

What’s included

Packed items: a shim kit, a pinion nut, a crush sleeve, a pinion seal, pinion and carrier bearings, ring gear bolts, silicone sealer, Loctite and gear marking compound.

Not included: The ring and pinion gear set is not part of the stated contents.

SKU: G/235-2042L Category:

Specification

Shipping weight 7.00 lbs
Package dimensions 12.90 × 12.80 × 3.10 in
brands

Questions & Answers

Is the 35-2042L the same as the 35-2042?

No. The 35-2042L is the big bearing version for the front axle only, while the 35-2042 is the small bearing kit covering front and rear locations. Compare the bearing size before ordering.

Will this kit fit a Toyota 7.5 inch front axle?

The attributes list the Toyota 7.5 inch axle type with a front location, so that is the axle the kit is made for. No model years are given, so check the axle specifications before buying.

What is the UPC for this kit?

The UPC for G2 part 35-2042L is 631410095913. Use the part number and UPC together to confirm you are comparing the big bearing master kit, not the small bearing version.

How do I tell whether carrier bearings need replacing?

Check the carrier bearings and races for pitting, heat discoloration or roughness when turned by hand. Any of those signs is a good reason to replace them with the gear set, since new gears should run on fresh bearings.
