G2 Dana 28 TTB Master Ring and Pinion Installation Kit – 35-2047

G2 Axle and Gear

Shop on Amazon

Compare current versions and compatible options on Amazon, then check out with your Amazon account.

Slickrock 4X4 is a participant in the Amazon Associates Program. As an Amazon Associate we earn from qualifying purchases.

  • G2 Axle and Gear 35-2047 Dana 28 TTB master ring and pinion installation kit
  • Made for the front Dana 28 IFS axle type

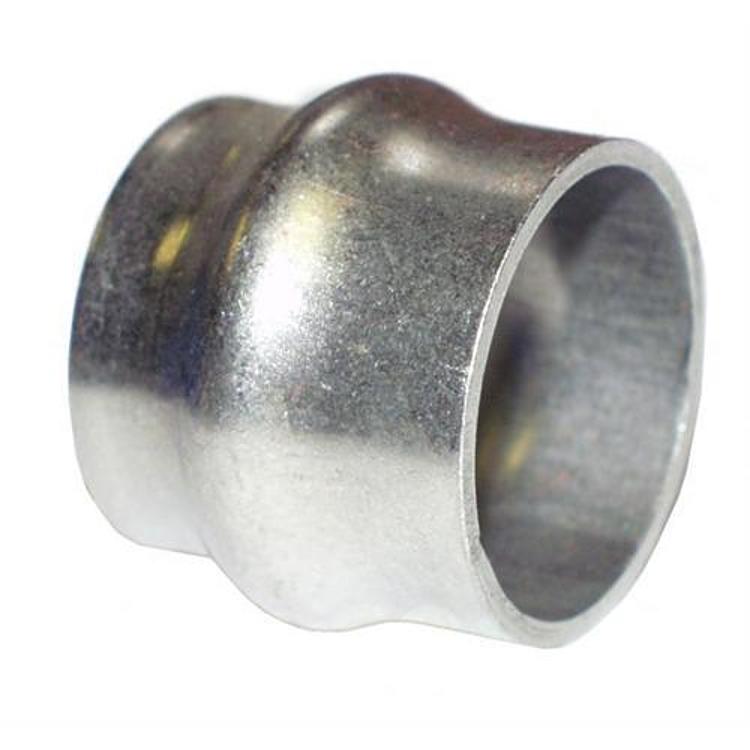

  • Master kit with bearings, shims and crush sleeve
  • Includes pinion seal, pinion nut and ring gear bolts

Description

Overview

The G2 Axle and Gear 35-2047 is a Dana 28 TTB master ring and pinion installation kit for front axles. The attributes name the axle type as Dana 28 IFS and the location as front, so the kit is aimed at a Dana 28 front axle.

The kit is a master kit with bearings. It is meant for the ring and pinion work that a front gear swap or rebuild needs, bundling the shim, seal, bearing and fastener items in one box.

Key features

  • Master kit with bearings for a Dana 28 front axle
  • Shim kit and pinion nut
  • Crush sleeve and pinion seal
  • Pinion and carrier bearings
  • Ring gear bolts with sealing and locking compounds

Front axle rebuild basics

Front axles carry steering and drive loads at the same time, so the ring and pinion must be set with care for backlash and bearing preload. Pinion depth controls how the teeth meet, while carrier preload keeps the carrier bearings snug without binding. Check each setting in order and keep notes on shim thickness as you go.

The pinion seal and yoke deserve attention during a front gear swap. A worn yoke can leak or damage a new seal early, so inspect the surface for grooves before installing the seal. Replace the pinion nut and crush sleeve together, since both are compressed during setup and do not reliably hold their preload when reused.

  • Inspect the pinion yoke surface
  • Keep shim thickness notes during setup
  • Replace the pinion nut and crush sleeve together

Specifications

Brand G2 Axle and Gear
Part number 35-2047
UPC 631410095975
Kit type Master kit with bearings
Axle location Front
Axle type Dana 28 IFS
Axle manufacturer Dana

Vehicle fitment

No vehicle years or models are named. Confirm the front Dana 28 IFS axle and your vehicle’s year, model and trim before ordering.

Confirm your vehicle’s year, model and trim before ordering.

Installation notes

Front ring and pinion setup, including pinion depth and preload, is best done by a gear shop. The gear marking compound in the kit supports checking contact after the gears are set.

What’s included

Packed with the kit: Loctite, silicone sealer, gear marking compound, ring gear bolts, a pinion nut, a shim kit, a crush sleeve, a pinion seal, and both pinion and carrier bearings.

Not included: A ring and pinion gear set is not part of the listed contents.

SKU: G/235-2047 Category:

Specification

Shipping weight 7.00 lbs
Package dimensions 12.90 × 12.80 × 3.10 in
brands

Questions & Answers

Will the G2 35-2047 fit a Dana 28 front axle?

The attributes list the axle type as Dana 28 IFS with a front location, so the kit is made for that axle. No vehicle years or models are given, so match the axle type to your front axle before ordering.

Is this the TTB version?

Yes. It is a Dana 28 TTB master ring and pinion installation kit, made for the Dana 28 IFS axle type. Confirm the axle type matches your front axle before ordering.

What does the kit include?

The kit includes a shim kit, pinion nut, crush sleeve, pinion seal, pinion and carrier bearings, ring gear bolts, silicone sealer, Loctite and gear marking compound. A gear set is not part of the kit.

Why check the pinion yoke after a front gear swap?

A worn yoke can leak or damage a new pinion seal early. Inspect the yoke surface for grooves and replace it if it is scored, then install the new seal with the new pinion nut in place.
