G2 Dana 70 Master Ring and Pinion Installation Kit – 35-2035

G2 Axle and Gear

$163.05Currently unavailable
Buy on Amazon

See similar parts on Amazon

Price and availability as of Nov 18, 2026 7:50 AM MST, from Amazon.com, and subject to change. The Amazon listing has the current details.

Check out with your Amazon account. Amazon handles delivery and returns.

Slickrock 4X4 is a participant in the Amazon Associates Program. As an Amazon Associate we earn from qualifying purchases.

  • G2 Axle and Gear 35-2035 master ring and pinion install kit for Dana 70 rear axles
  • Attribute lists Dana as the axle manufacturer and Dana 70 as the axle type
  • Master kit with pinion and carrier bearings, shims and crush sleeve
  • Ring gear bolts, silicone sealer, Loctite and gear marking compound included

Description

Overview

The G2 Axle and Gear 35-2035 is a master ring and pinion installation kit for the Dana 70 rear axle. Its attributes list Dana as the axle manufacturer and Dana 70 as the axle type. The kit groups the bearings, shim kit, pinion nut, crush sleeve, pinion seal, ring gear bolts and assembly compounds used when a Dana 70 ring and pinion is replaced.

Key features

  • Master kit with pinion and carrier bearings

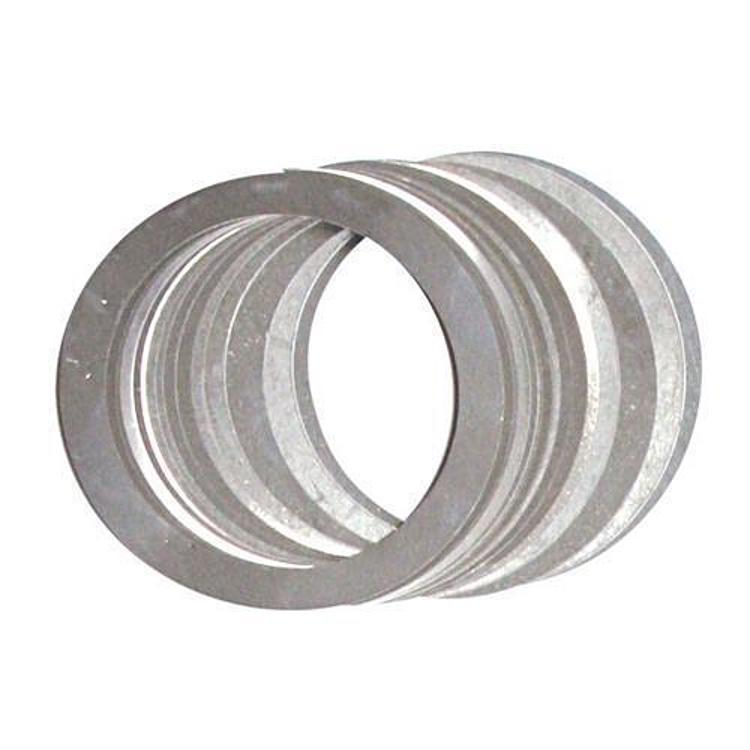

  • Shim kit with crush sleeve and pinion nut
  • Pinion seal for the pinion bore
  • Ring gear bolts with silicone sealer, Loctite and gear marking compound

Dana 70 setup considerations

The Dana 70 is a heavy-duty rear axle, so the housing, bearing seats and pinion bore carry significant load over time. A rebuild is a good moment to inspect the carrier, the axle shafts and the pinion bearing journal for wear, since these parts are often replaced together. Note the original shim pack when disassembling, because it gives a starting point for setting pinion depth.

Carrier preload and pinion preload are set with the crush sleeve and shims, and tooth contact is checked with gear marking compound before the axle returns to service. Work slowly and recheck measurements after each change. After assembly, a short break-in period with gentle driving lets the new gears settle and gives time to check for leaks and noise.

  • Inspect the carrier and bearing seats
  • Keep the original shim pack for reference
  • Check fluid level after the break-in period

Specifications

Brand G2 Axle and Gear
Part number 35-2035
UPC 631410095852
Axle manufacturer Dana
Axle type Dana 70
Axle location Rear
Kit type Master Kit With Bearings

Vehicle fitment

No vehicle, model or year is named for this kit. It is matched to the Dana 70 rear axle, so fit depends on whether your vehicle carries that axle.

Dana 70 is an axle name, not a vehicle. Verify the axle and your vehicle’s year, model and trim before buying.

Installation notes

Dana 70 gear setup involves pinion depth and carrier preload measurements with the shims, so professional setup and a break-in check after assembly are advisable.

What’s included

  • Pinion and carrier bearings
  • Shim kit
  • Crush sleeve
  • Pinion nut
  • Pinion seal
  • Ring gear bolts
  • Silicone sealer, Loctite and gear marking compound

Not included: the ring gear and pinion pair; the kit supports that set rather than replacing it.

SKU: G/235-2035 Category:

Specification

Shipping weight 7.00 lbs
Package dimensions 12.90 × 12.80 × 3.10 in
brands

Questions & Answers

Does the 35-2035 kit fit a Dana 70 rear axle?

Yes, it is built for the Dana 70 rear axle, the axle type and location shown. Confirm the axle and your vehicle's year, model and trim before ordering.

Which bearings are in part number 35-2035?

The kit contains pinion and carrier bearings along with the shim kit, crush sleeve, pinion nut, pinion seal and ring gear bolts. Compare the bearings with the old parts before installing.

Does the 35-2035 include a ring gear and pinion?

No. The kit covers the installation hardware, bearings, shims and compounds. A ring gear and pinion set must be obtained separately before a rebuild can be completed.

Is professional gear setup needed for a Dana 70 kit?

Professional setup is advisable for most people. Pinion depth, carrier preload and tooth contact all interact, and small errors can cause noise or early wear. A shop with gear setup experience can measure and confirm each step before the axle returns to service.

What signs show a rear pinion seal has started to leak?

Gear oil on the inside of the axle housing or around the pinion yoke is the usual sign. A weeping seal may also leave dirt on the housing. Replacing the seal while the gears are being serviced avoids a later teardown.
