G2 Ford 8.8″ 09 Up Late Master Ring and Pinion Installation Kit – 35-2013A

G2 Axle and Gear

Shop on Amazon

Compare current versions and compatible options on Amazon, then check out with your Amazon account.

Slickrock 4X4 is a participant in the Amazon Associates Program. As an Amazon Associate we earn from qualifying purchases.

  • Master installation kit with bearings for a Ford 8.8-inch rear axle
  • Written for the late-style 8.8-inch axle from 2009 onward
  • Part number G/235-2013A
  • Includes shims, pinion nut, crush sleeve and seals

Description

Overview

The G2 Axle and Gear Ford 8.8-inch master installation kit, part G/235-2013A, is for the rear 8.8-inch axle. The title dates the late-style axle to 2009 and up, but no truck or model is named.

A master kit gathers the install parts for a new ring and pinion, so a rebuild does not depend on a parts run for each item. It is a complete set for the 8.8-inch rear.

Key features

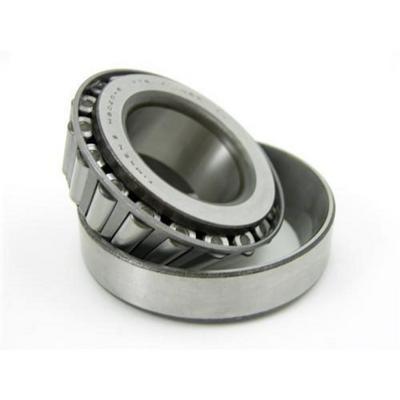

  • Master kit with bearings
  • Shim kit for setting gear depth
  • Pinion nut, crush sleeve and pinion seal
  • Ring gear bolts, silicone sealer, Loctite and gear marking compound

Why a master kit saves time

A ring and pinion change involves many small parts that are easy to overlook, including the carrier bearings, pinion bearings, shims, crush sleeve and seals. Gathering them in one kit means the job can start without a separate parts run for each item, which helps during a rebuild that is already planned around a set of gears.

Gear depth and preload are the real work. Shims are added or removed until the pinion sits correctly and the bearings carry the right preload, and the contact pattern is checked with marking compound before the axle goes back into service. Keep the shims organized as they are measured, and reuse the old ones only as a starting reference.

  • Check the 8.8-inch gear set before starting
  • Keep shims sorted by position
  • Replace the crush sleeve and pinion seal

Specifications

Brand G2 Axle and Gear
Part number G/235-2013A
Axle location Rear
Axle type Ford 8.8 inches
Kit type Master kit with bearings

Vehicle fitment

Confirm the year, model and trim of your truck before ordering, so the late-style 8.8-inch axle matches.

Installation notes

Pinion depth and carrier preload need setting with the shims and crush sleeve from this kit. Confirm the contact pattern with the marking compound before the rear axle is used.

What’s included

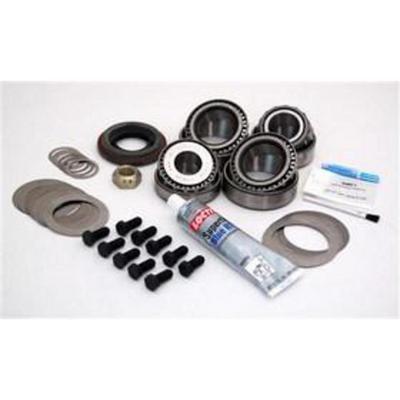

Bearings, shim kit, pinion nut, crush sleeve, pinion seal, ring gear bolts, silicone sealer, Loctite and gear marking compound.

Not included: the 8.8-inch ring and pinion gears themselves.

Questions & Answers

Does this kit fit a 2009-and-later Ford 8.8?

The kit is written for the late-style 8.8-inch rear, which the title dates to 2009 and later. Confirm your truck's year, model and trim before ordering, since the kit covers the axle rather than a specific vehicle.

Is a gear set included?

No. The kit is for installation only, so the ring and pinion gears need to be ordered separately and matched to the 8.8-inch rear before the install.

What is the 8.8-inch axle?

It is the Ford 8.8-inch rear axle. This kit is for the late-style version, and its shims and bearings set gear depth and preload for a new ring and pinion.

Are bearings and shims in the kit?

Yes. The kit includes bearings and a shim kit for setting gear depth, along with the pinion nut and crush sleeve needed for the install.

Should the pinion seal be replaced during a gear change?

Yes, it is normally replaced. The pinion is removed and reset during the job, and a new seal avoids a leak where the old seal was disturbed. Check the pinion flange for grooves that could cause a leak.
