G2 Dana 30 Master Ring and Pinion Install Kit with Eaton E-Locker – 35-2050L

G2 Axle and Gear

Shop on Amazon

Compare current versions and compatible options on Amazon, then check out with your Amazon account.

Slickrock 4X4 is a participant in the Amazon Associates Program. As an Amazon Associate we earn from qualifying purchases.

  • Master install kit for Dana 30 ring and pinion gears, part G/235-2050L
  • Includes Timken bearings, ring gear bolts, shims and a pinion seal
  • Eaton E-Locker offered with this kit
  • No vehicle models are named; match the Dana 30 axle before choosing

Description

Overview

The G2 Axle and Gear Dana 30 master ring and pinion install kit, part number G/235-2050L, supplies the bearings, bolts, shims and pinion seal used when installing ring and pinion gears in a Dana 30 axle. An Eaton E-Locker is offered alongside this kit.

G2 Axle and Gear offers its master install kits in several options for nearly four dozen axle models, so the version you choose has to match your axle housing. Universal Fit is shown for this kit, but an installation kit is tied to the axle it was made for.

Key features

  • Timken bearings included
  • Ring gear bolts and shims included
  • Pinion seal included
  • Master kit covering the installation parts for ring and pinion gears

Setup and break-in

Ring and pinion install kits carry the parts that set how the gears sit in the housing: bearings that support the pinion and carrier, shims that control spacing, and a seal that keeps lubricant in the nose of the axle. Replacing them together with the gears is common because old bearings and seals wear at a different rate than the new gears they support, and reusing them can undo a careful setup.

A locker adds its own installation steps, so plan for carrier work and check clearances before the housing goes back together. Gear mesh and preload are judged by pattern and feel, which is why a technician with gear setup experience should handle them. After assembly, keep the first miles gentle and recheck the ring gear bolt torque once the gears have run in.

Specifications

Brand G2 Axle and Gear
Part number G/235-2050L
Axle type Dana 30
Included components Timken bearings, ring gear bolts, shims, pinion seal
Locker Eaton E-Locker offered with this kit

Vehicle fitment

No vehicle list is provided for this kit. It is sized for Dana 30 axles, so confirm your housing is a Dana 30 and matches the option you select before you choose it.

Confirm your vehicle’s year, model and trim before ordering.

Installation notes

Setting gear mesh and bearing preload is specialist work. Have a shop with gear setup experience install the kit, and allow a break-in period after the new gears are set.

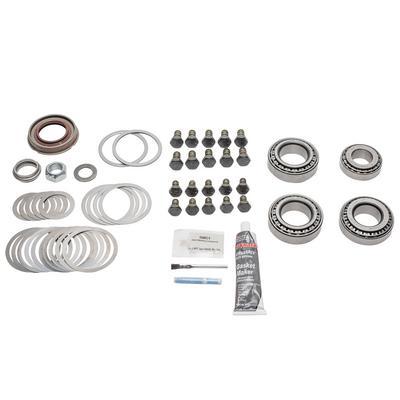

What’s included

The kit includes Timken bearings, ring gear bolts, shims and a pinion seal.

Not included: the ring and pinion gear set itself, since this kit provides the installation components.

Questions & Answers

Is G/235-2050L the ring and pinion gear set?

No. The kit supplies the install parts: Timken bearings, ring gear bolts, shims and a pinion seal. The ring and pinion gear set is a separate item to choose.

Will this Dana 30 install kit fit my vehicle?

No vehicle models or model years are named for this kit. It is made for Dana 30 axles, and G2 Axle and Gear offers the line for nearly four dozen axle models, so match the option to your axle housing before choosing it.

Is an Eaton E-Locker included with this Dana 30 kit?

An Eaton E-Locker is offered with this kit. Confirm the locker's contents and installation requirements before ordering, and match the kit to your Dana 30 housing.

Should I replace the pinion bearings when I install new gears?

Usually yes. Worn bearings can change preload and pinion depth, so fitting new bearings with new gears helps the setup hold. Check bearing condition during teardown and replace any that show roughness, pitting or play.
