FUEL Off-Road D513 Throttle, 20x9 Wheel with 6 on 135 and 6 on 5.5 Bolt Pattern – Black and Machined – D51320909850

FUEL Off-Road

Shop FUEL Off-Road Wheels 20x9 6x5.5 on Amazon

Compare current versions and compatible options on Amazon, then check out with your Amazon account.

Slickrock 4X4 is a participant in the Amazon Associates Program. As an Amazon Associate we earn from qualifying purchases.

  • FUEL Off-Road D513 Throttle 20×9 aluminum wheel, part number MHTD51320909850.
  • Two bolt patterns: 6 on 5.5 and 6 on 135.
  • 106 center bore, offset 1, backspacing 5.
  • Black and machined finish; universal fit label only.

Description

Overview

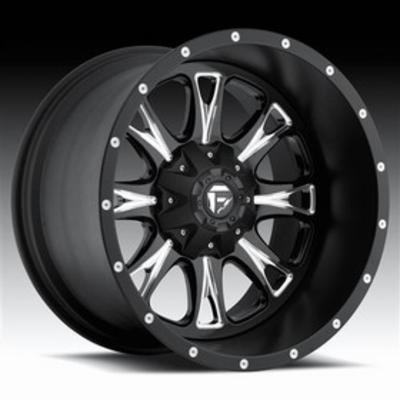

The FUEL Off-Road D513 Throttle is a 20×9 aluminum wheel with two bolt patterns, 6 on 5.5 and 6 on 135, part number MHTD51320909850. It has a black and machined finish and is marked universal fit.

Owners of 6 on 5.5 or 6 on 135 trucks and SUVs should note that the 106 center bore, offset 1 and backspacing of 5 are the numbers that decide fit. The wheel measures 20 Inches in diameter and 9 Inches wide.

Key features

  • Throttle style in a black and machined finish.
  • 20 Inches diameter and 9 Inches width.
  • Two bolt patterns: 6 on 5.5 and 6 on 135.
  • 106 center bore, offset 1 and backspacing of 5.
  • Aluminum construction.

Two bolt patterns explained

Two bolt patterns on one wheel usually mean the wheel can be mounted on either hub layout, but only one of those layouts matches a given hub at a time. The bolt circle and stud count must both match. Count the studs and measure the circle across the hub before choosing a pattern, since guesses lead to a wheel that will not seat.

Pattern choice also affects the center bore and centering. A hub-centric ring may be needed when the bore is larger than the hub, and it should sit flush before the lugs are torqued. Offset 1 and backspacing 5 decide how the wheel sits in the fender, so measure clearance once the pattern is confirmed.

  • Count studs and measure the bolt circle first
  • Confirm the center bore against the hub
  • Check inner fender and caliper clearance
  • Torque lugs in a star pattern and recheck after the first drive

Specifications

Brand FUEL Off-Road
Part number MHTD51320909850
Wheel diameter 20 Inches
Wheel width 9 Inches
Offset 1
Center bore 106
Backspacing 5
Bolt pattern 6 on 5.5/6 on 135
Style Throttle
Finish Black and Machined
Construction Aluminum

Vehicle fitment

This wheel is universal fit and is not tied to one vehicle. Two bolt patterns are available, so match the hub first.

Confirm your vehicle’s year, model and trim before ordering.

Installation notes

Measure your hub’s bolt circle and stud count before anything else. Lug seat style and center cap fit should be confirmed with an installer.

What’s included

This item is the wheel only.

Not included: any tire, lug nut or center cap, which you will need to source separately.

SKU: MHTD51320909850 Categories: ,

Questions & Answers

What is the FUEL Off-Road D513 Throttle 20x9?

It is a 20x9 aluminum Throttle wheel from FUEL Off-Road, part number MHTD51320909850, in black and machined. It lists bolt patterns of 6 on 5.5 and 6 on 135, a 106 center bore, offset 1 and backspacing 5.

Which bolt pattern does the Throttle wheel use?

It lists two patterns: 6 on 5.5 and 6 on 135. Choose the one that matches your hub before mounting, since the wheel is universal fit and no vehicle is tied to either pattern.

Does the wheel come with tires or lug nuts?

Tires, lug nuts and center caps are not part of this wheel. Plan to add those yourself and check what your mounting needs before you start.

What are the offset and center bore?

The offset is 1 and the center bore is 106, with backspacing of 5. These values sit alongside a 20 Inches diameter and 9 Inches width in the specifications.

Can a wheel with two bolt patterns be adapted to a different hub?

No. Bolt circle and stud count must match the hub, so a wheel cannot be forced onto the wrong pattern. Wheel spacers and adapters exist for other uses, but they change offset and load, so confirm fit first.
