Overview
The FUEL Off-Road D525 Revolver 18×9 is an 18-inch aluminum wheel, 9 inches wide, carrying part number MHTD52518902645. It is offered for the 5 on 4.5 and 5 on 5 bolt patterns, and FUEL Off-Road labels it universal fit, so the bolt pattern and offset must be confirmed before mounting.

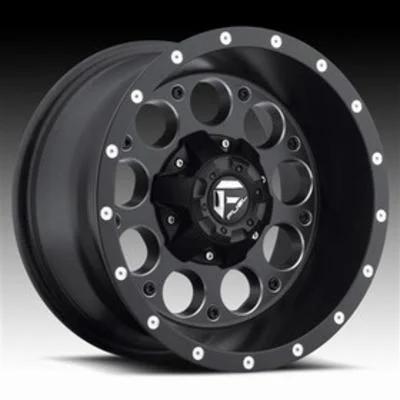

The Revolver design comes in a black milled finish. The wheel is set at a -12 offset with 4.5 backspacing, and its 78 center bore is the hub opening it centers on. Those three measurements decide how the wheel sits against your hub and brake components.
Key features
- Revolver spoke design with a black milled finish
- Aluminum construction, 18-inch diameter and 9-inch width
- Dual bolt pattern: 5 on 4.5 and 5 on 5
- Offset -12 and backspacing 4.5
- Center bore listed at 78
Dual pattern fitment notes
A wheel with two bolt patterns is only useful once you know which one your hub uses. The two patterns share the same wheel face, but a mismatch means the studs will not seat correctly, so the lug holes must line up before anything else is checked. Treat pattern and center bore as the first pass, and move to offset and backspacing only after those two match.
Offset and backspacing decide where the tire sits relative to the fender and suspension, so a dual-pattern wheel still needs clearance checks with the tire you plan to run. Keep the lug seat type in mind when buying fasteners, and confirm the nuts suit the wheel before installation. After mounting, recheck torque after the first drives and inspect the spokes for cracks.
- Confirm the pattern before anything else
- Measure clearance with the planned tire
- Inspect spokes after rough off-road use
Specifications
| Brand | FUEL Off-Road |
|---|---|
| Part number | MHTD52518902645 |
| Model | D525 Revolver |
| Diameter | 18 inches |
| Width | 9 inches |
| Bolt pattern | 5 on 4.5 and 5 on 5 |
| Center bore | 78 |
| Offset | -12 |
| Backspacing | 4.5 |
| Finish | Black milled |
| Construction | Aluminum |
| Fitment label | Universal fit |
Vehicle fitment
No vehicle is named for this wheel, so it is not tied to a particular year, make or model. It is universal fit, which means the hub has to be matched by hand.
Compare the 5 on 4.5 and 5 on 5 bolt patterns, 78 center bore and -12 offset with your hub before ordering. Confirm your vehicle’s year, model and trim before ordering.
What’s included
The wheel is the only item in this package. Tires and hardware need a separate purchase.
Not included: tires and hardware are outside this item and need to be sourced separately.
