Overview

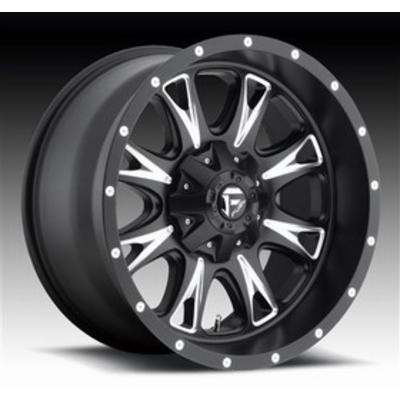

The FUEL Off-Road Throttle 17×9 wheel, part number MHTD51317908250, is a 17-inch aluminum wheel, 9 inches wide, drilled 8 on 6.5 and finished in black milled. It carries a 125 center bore and an offset of 1, which matter more than the styling when you match a wheel to a hub.
Backspacing is 5.01. No vehicle application is named, so measure your hub and compare the bolt pattern and center bore before you order.
Key features
- 17-inch diameter and 9-inch width
- Single 8 on 6.5 bolt pattern
- 125 center bore
- Offset of 1 and backspacing of 5.01
- Aluminum construction with a black milled finish
- Throttle style
Choosing a hub match
A wheel’s bolt pattern and center bore decide whether it seats on a hub, and they matter more than styling. Start by counting the lugs and measuring the spacing between them. The pattern must match exactly, because a wheel drilled for one layout cannot be forced onto another without risking the studs and the seat.
The center bore works alongside the pattern. The hub’s centering diameter should match or be smaller than the bore, and a hub-centric ring closes any gap so the load rests on the hub instead of the lug studs. Choose rings sized to your hub and keep them clean so the wheel sits flat when the lugs are torqued.
Offset and backspacing control where the tire sits in the fender and how close it gets to the suspension. Check those figures against your build before buying tires, especially if you plan to run larger tires later.
- Count lugs and measure lug spacing before ordering
- Compare the center bore with the hub centering diameter
- Use a hub-centric ring when the bore is larger than the hub
- Re-torque lug nuts after the first drive
Specifications
| Brand | FUEL Off-Road |
|---|---|
| Part number | MHTD51317908250 |
| Style | Throttle |
| Construction | Aluminum |
| Finish | Black, milled |
| Wheel diameter | 17 inches |
| Wheel width | 9 inches |
| Offset | 1 |
| Backspacing | 5.01 |
| Center bore | 125 |
| Bolt pattern | 8 on 6.5 |
| Fitment label | Universal Fit |
Vehicle fitment
This wheel has no vehicle application attached. Its 8 on 6.5 pattern suits only hubs drilled to match, so measure your hub and confirm fit for your vehicle’s year, model and trim before ordering.
Confirm your vehicle’s year, model and trim before ordering.
Installation notes
A center bore larger than your hub’s centering diameter needs a hub-centric ring to seat the wheel properly. Compare the 125 bore with your hub before mounting.
What’s included
Lug nuts, center caps and valve stems are not included with the wheel.
