FUEL Off-Road Coupler, 20x10 Wheel with 5 on 150 and 5 on 5.5 Bolt Pattern – Black Machined – D55620007050

FUEL Off-Road

Shop FUEL Off-Road Wheels 20x10 5x5.5 on Amazon

Compare current versions and compatible options on Amazon, then check out with your Amazon account.

Slickrock 4X4 is a participant in the Amazon Associates Program. As an Amazon Associate we earn from qualifying purchases.

  • FUEL Off-Road 20×10 Coupler spoke wheel, part number MHTD55620007050
  • Bolt patterns 5 on 5.5 and 5 on 150
  • Offset -12, backspacing 5, center bore 110
  • Black machined aluminum, 10-inch width
  • No vehicle fitment listed

Description

Overview

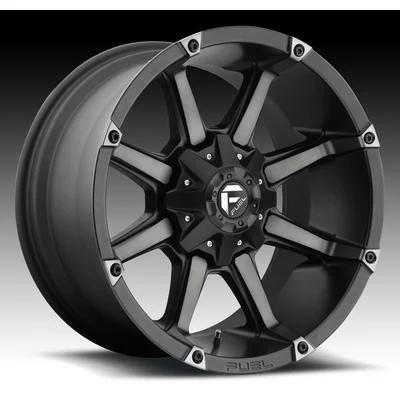

The FUEL Off-Road 20×10 Coupler wheel, part number MHTD55620007050, is a 20-inch aluminum spoke wheel with a 10-inch width and black machined finish. Its two listed bolt patterns are 5 on 5.5 and 5 on 150, which covers five-lug hubs of either pattern once the hub is measured.

The range covers many bolt pattern and offset mixes, and this 20×10 version has a -12 offset, 5 backspacing and a 110 center bore. No vehicle is confirmed for it, so measure your hub and judge fit from these figures.

Key features

  • 20 by 10 inch aluminum spoke wheel
  • Black machined finish
  • Bolt pattern entries of 5 on 5.5 and 5 on 150
  • Offset of -12 with backspacing of 5
  • Center bore of 110
  • Coupler model name from FUEL Off-Road

Measuring your hub first

Before a 20-inch wheel goes on, the hub has to match it in three places: the stud count and spacing, the center bore and the offset. Measure the pattern across the studs or lug holes, then compare the center bore with the hub diameter. A bore smaller than the hub will not seat, and a larger bore needs a hub-centric ring to center the wheel. Offset sets where the mounting face sits, which affects clearance to brake calipers, control arms and the inner fender.

Width changes how the tire sits as well. A 10-inch wide wheel with a negative offset pushes more of the tire outward, so check fender room and steering lock before fitting larger tires. Confirm the lug seat type matches your studs, since a mismatched seat can loosen under load. Re-torque the nuts after the first few drives.

Specifications

Brand FUEL Off-Road
Part number MHTD55620007050
Model Coupler
Wheel diameter 20 Inches
Wheel width 10 Inches
Style Spoke
Finish Black Machined
Construction Aluminum
Bolt pattern 5 on 5.5
Bolt pattern 2 5 on 150
Offset -12
Backspacing 5
Center bore 110

Vehicle fitment

No vehicle is confirmed for this wheel. Match the year, model and trim of your truck or SUV before buying, using the bolt pattern and center bore as the deciding checks.

Confirm your vehicle’s bolt pattern, center bore and offset before ordering.

Installation notes

A 110 center bore must be at least as large as the hub it mounts on. If your hub is smaller, a hub-centric ring is the usual solution, and brake and fender clearance should be measured with the -12 offset in mind.

What’s included

Only the wheel is covered here. Tires, lug nuts and center caps are absent, so inventory the delivery against your installation plan.

SKU: MHTD55620007050 Categories: ,

Questions & Answers

What size is the FUEL Off-Road 20x10 Coupler MHTD55620007050?

It is a 20-inch diameter wheel with a 10-inch width, in black machined aluminum with a spoke style. The bolt patterns listed are 5 on 5.5 and 5 on 150, with an offset of -12 and a center bore of 110.

Is a vehicle fitment given for this wheel?

No vehicle is named. The fitment tag reads universal fit, but no year, make, model or trim is given, so confirm the hub fit yourself using the offset, center bore and bolt pattern in the specifications table.

Does the wheel come with lug nuts, center caps or tires?

Those items are not part of this wheel. Buy any missing hardware and tires separately, and confirm the hardware suits your studs before mounting.

Do I need a hub-centric ring with this wheel?

It depends on the hub. If the hub is larger than the 110 center bore, the wheel will not seat and cannot be mounted. If the hub is smaller, a hub-centric ring can center the wheel. Measure the hub diameter before ordering.
