Overview

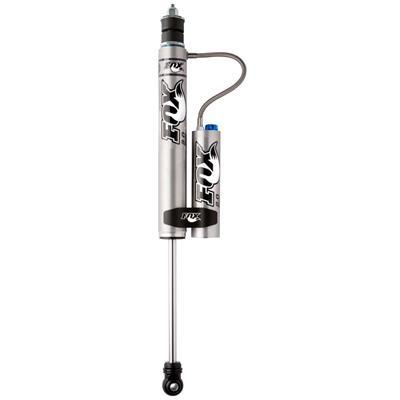

The FOX985-26-192 is a 2.0 Performance Series smooth body reservoir shock with a DSC adjuster. It fits the 2001 to 2019 Silverado 2500 HD and Sierra 2500 HD, and the 2007 to 2019 Silverado 3500 HD and Sierra 3500 HD, in the trims named.
The shock is a rear unit. Confirm the position against the original shock before ordering.
The clear anodized aluminum body is designed to dissipate heat faster than a steel body. The external reservoir adds oil and nitrogen capacity in a bolt-on package.
The black anodized reservoir clamp and other components are CNC machined from 6061-T6 aluminum. The high flow damping piston uses application specific valving to give a predictable ride.
The shock has eyelet top and bottom mounts, a 2.0 inch body diameter, a reservoir shock type and a gas charge, with a billet reservoir clamp included.
Key features
- Eyelet top and bottom mounts
- 2.0 inch body diameter
- External reservoir with billet clamp included
- Clear anodized aluminum body
- CNC machined 6061-T6 aluminum clamp and components
- High flow damping piston with application specific valving
Heavy-duty payload and heat
HD trucks from this range are built for heavy towing and hauling, so their shocks handle more sustained load than those on light-duty trucks. A reservoir design gives the oil and gas separate space to work, which helps damping stay consistent when the shock heats up on long grades. Choose a unit whose length and mount type match the truck’s suspension, because payload and ride height both affect performance.
Keep the billet clamp tight and the body free of mud, since restricted airflow can push operating temperature higher. Check the shock for leaks around the body and reservoir, and listen for knocking over bumps. Heavy-duty use wears shocks faster, so inspect them at regular service intervals and replace both rear units together.
- Match length and mounts to the truck’s suspension
- Keep the billet clamp tight and airflow clear
- Replace both rear units together
Specifications
| Brand | FOX |
|---|---|
| Part number | FOX985-26-192 |
| Series | 2.0 Performance Series |
| Position | Rear (one location label reads front) |
| Shock type | Reservoir |
| Top mount | Eyelet |
| Bottom mount | Eyelet |
| Body diameter | 2.0 inches |
| Charge | Gas charged |
| Reservoir clamp | Billet, included |
| Adjuster | DSC (per title) |
| Fitment type | Direct fit |
Vehicle fitment
It fits the 2001 to 2019 Chevrolet Silverado 2500 HD (Base, High Country, LS, LT, LTZ and WT), the 2007 to 2019 Silverado 3500 HD (High Country, LT, LTZ and WT), the 2001 to 2019 GMC Sierra 2500 HD (Base, Denali, SL, SLE, SLT and WT) and the 2007 to 2019 Sierra 3500 HD (Base, Denali, SLE, SLT and WT).
The list covers the HD trucks named, in the years shown for each model. Confirm your vehicle’s year, model and trim before ordering.
Installation notes
The billet clamp is included, so plan the reservoir location. Compare the eyelet mounts with the original shock, and confirm the position before fitting. Work on a securely supported vehicle.
What’s included
One reservoir shock with billet reservoir clamp.
