Overview
The Fab Fours Vengeance GC15-D3452-1 is a front bumper with a Pre-Runner grille guard for the GMC Canyon, listed by Fab Fours for model years 2015 to 2018. It is a steel bumper with a 2 stage black powder coat from the Vengeance Series of lightweight bumpers.

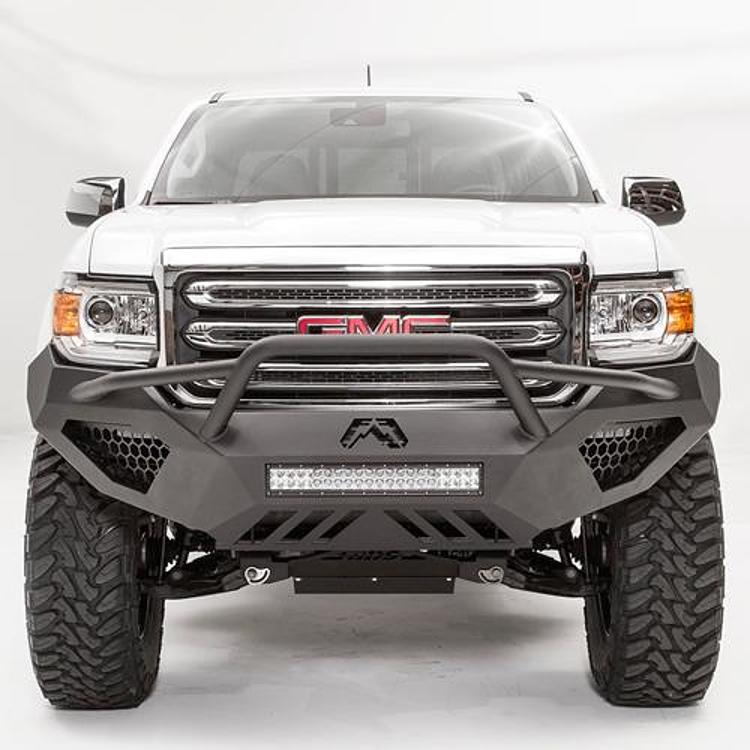

The fit is high and tight to the contours of the vehicle. The center cutout takes a Rigid Industries 20-inch LED light bar, each side has mounting options for two 2×2 Dually lights, and a lower cutout provides airflow. The light bar and lights are not included.
The bumper is a complete bolt-on unit: the provided brackets tie directly to the frame. Fab Fours gives the weight as 65 lbs without a guard and 75 lbs with the Pre-Runner guard.
Key features
- Pre-Runner guard front bumper for the GMC Canyon
- Center mount for a Rigid Industries 20-inch LED light bar (not included)
- Side mounting options for two 2×2 Dually lights per side (lights not included)
- Lower cutout for maximum airflow
- Complete bolt-on design; provided brackets tie directly to the frame
- 11 ga. U.S. steel with a 2 stage black powder coat
- Weighs 75 lbs with the Pre-Runner guard.
- Made in the USA
Light bar and wiring planning
A bumper with a center light bar cutout and side light mounts needs planning for wiring, switching and the position of each light. Run the wiring away from hot exhaust parts and moving suspension components, and use a fused circuit sized for the lights. Connectors should be sealed, since mud, water and road salt can corrode bare terminals over time.
Light position affects how well the lights work on the trail and on the road. Higher lights reach farther but can cause glare for oncoming traffic, so consider switches that let you turn them off quickly. Check the light aim after installation and after rough trail use, and keep the lens clear of mud to keep the beam even.
- Use sealed connectors for all lights
- Aim lights after installation
- Clean lenses to keep the beam even
Specifications
| Brand | Fab Fours |
|---|---|
| Part number | GC15-D3452-1 |
| UPC | 5810113230 |
| Product type | Front bumper with Pre-Runner grille guard (Vengeance Series) |
| Position | Front |
| Fitment type | Direct fit |
| Material | Steel, 11 ga. U.S. steel |
| Finish | 2 stage black powder coat |
| Weight | 75 lbs with Pre-Runner guard (65 lbs without guard) |
| Light bar cutout | Center mount for a Rigid Industries 20-inch LED light bar |
| Side light mounts | Two 2×2 Dually lights per side |
Vehicle fitment
It fits the 2015 to 2018 GMC Canyon. Verify your truck’s model year and trim before placing an order.
It is not made for the Chevrolet Colorado, the earlier GMC Canyon or the full-size Sierra. Confirm your vehicle’s year, model and trim before ordering.
Installation notes
This is a bolt-on bumper that uses the brackets provided to tie into the frame. The center light bar and side lights are separate and need their own wiring.
What’s included
- Front bumper with Pre-Runner grille guard
- Frame-mounting brackets
- Center light bar bracket
Not included: The Rigid Industries LED light bar and the Dually lights.
