Overview

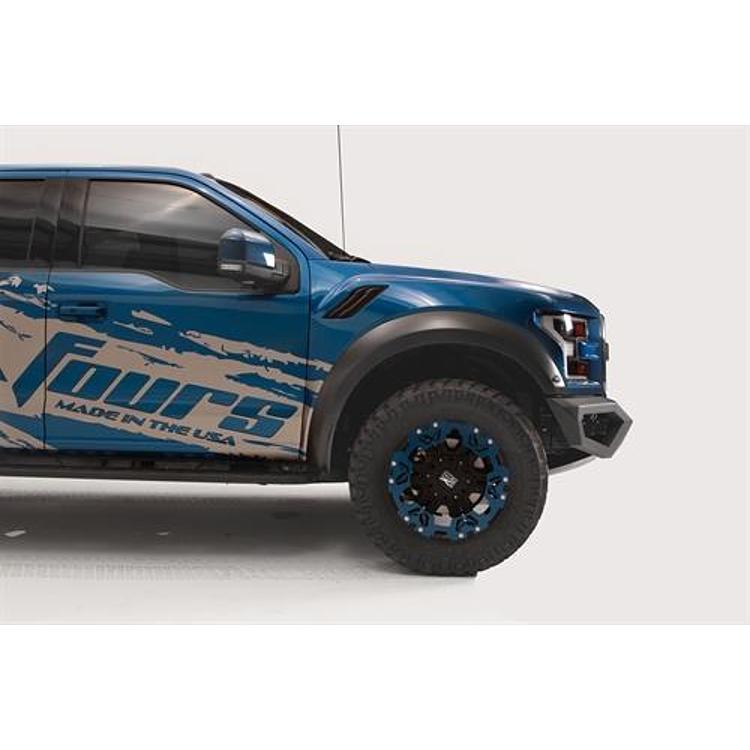

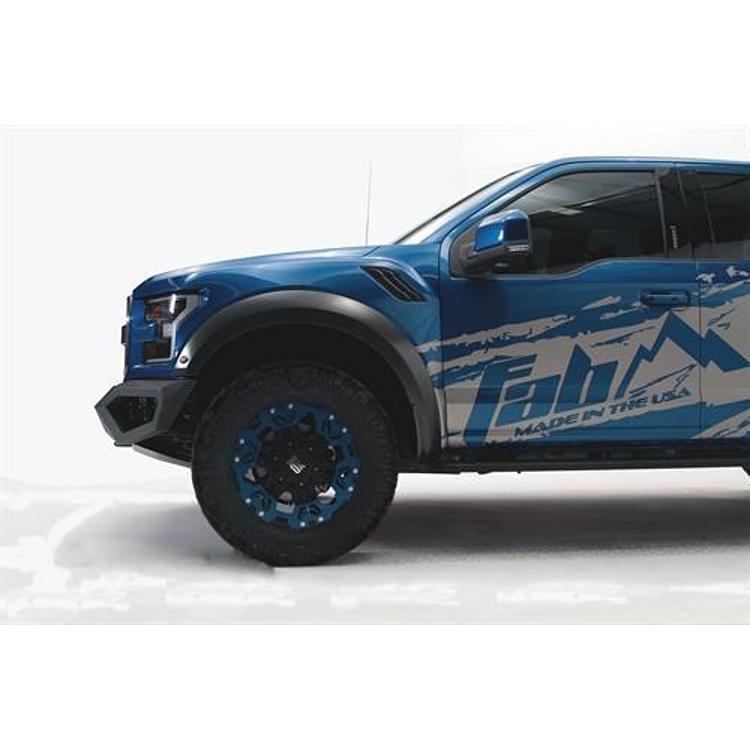

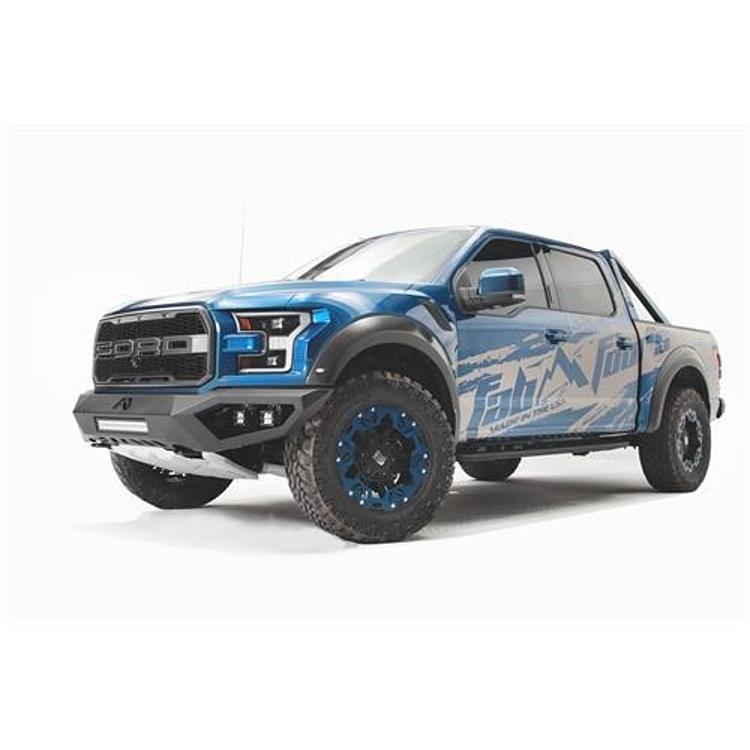

The Fab Fours FF17-D4351-1 is a Vengeance front bumper in matte black powder coat for 2017 to 2018 Ford F-150 trucks. It also fits the 2017 to 2018 Ford Raptor.

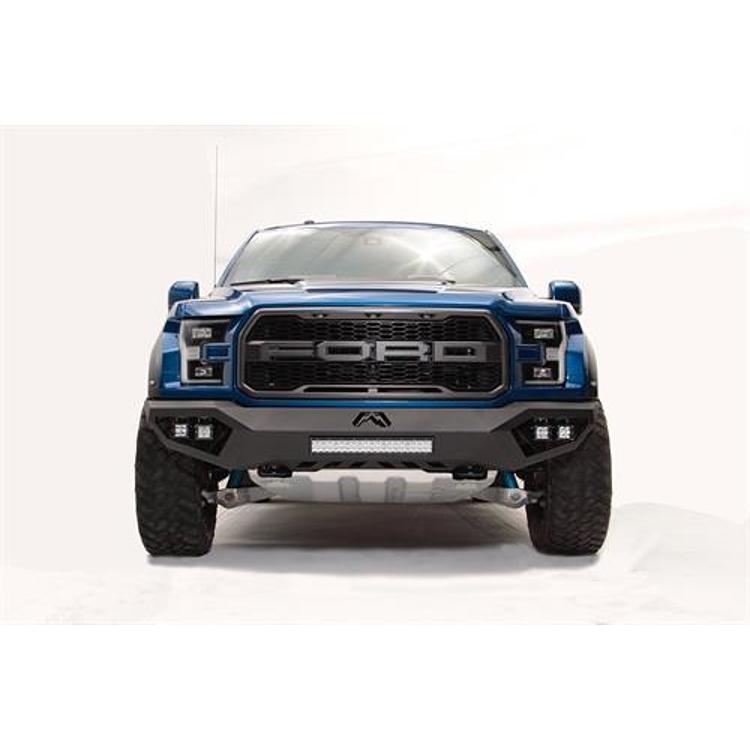

Fab Fours builds the Vengeance bumper to be lightweight, describing it at 75 lb, and engineers it to retain factory technology features including Adaptive Cruise Control and Park Assist when used with an optional bracket. It has a center cutout for a 20-inch LED light bar and side mounts for two Rigid Industries Dually lights.
The fit is high and tight, and the lower cutouts provide airflow while giving an aggressive look on and off the road. The bumper comes in a no guard or pre-runner guard option, built from steel to suit the front of the vehicle.
Key features
- Fits the 2017 to 2018 Ford Raptor.
- Lightweight: 65 lb with no guard, 75 lb with the pre-runner guard
- Center mount for a Rigid Industries 20-inch LED light bar (not included)
- Side mounting for two 2×2 Dually lights (lights not included)
- Optional mesh inserts for the center cutout (M2450-1) and side openings (M3950-1)
- Lower cutout for maximum airflow
- Optional M3850-1 relocation bracket to retain factory technology features
- Two-stage matte black powder coat on 11 ga. U.S. steel
Lights and mesh options
A front bumper with a center cutout and side mounts gives several lighting choices, but each light position needs its own wiring path and aim. Route the harness through the bumper before the lights are fixed in place, and keep it clear of the grille, radiator fan and moving parts. Check the beam height after mounting so the light pattern is not blocked by the bumper edges.
Mesh inserts fill the openings without blocking the whole face of the bumper. They keep larger debris out while letting air reach the cooling components behind. In muddy or dusty conditions, check the mesh for packed material and clean it with a soft brush and water, since trapped mud can reduce airflow over time.
The lower cutouts are open to road spray and trail debris, so the inside surfaces of the bumper and its brackets are exposed to moisture. Rinse the underside after wet trips, look for early rust on the bolt holes and touch up chips in the matte black finish before corrosion starts. Re-check the frame bolts after the first few trips on rough roads.
- Route light wiring before fixing lights
- Clean mesh inserts after muddy trips
- Check frame bolts after rough roads
Specifications
| Brand | Fab Fours |
|---|---|
| Part number | FF17-D4351-1 |
| UPC | 5810114626 |
| Type | Vengeance front bumper |
| Position | Front |
| Material | Steel, 11 ga. U.S. steel |
| Finish | Two-stage matte black powder coat |
| Fit type | Direct fit |
| Weight | Up to 75 lb |
| Optional parts | M2450-1 center mesh, M3950-1 side mesh, M3850-1 relocation bracket |
Vehicle fitment
It is a direct fit for the 2017 to 2018 Ford F-150 Raptor.
The 2015 to 2017 and the 2009 to 2014 F-150 trucks have their own part numbers and are not covered here. Confirm your vehicle’s year, model and trim before ordering.
Installation notes
The bumper is bolt-on, with brackets that tie to the frame. Use the optional M3850-1 bracket to keep Adaptive Cruise Control and Park Assist, and add the mesh inserts only if you want them.
What’s included
- Vengeance front bumper in matte black powder coat
- Frame brackets
Not included: The LED light bar, the Dually lights, the mesh inserts and the M3850-1 relocation bracket.
