Overview

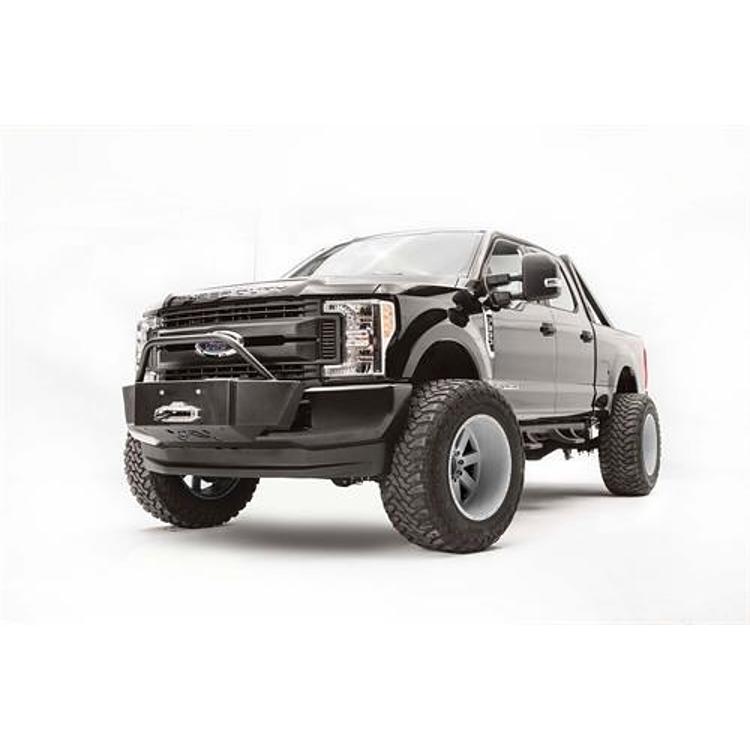

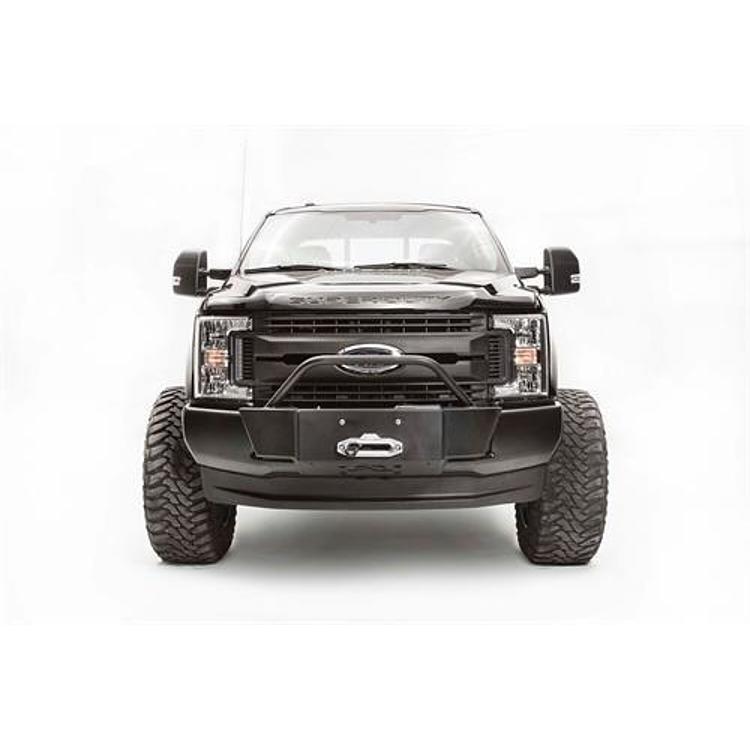

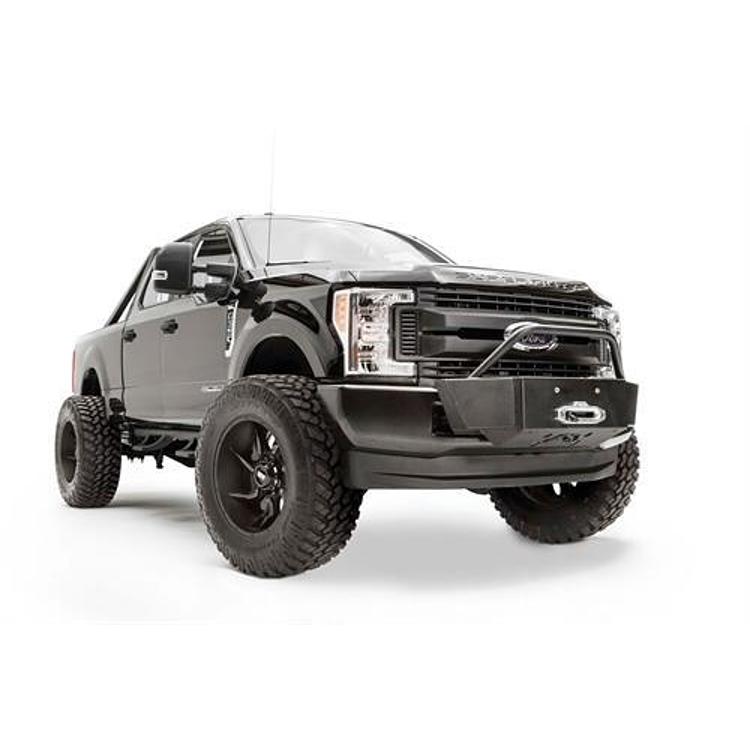

The Fab Fours FS17-N4160-1 is a black powder coat, one-piece winch mount for the 2017–2018 Ford F-250 and F-350 Super Duty. It is a complete bolt-on front bumper with brackets that tie directly to the frame. It slides through the factory tow hook slots, with no separate parts to put together.
The mount holds winches of 12,000 lb or smaller. Warn Zeon 8, 9 or 10 and Warn 9.5 CTI are the winches to pair with it on small frames. The -1 suffix marks the two stage matte black powder coat finish.
Key features
- Holds winches of 12,000 lb or smaller
- One-piece, fully welded construction
- Slips through factory tow hook slots straight to the frame
- Complete bolt-on front bumper with provided brackets
- 3/8 inch U.S. steel construction
- Two stage matte black powder coat
- Made in the USA
Choosing a winch
A winch mount is rated for a maximum winch weight, and that rating should be the first check. This mount is designed for winches of 12,000 lb or smaller, which covers the smaller winch styles used on Super Duty front ends. Heavier winches add load that the mount was not designed to carry, so the winch choice should be settled before buying the mount.
Winch accessories are usually bought separately. D-ring mounts and light mounts are not included, so budget for them if you plan to use them. Check that the winch cable or rope length and the fairlead fit the mount layout before installing, and confirm bumper and front sensor clearance after mounting.
- Match the winch to its weight rating
- Plan separate D-ring and light mounts
- Check rope or cable length
- Confirm front sensor clearance
Specifications
| Brand | Fab Fours |
|---|---|
| Part number | FS17-N4160-1 |
| UPC | 5810112677 |
| Material | 3/8 inch U.S. steel |
| Finish | Black, 2 stage matte black powder coat |
| Winch capacity | 12,000 lb or smaller |
| Construction | One piece, fully welded |
| Recommended winches (small frames) | Warn Zeon 8, 9 or 10; Warn 9.5 CTI |
| Winch mount included | Yes |
| D-ring mount included | No |
| Light mounts included | No |
| Width | Stubby |
| Made in | USA |
Vehicle fitment
It fits the 2017–2018 Ford F-250 and F-350 Super Duty in King Ranch, Lariat, Limited, Platinum, XL and XLT trims.
The 2011–2015 Super Duty trucks and the F-150 are not on this list. Confirm your vehicle’s year, model and trim before ordering.
Installation notes
Fitting uses the factory tow hook slots, and the provided brackets tie to the frame. D-ring mounts and light mounts are not included, so plan separate parts for those accessories.
What’s included
Winch mount with provided brackets that tie directly to the frame.
Not included: D-ring mount, light mounts and a winch.
