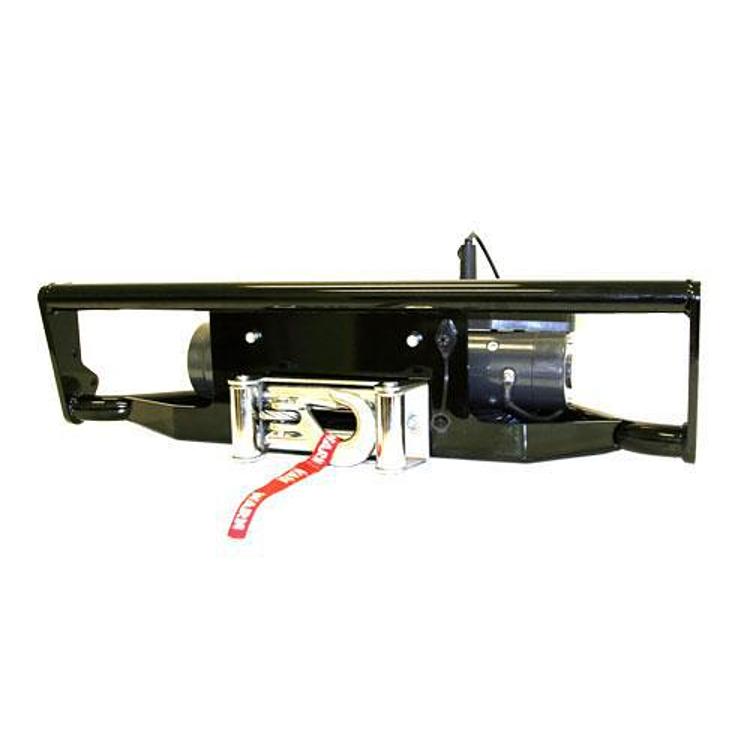

Fab Fours Ranch Winch Tray (Black) – M1650-1

Fab Fours

$208.63In stock
Buy on Amazon

See similar parts on Amazon

Price and availability as of Nov 17, 2026 10:20 PM MST, from Amazon.com, and subject to change. The Amazon listing has the current details.

Check out with your Amazon account. Amazon handles delivery and returns.

Slickrock 4X4 is a participant in the Amazon Associates Program. As an Amazon Associate we earn from qualifying purchases.

  • Fab Fours Ranch winch tray, part number M1650-1, black steel
  • Accepts winches up to 16,500 lb or smaller
  • Pre-drilled for WARN winch remote relocation kit

Description

Overview

The Fab Fours Ranch Winch Tray (part number M1650-1) is a black steel winch tray for Fab Fours Black Steel 3/4 and 1 ton bumpers.

It accepts a winch up to 16,500 lb or smaller and is built from 1/2-inch and 1/4-inch plate steel. The tray is pre-drilled for the WARN winch remote relocation kit.

Key features

  • Accepts up to a 16,500 lb winch or smaller
  • Built from 1/2-inch and 1/4-inch plate steel
  • Pre-drilled for WARN winch remote relocation kit
  • Fits Black Steel 3/4 and 1 ton bumpers

Matching a winch to the tray

The most important check is whether the winch fits the tray’s rated size. A winch heavier than the tray is built for adds load to the bumper and mounting bolts, so compare the winch’s rated pull and body dimensions with the tray before buying. Make sure the drum, motor and fairlead all clear the tray and the bumper face.

Plan the remote mount before the winch goes on. Solenoid and cable routing should keep wiring away from heat, moving linkage and sharp edges. Steel trays rust where bare plate is exposed, so touch up any drilled holes or scratched areas with paint and check fasteners after rough trail use.

  • Confirm winch body size against the tray
  • Route the remote cable away from heat and moving parts
  • Keep the winch at or below the tray’s capacity
  • Touch up drilled holes to limit rust

Specifications

Brand Fab Fours
Part number M1650-1
UPC 5810102111
Material 1/2-inch and 1/4-inch plate steel
Finish Black
Winch capacity Up to 16,500 lb or smaller
OE bumper Not OE bumper
Remote kit WARN winch remote relocation kit, WARN part 14867

Vehicle fitment

No vehicle year, make or model is named. The tray is matched to bumper class, so check your bumper’s size rating before fitting.

Installation notes

The tray is pre-drilled for the WARN winch remote relocation kit, so plan the remote mount with that kit in mind.

What’s included

The winch tray only.

Not included: winch, bumper and WARN winch remote relocation kit (part 14867).

SKU: FFIM1650-1 Category:

Specification

Shipping weight 70.00 lbs
Package dimensions 41.00 × 12.00 × 12.00 in
brands

Questions & Answers

What size winch does the M1650-1 tray accept?

The tray accepts a winch up to 16,500 lb or smaller. It is made from 1/2-inch and 1/4-inch plate steel and fits Black Steel 3/4 and 1 ton bumpers.

Is the tray pre-drilled for a WARN remote?

Yes. The tray is pre-drilled for the WARN winch remote relocation kit, WARN part number 14867. Plan to buy that kit separately, since it is not included with the tray.

Does this tray fit a specific Jeep or truck?

It fits Black Steel 3/4 and 1 ton bumpers rather than one vehicle, so match your bumper class before installing the tray.

How should I check a winch against the tray?

Compare the winch's rated capacity and body size with the tray before you buy. Keep the winch at or below the tray's capacity, and confirm the cable, fairlead and mounting bolts clear the bumper. Heavier winches add load to the bumper, so check the bumper's rating too.
