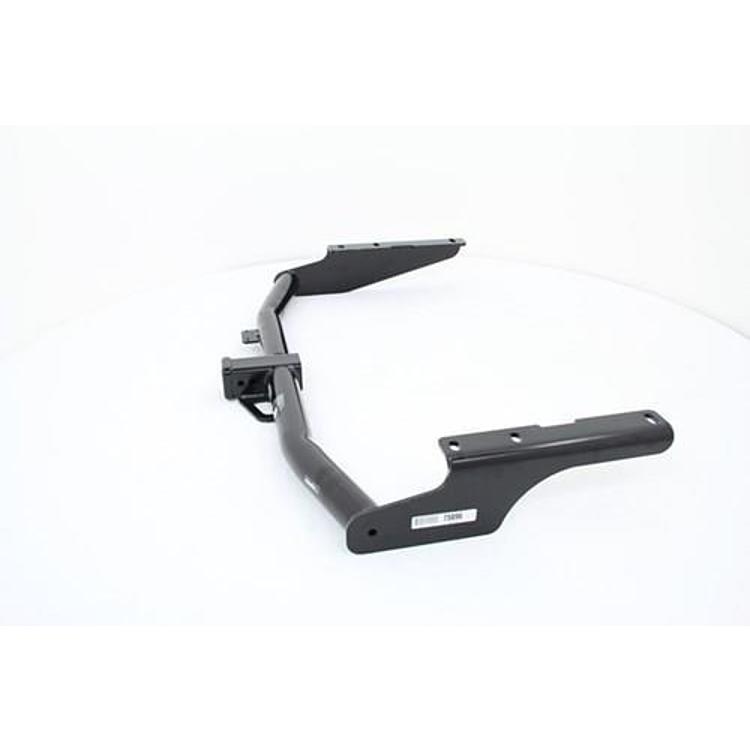

DrawTite Class III/IV Round Tube Max-Frame Trailer Hitch – 75896

DrawTite

Shop Toyota Highlander Receiver Hitches on Amazon

Compare current versions and compatible options on Amazon, then check out with your Amazon account.

Slickrock 4X4 is a participant in the Amazon Associates Program. As an Amazon Associate we earn from qualifying purchases.

  • Fits 2014 Toyota Highlander (Hybrid Limited, LE, LE Plus, Limited, XLE)
  • Class III/IV round tube max-frame hitch, rear mount, part number 75896
  • Rated 6000 lb gross trailer weight and 900 lb tongue weight
  • Weight distribution ratings of 8000 lb GTW and 900 lb tongue weight
  • All-welded construction with nationwide lifetime warranty

Description

Overview

The DrawTite 75896 is a Class III/IV round tube max-frame trailer hitch for the 2014 Toyota Highlander in the Hybrid Limited, LE, LE Plus, Limited and XLE trims. It mounts at the rear. The hitch is rated for 6000 lb gross trailer weight (GTW) and 900 lb tongue weight, with 8000 lb GTW and 900 lb tongue weight distributing for weight distribution setups.

The hitch is all-welded and built to fit the specific vehicle without adapters. Each hitch carries a nationwide lifetime warranty. The Highlander is a three-row crossover, and a Class III hitch suits small trailers, boat trailers and utility trailers that stay within its ratings.

Key features

  • Round tube max-frame design, rear mount
  • Class III/IV weight class
  • Rated 6000 lb gross trailer weight and 900 lb tongue weight
  • Weight distribution ratings of 8000 lb GTW and 900 lb tongue weight
  • All-welded construction
  • Built to fit the specific vehicle with no adapters

Towing within hitch limits

A receiver hitch is only one part of a towing setup. The trailer, the hitch, the vehicle and the load each have their own limits, and the lowest of them governs what is safe to pull. Keeping tongue weight correctly placed and the trailer loaded evenly makes the tow steadier and reduces strain on the hitch and the vehicle.

Weight distribution setups use spring bars and brackets to move part of the tongue load to the front axle. They are usually needed to use the weight distributing rating, and they must be matched to the trailer’s coupler and the vehicle. Sway control is a related consideration for longer trailers and windy conditions.

  • Keep the trailer within the lowest rating in the setup
  • Level the trailer and balance the load
  • Inspect welds and bolts before each tow season
  • Check trailer lights and brakes before each trip

Specifications

Brand DrawTite
Part number 75896
UPC 742512758962
Position Rear
Frame style Round tube max-frame
Weight class Class III/IV
Gross trailer weight (GTW) 6000 lb
Tongue weight 900 lb
Weight distribution GTW 8000 lb
Weight distributing tongue weight 900 lb
Fitment type Direct fit
Warranty Nationwide lifetime

Vehicle fitment

It fits the 2014 Toyota Highlander in the Hybrid Limited, LE, LE Plus, Limited and XLE trims.

Other Highlander years, and Highlander trims not named in the list, are not covered. Confirm your vehicle’s year, model and trim before ordering.

Installation notes

Confirm installation requirements, including whether drilling is needed, before starting. Keep the trailer weight inside the lower of the hitch rating and the Highlander’s own towing limit.

What’s included

Check the package contents against your installation before starting.

SKU: DRA75896 Category:

Specification

Shipping weight 45.00 lbs
Package dimensions 45.50 × 24.80 × 6.00 in
brands

Fitment

VehicleYearsTrims
Toyota Highlander2014Hybrid Limited, LE, LE Plus, Limited, XLE

Use “Select your vehicle” at the top of the page to check this part against your vehicle.

Questions & Answers

Does the DrawTite 75896 fit a 2014 Toyota Highlander Hybrid Limited?

Yes, the 2014 Toyota Highlander Hybrid Limited is covered. The same year also covers the LE, LE Plus, Limited and XLE trims. Other years are not covered, so confirm your model year before installing.

What weight ratings does the hitch have?

It is rated for 6000 lb gross trailer weight and 900 lb tongue weight. Weight distribution ratings are 8000 lb GTW and 900 lb tongue weight distributing. The hitch rating does not replace the vehicle's towing limit.

Is this hitch a bolt-on unit with no drilling?

Confirm installation requirements before starting, including whether drilling is needed and how long the install will take. The hitch is built to fit the specific vehicle with no adapters.

Does a weight distribution setup need its own hardware?

Often yes. Spring bars, brackets and a compatible sway control unit are usually needed to use the weight distributing rating. Confirm the hardware and fit with your trailer's coupler and the vehicle before towing.

How often should a receiver hitch be inspected?

Inspect it before each tow season and after any heavy use. Look for cracked welds, loose bolts, corrosion and wear on the receiver opening. Re-tighten fasteners after the first few trips.
