Overview

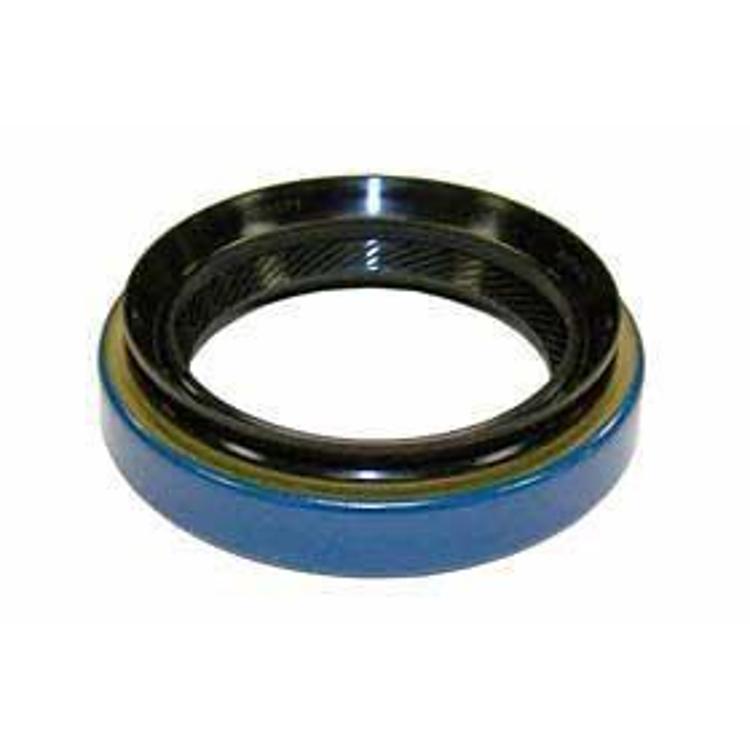

The Crown Automotive 5013019AA is a transfer case output shaft seal, identified by part number 5013019AA and UPC 848399032581. It is a direct fit, and the transfer case model on your vehicle decides the match.
Because an output shaft seal must match the transfer case, the transfer case model on your vehicle decides the match.
Key features
- Output shaft seal for transfer cases
- Part number 5013019AA with a letter suffix
- It is a direct fit, so the transfer case model decides the match.
- UPC 848399032581 for identification
Output shaft seal replacement
The output shaft seal sits where the shaft exits the transfer case, keeping gear oil inside and dirt out. Over time the lip hardens or the shaft surface wears, and a small leak appears around the yoke or flange. Leaks are often first noticed as oil spots under the vehicle or a dusty buildup near the seal lip.
Replacing the seal means draining the case, removing the yoke or flange, and inspecting the shaft for grooves that could damage a new lip. Clean the bore thoroughly and use a seal driver so the lip is not folded. Replace the yoke nut or gasket if they show wear, and refill the fluid to the correct level afterward.
- Inspect the shaft for grooves
- Check the yoke for wear or pitting
- Refill fluid to the correct level
Specifications
| Brand | Crown Automotive |
|---|---|
| Part number | 5013019AA |
| UPC | 848399032581 |
| Component | Output shaft seal |
| Fitment type | Direct Fit |
Vehicle fitment
Confirm the seal matches your transfer case model before ordering.
Confirm your vehicle’s year, model and trim before ordering.
What’s included
The output shaft seal, part number 5013019AA. Check the mating parts against your installation before starting work.
