Overview

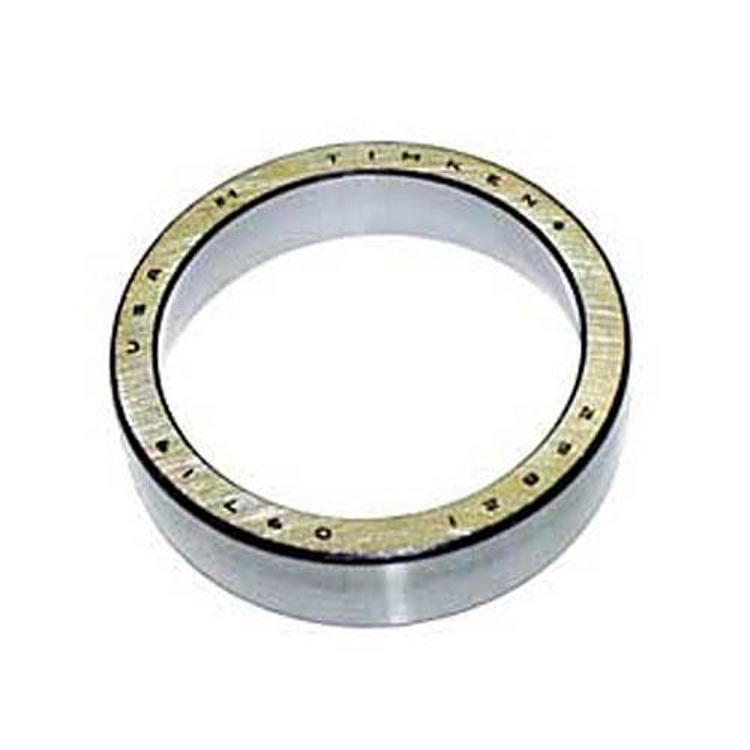

The Crown Automotive Dana 300 Inner Bearing Cup, part number J0052800, is the inner (rear) bearing cup for the Dana 300 transfer case. It fits the 1981-1986 Jeep CJ7 and the 1981-1985 Jeep Scrambler.
It is a direct fit replacement. Compare the cup with the old one before installing it.
Key features
- Designed for the Dana 300 transfer case
- Inner (rear) bearing cup position
- Direct fit replacement part
Fitting the bearing cup
Inner bearing cups are press fit into the transfer case housing, so the new cup must sit square in its bore. Before pressing, clean the bore thoroughly and check it for scoring or burrs that could cause the cup to sit crooked. A cup that is cocked will load the bearing unevenly and shorten its life.
Because the cup and its bearing work as a pair, inspect the rollers and race while the case is open. Replacing a worn bearing alongside a new cup is usually sensible, since a tired bearing can wear a fresh cup quickly. Keep the old shims and note their positions so gear mesh and preload can be set as they were.
- Clean and inspect the bore before pressing
- Replace worn bearings at the same time
- Record shim positions before removal
Specifications
| Brand | Crown Automotive |
|---|---|
| Part number | J0052800 |
| UPC | 848399051308 |
| Application | Dana 300 transfer case |
| Position | Inner (rear) bearing cup |
| Fitment | Direct fit |
Vehicle fitment
It fits the Base, Laredo, Limited and Renegade trims of the 1981-1986 Jeep CJ7, and the Base, Laredo, Renegade, SL and SR trims of the 1981-1985 Jeep Scrambler.
Confirm fit for your vehicle’s year, model and trim before ordering.
Installation notes
Bearing cups are normally installed with a press, so plan on having the proper tools or a drivetrain shop handle the job.
