Overview

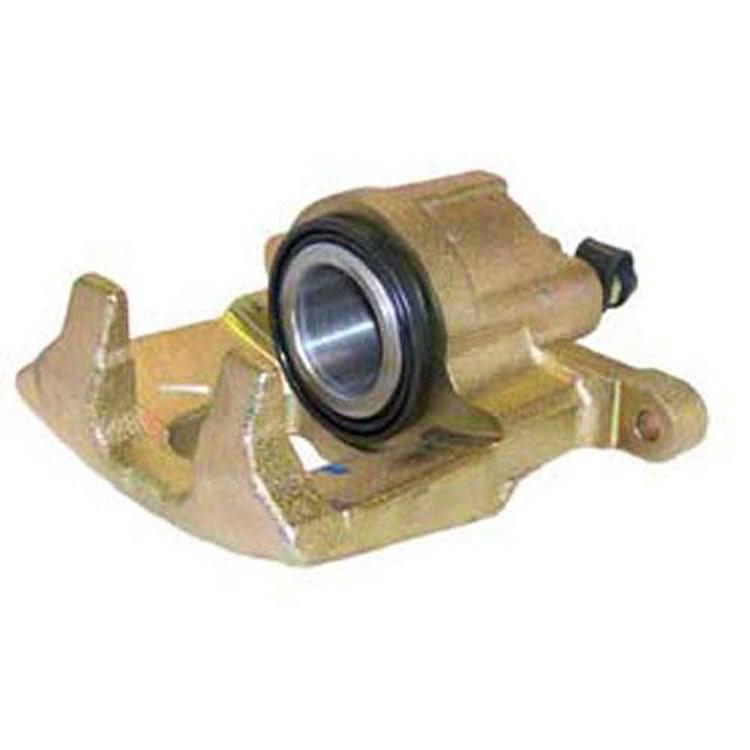

The Crown Automotive 68003774AA is a driver side rear brake caliper assembly for the 2007–2018 Jeep Wrangler (JK), 2008–2012 Jeep Liberty and 2007–2011 Dodge Nitro.
This is a driver side rear brake caliper assembly for 2 and 4 door Wrangler JK models from 2007 onward. It sits at the rear left position and is a direct fit. As a complete assembly, it is a whole caliper rather than a repair component.
Interestingly for a Jeep part, the list also reaches two other vehicles, the Liberty and the Dodge Nitro, which suggests a shared rear brake. The passenger side rear assembly is a different part number.
One rear caliper assembly covers vehicles from three different families. For a Wrangler JK owner, that means the part fits the 2007–2018 run, in 2 and 4 door versions. Because it is a complete assembly, the caliper arrives ready to install instead of needing a rebuild. The passenger side counterpart is a separate part number. Pads and rotors are not included with this part.
Key features
- Driver side rear brake caliper assembly
- Rear left position
- For 2 and 4 door Wrangler JK
- Marked as a direct fit
- Also fits the Liberty and Nitro
Rear caliper service
A rear caliper assembly clamps the pads against the rear rotor, so a seized piston or damaged body affects only that wheel. Because a complete unit avoids the disassembly of a rebuild, the job is mainly mounting, hose connection and bleeding.
Rear brakes often wear unevenly on one side when a caliper sticks. Check the opposite caliper for the same behavior, since the pads and slide pins on both sides see similar conditions.
Brake hoses, pad hardware and the rotor should be checked when a caliper is replaced. A hose that has aged can restrict flow to the new caliper, and worn pad hardware can keep fresh pads from moving freely. Keep the bleeding order and tightening sequence consistent with the vehicle service procedure. Test the pedal and rear brake feel at low speed before normal driving.
- Pull to one side under braking
- Heat or a smell from one rear wheel
- Fluid seepage at the caliper
Specifications
| Brand | Crown Automotive |
|---|---|
| Part number | 68003774AA |
| UPC | 848399047936 |
| Part type | Rear brake caliper assembly |
| Position | Rear left (driver side) |
| Body styles | 2 and 4 door Wrangler JK |
| Fit type | Direct fit |
Vehicle fitment
Crown Automotive names the 2007–2018 Jeep Wrangler (JK), the 2008–2012 Jeep Liberty and the 2007–2011 Dodge Nitro.
The Wrangler JL, the earlier TJ and the 2002–2007 Liberty KJ are not on that list. Confirm your vehicle’s year, model and trim before ordering.
Installation notes
Replacing the assembly opens the brake circuit, so bleed the rear brakes and test the pedal before driving.
What’s included
- One driver side rear brake caliper assembly
