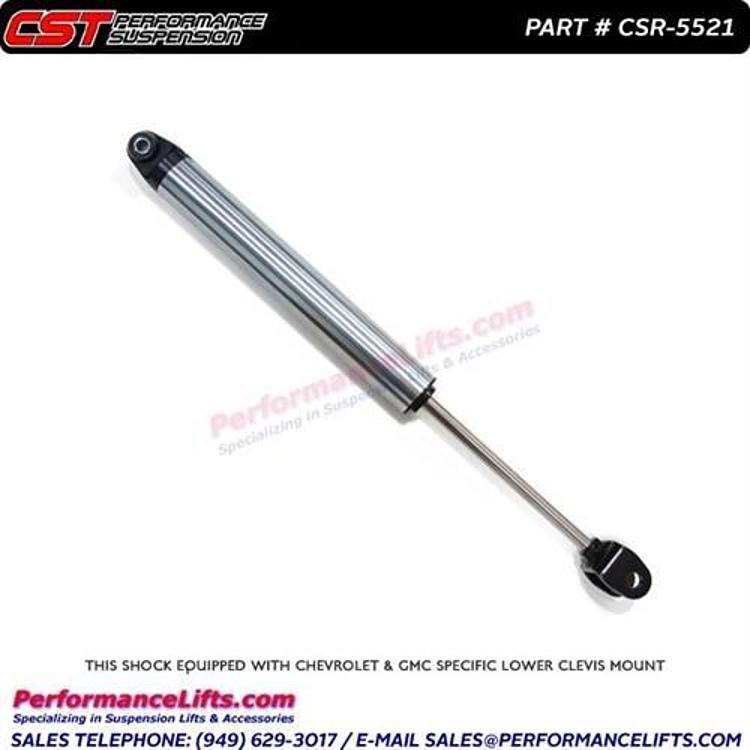

California Supertrucks 2.0 Non Resevoir Shock – CSR-5521B

California Super Trucks

Shop GMC Sierra 3500 HD Shock Absorbers on Amazon

Compare current versions and compatible options on Amazon, then check out with your Amazon account.

Slickrock 4X4 is a participant in the Amazon Associates Program. As an Amazon Associate we earn from qualifying purchases.

  • Front 2.0 non-reservoir gas-charged shock
  • Rated for a w/6 – 7.5 in. Lift height.
  • Fits 2011–2018 Chevrolet Silverado and GMC Sierra 2500 HD and 3500 HD
  • Part number CSR-5521B, UPC 700007522401

Description

Overview

The California Super Trucks CSR-5521B is a front 2.0 non-reservoir shock absorber for 2011–2018 Chevrolet Silverado and GMC Sierra 2500 HD and 3500 HD trucks. It is a gas-charged design for the front suspension.

It is built in the U.S.A. and uses bushing mounts rather than heim joints. Its lift range is w/6 – 7.5 in. Lift, which suits a lifted truck rather than a stock-height setup.

Key features

  • Front position, 2.0 non-reservoir design
  • Gas-charged construction
  • Bushing mounts instead of heim joints.
  • All required hardware is included.
  • Built in the U.S.A.

Non-reservoir construction

A non-reservoir 2.0 shock keeps the gas charge and oil in one body, which makes it more compact than a reservoir design. The compact body suits installs where there is limited room for a canister, and it keeps the unit tidy on a truck that sees frequent highway use. Its damping must be matched to the spring and tire setup, so a lifted truck can feel firmer.

Look for oil seepage around the shaft, a rebound that does not settle, and bushing wear at both ends. Gas-charged units can lose pressure over time, so a shock that feels soft or noisy after many miles should be checked. Replace worn bushings and mounting hardware along with the shock to keep alignment and ride consistent.

When deciding whether to stay with a non-reservoir shock, consider how the truck is used, the tire size and whether the lift height has changed. A lifted front end can change the angle of the shock, so measure the mounting positions before fitting. Clean the bushings and check the fasteners after the first few drives.

Specifications

Brand California Super Trucks
Part number CSR-5521B
UPC 700007522401
Position Front
Design 2.0 non-reservoir
Shock type Gas charged
Lift height w/6 – 7.5 in. Lift
Mounts Bushings
Fitment type Direct Fit

Vehicle fitment

It fits the 2011–2018 Chevrolet Silverado 2500 HD and 3500 HD in High Country, LT, LTZ and WT trims, and the 2011–2018 GMC Sierra 2500 HD and 3500 HD in Base, Denali, SLE, SLT and WT trims.

Not covered: Silverado 1500 and Sierra 1500 models, and Heavy Duty years outside 2011–2018. Confirm your vehicle’s year, model and trim before ordering.

Installation notes

The shock mounts with bushings, so factory heim joints do not need to be pressed out. Because the lift range is w/6 – 7.5 in., confirm the fit against your truck’s suspension height before installing.

What’s included

All required hardware is included with the shock.

SKU: CSTCSR-5521B Category:

Specification

Shipping weight 8.00 lbs
Package dimensions 32.00 × 4.00 × 4.00 in
brands

Fitment

VehicleYearsTrims
Chevrolet Silverado 2500 HD2011–2018High Country, LT, LTZ, WT
Chevrolet Silverado 3500 HD2011–2018High Country, LT, LTZ, WT
GMC Sierra 2500 HD2011–2018Base, Denali, SLE, SLT, WT
GMC Sierra 3500 HD2011–2018Base, Denali, SLE, SLT, WT

Use “Select your vehicle” at the top of the page to check this part against your vehicle.

Questions & Answers

Does the CSR-5521B come with mounting hardware?

Yes. All required hardware is included, and the mounts are bushings, so factory heim joints do not need to be pressed out. Confirm fit for your vehicle's year, model and trim before ordering.

Will the CSR-5521B fit a Silverado 1500?

No. It fits 2011 to 2018 Silverado and Sierra 2500 HD and 3500 HD trucks, and no Silverado 1500 model is covered. Confirm your year, model and trim before ordering.

What lift height range does the CSR-5521B cover?

The lift range is w/6 - 7.5 in. Lift. Compare that range with your truck's lift height before ordering, since the shock suits lifted applications.

Can a non-reservoir shock be rebuilt?

Some non-reservoir shocks can be rebuilt, but most owners replace the unit instead. Check the seals, the shaft and the gas charge first. If oil is leaking past the seal or the shaft is pitted, replacement is usually the simpler option.
