Baer Brakes Race S4 Disc Brake Pads For Select Baer S4 Systems – Hb100 Dr1 – DR1-N

Baer Brakes

Shop Baer Brakes Disc Brake Pads on Amazon

Compare current versions and compatible options on Amazon, then check out with your Amazon account.

Slickrock 4X4 is a participant in the Amazon Associates Program. As an Amazon Associate we earn from qualifying purchases.

  • Baer Brakes DR1-N race brake pads for Baer S4 systems, sold as a four-pad kit
  • No vehicle fitment is listed; confirm your caliper is an S4 four-piston model
  • High friction race compound for track day and performance driving
  • Semi-metallic pads, Premium grade, black backing plate
  • Caliper hardware (8 pad abutments) and noise suppression hardware sold separately

Description

Overview

The Baer Brakes DR1-N is a four-pad kit of race-compound disc brake pads for Baer S4 brake systems, aimed at track day events and other performance driving. Baer positions these pads as a more aggressive option than the pads supplied with its Big Brake Kits.

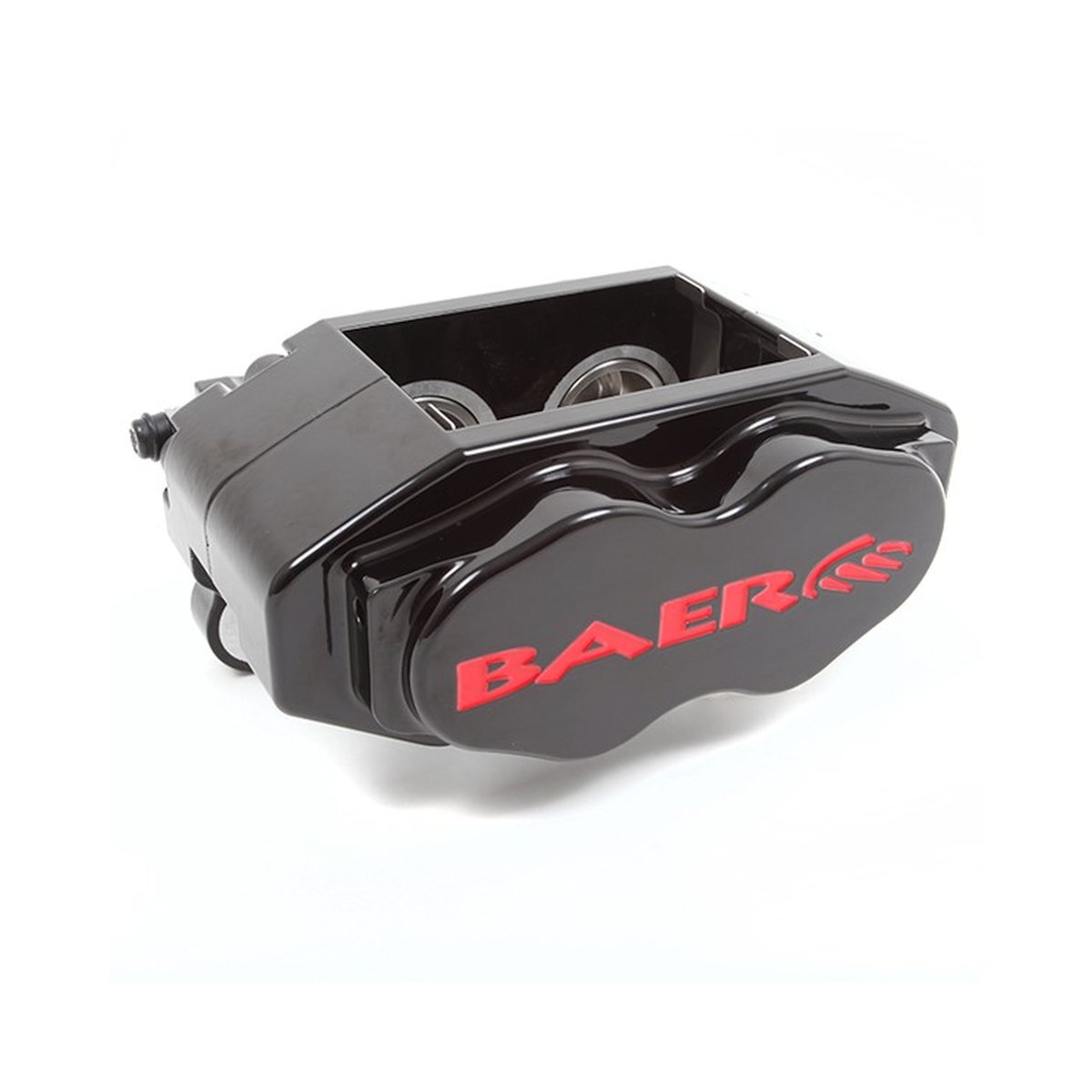

The pads are made for the four-piston S4 caliper design used on S4 Deep Stage Drag Race systems. They can be run on the street, but the firmer compound makes more noise and dust than a standard pad. Track use puts heavy heat into both pads and rotors, so check rotor surfaces for heat checking, scoring or blue discoloration after each session.

Key features

  • Replacement pad designed for the S4 four-piston caliper.
  • High friction race compound suited to race use and performance driving.
  • Expect higher noise and dust levels than standard Baer pads.
  • Semi-metallic friction material on a black backing plate.
  • Premium grade pad supplied as a kit of four pads.
  • Sold as a kit; caliper hardware is not part of the pad kit.

Bedding in race pads

Race compound pads perform best once they reach working temperature, and the first few sessions set the friction surface. Make a series of moderate stops from a lower speed to transfer an even layer of pad material onto the rotor. Hard stops from high speed before the layer forms can cause uneven braking and vibration.

After each track session, look at the rotor for heat checking, scoring and blue discoloration, and check the pads for cracking, glazing or uneven wear. A pad that has overheated may need replacing before the next event, even when some friction material remains.

  • Let brakes cool fully before handling pads or rotors
  • Keep pad faces clean of grease and debris
  • Recheck caliper bolt torque after the first few sessions

Specifications

Brand Baer Brakes
Part number DR1-N
UPC 844165030867
Sold as Kit
Caliper series S4
Pad type Race
Friction material Semi-metallic
Grade Premium
Pads per set 4
Box count 1
Backing plate color Black
Slotted No
Pad shims included No
Abutment clips included No
Bolts included No
Mounting hardware included No
Brake lubricant included No
Pad wear sensor included No
Wear indicator attached No
Emission code 6
Country of origin USA

Vehicle fitment

No vehicle fitment is confirmed for the DR1-N from this part alone. The pad is built for the S4 four-piston caliper, which belongs to the S4 series for General Motors 78-88 G-Body cars with 11 Inch SS4+ front systems. Confirm your caliper and your vehicle’s year, model and trim before ordering.

Fitment cannot be confirmed for a specific model from this part alone, so do not assume it fits a car because of the series label. Confirm your vehicle’s year, model and trim before ordering.

Installation notes

Abutment clips, pad shims, bolts, mounting hardware, brake lubricant and the pad wear sensor are not included, so gather your current hardware before starting. Caliper hardware with 8 pad abutments is sold separately. Race compound pads grip harder once heated, so bed them in with a series of moderate stops and avoid hard stops from speed until the pedal feels firm. Brakes are safety-critical, so have a qualified technician inspect the installation.

What’s included

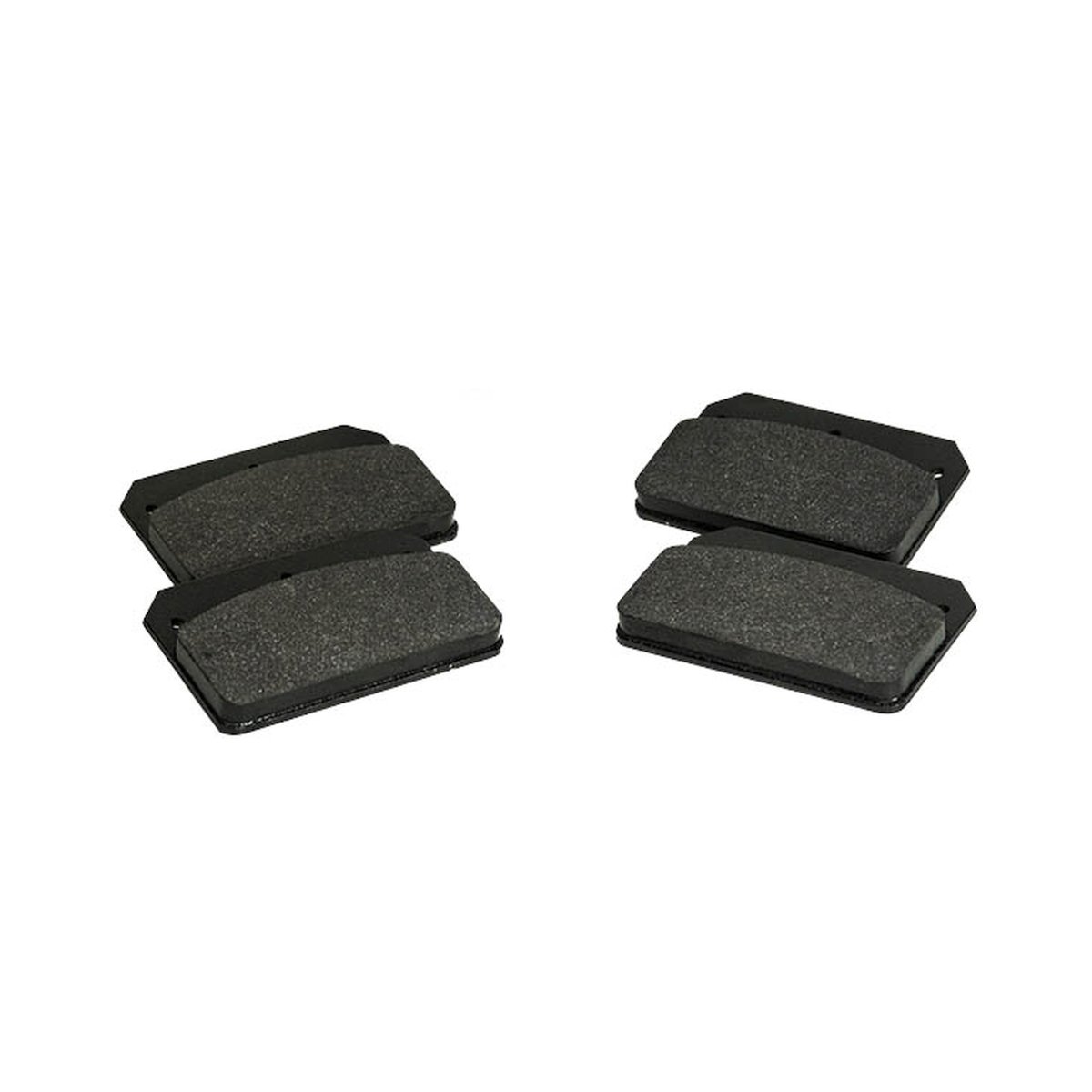

The kit contains four Baer race brake pads, sold as a set of four.

Not included: caliper hardware (8 pad abutments), abutment clips, pad shims, bolts, mounting hardware, brake lubricant and the pad wear sensor.

Specification

Shipping weight 5 lbs
Package dimensions 14 × 6 × 10 in
brands

Sold as

Kit

Series

S4

Pads per set

4

Country of origin

USA

Questions & Answers

Does the Baer DR1-N fit my car?

No vehicle fitment is confirmed for the DR1-N, so it cannot be verified for a specific model. The pad is built for the S4 four-piston caliper, so confirm that your Baer system uses that caliper before ordering.

Are caliper hardware and pad shims included with the DR1-N?

No. The kit contains four race brake pads only. Caliper hardware with 8 pad abutments is sold separately, and abutment clips, pad shims, bolts, mounting hardware, brake lubricant and the pad wear sensor are not included.

What is the Baer DR1-N part number and is it a race pad?

The part number is DR1-N, UPC 844165030867. It is a race compound pad, aimed at track day and performance driving. It can be run on the street, but expect more noise and dust than standard pads.

How should race brake pads be cared for between track sessions?

Inspect the pads for uneven wear, cracking and glazing after each session, and check the backing plate for loose hardware. Let the brakes cool fully before handling them, and replace the pads once the friction material is worn down.
