Overview
The ARB BP5190002L is a front left BP-51 internal bypass shock absorber from ARB 4×4 Accessories, made for the 2010–2014 Toyota FJ Cruiser (Base). It is a direct fit and gas charged.
The BP-51 range was developed in-house by Old Man Emu ride engineers working toward comfort and control. Each unit is vehicle specific and uses the existing mounting locations, so installation does not need extra vehicle modification.
This version adjusts independently for rebound and compression on the vehicle, which is a step beyond compression-only adjustable shocks. Owners can tune the ride for the vehicle or for a particular trip, which is the main reason to pick the adjustable design over a fixed valve shock.

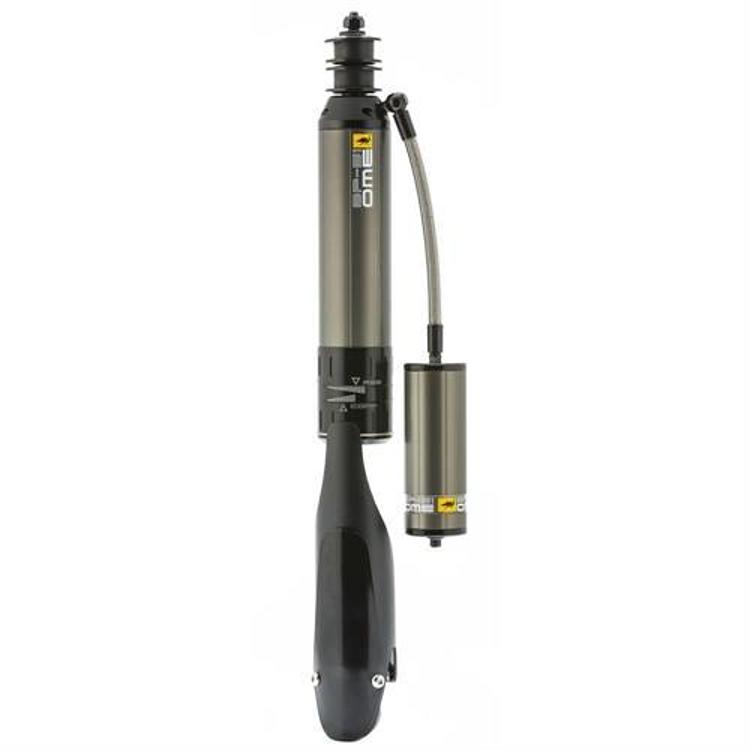

The shock is built from 6061 grade aluminum for the remote oil canister, spring seat, adjuster and top hat, with a 51mm bore body finished in type III hard anodized aluminum. A high quality X5K grade steel coil sits on that spring seat. The Dash -6 high temperature Teflon hose and large Teflon-lined spherical bearings are fitted, the piston shaft is hard chromed and ground, and an impact-resistant, high density polyethylene shaft guard covers it. Part number BP5190002L and UPC 9332018035820 identify the unit. It is labeled direct fit. It is a front unit, shown in the position details.
Key features
- Internal bypass design with adjustable damping
- Independent rebound and compression adjustment
- 6061 grade aluminum remote oil canister
- Large Teflon-lined spherical bearings
- Impact-resistant, high density polyethylene shaft guard
- Hard chromed, ground piston shaft
- 51mm bore, 6061 aluminum body with a type III hard anodized finish
Adjustable shock tuning basics
Adjustable shocks let you change how firmly the damper resists compression and rebound, which affects how the truck settles after a bump and how it feels on the highway. Compression controls how fast the suspension compresses over a hit, while rebound controls how quickly the shock returns. Separate adjusters make it easier to fine tune one without changing the other.
Settings are best changed in small steps, then tested on a familiar road. A heavier load, larger tires or a different spring setup can all change what makes a good starting point. Remote oil canisters give the damper room to work cooler, which helps keep settings consistent on long descents or sustained trail use.
Check the adjusters for smooth operation and the canister and hoses for chafing at each service. Keep the spherical bearings and bushings in good condition, since loose joints can change how the shock behaves. Note your settings after each change so you can return to a setting that worked.
- Change one setting at a time
- Note the setting after each adjustment
- Inspect the canister and hose for chafing
Specifications
| Brand | ARB 4×4 Accessories |
|---|---|
| Part number | BP5190002L |
| UPC | 9332018035820 |
| Position | Front left |
| Lift height | w/0 in. lift/drop |
| Bore | 51mm |
| Shock type | Gas charged |
| Fitment type | Direct fit |
Vehicle fitment
It is made for the 2010–2014 Toyota FJ Cruiser (Base). It is not made for other FJ Cruiser years or for other Toyota models.
Confirm your vehicle’s year, model and trim before ordering.
What’s included
Check the package contents against your installation before starting.
