GMC Canyon Suspension
57 suspension listed for the 2004–2022 GMC Canyon
Every part on this page is listed by its maker for this model; the most represented brands are Pro Comp Suspension, Rancho and Skyjacker. Open a part for its specs, part number and the exact model years and trims it covers, or select your year below to check fitment on every page.
Narrow it down: Shock Absorbers 38
Showing 1–24 of 57 resultsSorted by popularity
-
-
Shock Absorbers & Shock Accessories
Skyjacker M95 Performance Monotube Shock Absorber – M9584
- M95 Performance monotube shock sold as each
- Nitrogen gas charge with an internal bump stop
- Large 46mm bore and 180 degree directional mounting
- Fits 1992–1998 Suburbans, 1999–2000 Escalade, 2004–2012 Colorado and Canyon, and Isuzu i-series
SKU: SKYM9584 -
Shock Absorbers & Shock Accessories
Skyjacker Black MAX Shock Absorber – B8584
- Rear Black MAX shock with bar pin top and eyelet bottom mounts
- 10.02 in. stroke, 24.84 in. extended and 14.82 in. collapsed length
- Arc welded 360 degree end mounts and 180 degree directional mounting
- Fits 1992–1998 K-series Suburbans, 1999–2000 Escalade and 2004–2012 Colorado and Canyon
- Sold individually
SKU: SKYB8584 -
Shock Absorbers & Shock Accessories
Skyjacker Black MAX Shock Absorber – B8540
- Front Black MAX shock with stem top and eyelet bottom mounts
- 6.84 in. stroke, 18.12 in. extended and 11.28 in. collapsed length
- Arc welded 360 degree end mounts and 180 degree directional mounting
- Fits 2004–2012 Chevrolet Colorado and GMC Canyon and 2006–2008 Isuzu i-series models
- Sold individually
SKU: SKYB8540 -
Leveling Kits
ReadyLift 2.25 Inch Torsion Key Front Leveling Kit – 66-3070
- Adjustable 1.5 to 2.25 inch front lift with torsion keys
- Fits 2004–2012 Chevrolet Colorado and GMC Canyon, plus 2006–2010 and 2009–2010 Hummer H3 and H3T
- Clearance for up to 32 inch tires on Colorado and Canyon, as ReadyLift states
- Forged keys with 10.9 grade metric hardware
- Shock relocation bracket included
SKU: RDY66-3070 -
Shock Absorbers & Shock Accessories
Rancho RS5000X Series Shock Absorber – RS55301
- Rancho RS5000X rear twin tube shock for 2004–2012 Chevrolet Colorado and GMC Canyon
- Progressive engagement valving with a 16 mm nitro-carburized rod
- Compressed 14.73 inches, extended 23.13 inches, travel 8.40 inches
- Part number RANRS55301
SKU: RANRS55301 -
Shock Absorbers & Shock Accessories
Rancho RS5000X Front Shock – RS55375
- Rancho RS5000X front monotube shock for 2004–2012 Chevrolet Colorado and GMC Canyon
- Front shock with no lift, sold individually
- For torsion bar front suspension; not for use with aftermarket shock spacers or relocation brackets
- Part number RANRS55375
SKU: RANRS55375 -
Shock Absorbers
Skyjacker Softride Nitro Shock Absorber – N8040
- Front position, fits listed 2004–2012 Chevrolet Colorado and GMC Canyon, plus 2006–2008 Isuzu i-280, i-290, i-350 and i-370
- 150 PSI nitrogen gas
- Part number N8040, UPC 803696149622
- Listed lift height w/3 – 5 in. Lift
- Sold as each, includes red boot
SKU: SKYN8040 -
Shock Absorbers
Skyjacker Softride Hydro Shock Absorber – H7084
- Rear hydraulic twin tube shock, Skyjacker part H7084 from the Hydro Series
- Fits 1992-2012 Chevrolet and GMC pickups and Suburbans
- Also fits Chevrolet Colorado, GMC Canyon, Cadillac Escalade and Isuzu i-Series trucks
- Red polyurethane bushings and red boot included
- Sold as each
SKU: SKYH7084 -
Shock Absorbers
Skyjacker Softride Hydro Shock Absorber – H7040
- Front shock for 2004–2012 Chevrolet Colorado and GMC Canyon
- Also fits 2006–2008 Isuzu i-280, i-290, i-350 and i-370 models
- Designed for a 3–5 in. lift range
- Multi-stage velocity sensitive valving, hydraulic twin tube
- Skyjacker part number H7040, UPC 803696136783
SKU: SKYH7040 -
-
Shock Absorbers
Rancho RS5000X Series Shock Absorber – RS55610
- Front Rancho RS5000X Series shock absorber, part number RS55610
- Built for 2004–2012 Chevrolet Colorado and 2004–2012 GMC Canyon
- Ten-stage velocity sensitive valving with twin tube cellular gas design
- Limited lifetime warranty
SKU: RANRS55610 -
Shock Absorbers
Rancho RS5000X Series Shock Absorber – RS55325
- Rear shock for 2004–2012 Chevrolet Colorado and GMC Canyon
- Rancho RS55325, RS5000X Series twin tube gas design
- Ten-stage velocity sensitive valving
- 1/2-in. (12 mm) rods with nitro-carburized coating
- Limited lifetime warranty, sold individually
SKU: RANRS55325 -
-
Shock Absorbers
Rancho RS5000 Series Shock Absorber – RS5770
- Fits 2004–2012 Chevrolet Colorado and GMC Canyon per Rancho’s listed trims
- Front RS5000 Series gas-charged shock, part number RS5770
- Ten-stage velocity sensitive valving with 5/8-in. (16mm) piston rod
- Red protective boot included; sold as each
SKU: RANRS5770 -
Shock Absorbers

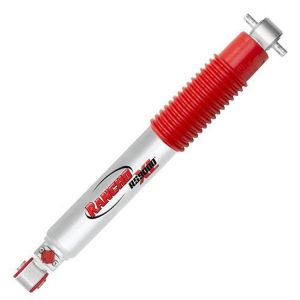

Rancho RS9000XL Series Shock Absorber – RS999301
- Rear shock, Rancho RS9000XL Series, part number RS999301
- Fits 2004-2012 Chevrolet Colorado and GMC Canyon
- 2.75-in. (70mm) body with 18mm Nitro Carb rod
- 9-position manual or remote tuning via myRide
- Nitrogen gas charged with a limited lifetime warranty
SKU: RANRS999301 -
-
Shock Absorbers

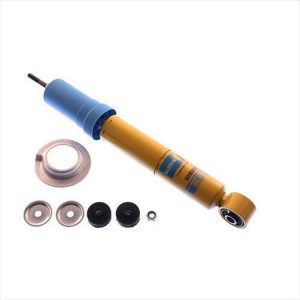

Bilstein 4600 Series Shock Absorber – 24-186193
- Bilstein 4600 Series front shock absorber, part number 24-186193
- Gas-charged monotube design with a 2 in body diameter
- Fits Chevrolet Colorado, GMC Canyon, and Isuzu i-280 and i-290 trucks.
- Yellow finish with boots included
- UPC 651860583310
SKU: BIL24-186193 -
Shock Absorbers

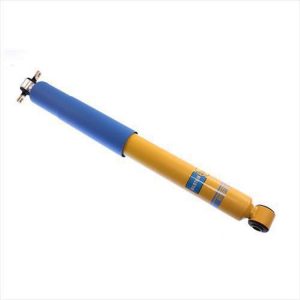

Bilstein 4600 Series Shock Absorber – 24-186179
- Bilstein 4600 Series rear shock absorber for 2004–2012 Chevrolet Colorado and GMC Canyon
- Part number 24-186179, gas-charged monotube, 2 in body diameter
- Yellow finish with boots included
- Colorado trims Base through Z85 LS; Canyon trims SL through Z85 SLE
SKU: BIL24-186179 -
Shock Absorbers

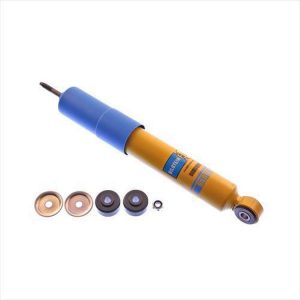

Bilstein 4600 Series Shock Absorber – 24-186162
- Bilstein 4600 Series front shock absorber for 2004–2012 Chevrolet Colorado and GMC Canyon
- Part number 24-186162, gas-charged monotube, 2 in body diameter
- Yellow finish with boots included
- Colorado trims Base through Z85 LS; Canyon trims SL through Z85 SLE
SKU: BIL24-186162 -
Leveling Compressor Kits
AirLift Load Controller II On-Board Air Compressor Control System – 25812
- AirLift Load Controller II on-board compressor control system, part number 25812
- Levels vehicle from side to side
- Dual gauge and 5 psi low pressure sensor
- Comes with new wiring harness
- Fits many 2007–2018 trucks, SUVs and cars
SKU: AIR25812 -
Shock Absorbers & Shock Accessories
Rough Country N3 Rear Shocks – 23158_E
- Fits 2015–2022 Chevrolet Colorado and GMC Canyon
- Rear shock for a 6.5 to 8 inch lift
- Eyelet top and bottom mounts
- Extended length 30 in, collapsed length 17.56 in
- 35mm piston, 18mm chrome-hardened rod, 54mm body
- Nitrogen charged; sold as a pair with a 3-year warranty
SKU: R/C23158_E -
Leveling Kits
Pro Comp Nitro 3 Inch Leveling Lift Kit – 63162K
- Fits the 2015–2022 Chevrolet Colorado and 2015–2022 GMC Canyon
- 3-inch front lift with strut spacers
- Rear lift blocks and U-bolts, where applicable
- Front lift range of 1.5 to 2.5 inches depending on the application
- Part number EXP63162K (63162K)
SKU: EXP63162K -
