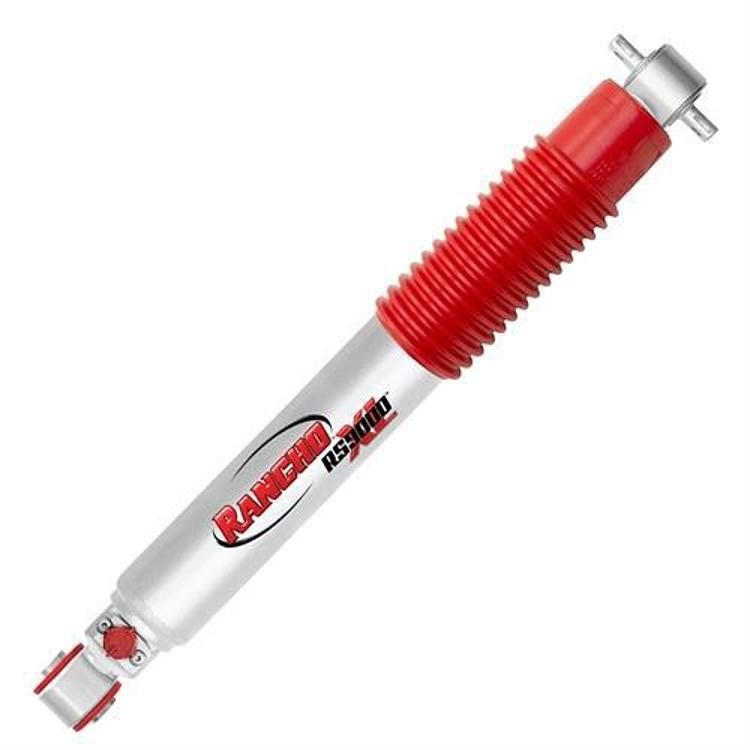

Rancho RS9000XL Series Shock Absorber – RS999301

Rancho

Shop GMC Canyon Shock Absorbers on Amazon

Compare current versions and compatible options on Amazon, then check out with your Amazon account.

Slickrock 4X4 is a participant in the Amazon Associates Program. As an Amazon Associate we earn from qualifying purchases.

  • Rear shock, Rancho RS9000XL Series, part number RS999301
  • Fits 2004-2012 Chevrolet Colorado and GMC Canyon
  • 2.75-in. (70mm) body with 18mm Nitro Carb rod
  • 9-position manual or remote tuning via myRide
  • Nitrogen gas charged with a limited lifetime warranty

Description

Overview

The Rancho RS999301 is a rear shock absorber from the RS9000XL Series, a nitrogen gas charged design with an 18mm Nitro Carb chrome rod and a 2.75-in. (70mm) body. It fits the 2004-2012 Chevrolet Colorado and GMC Canyon.

The shock pairs with the myRide 9-Position Manual/Remote Tuning System, giving nine tuning positions that can be set by hand or remotely. It carries a limited lifetime warranty and a liquid metallic finish.

Key features

  • Nine tuning positions through the myRide 9-Position Manual/Remote Tuning System
  • 18mm Nitro Carb rod
  • Nitrogen gas charged body
  • Liquid metallic finish
  • Polyurethane bushings and a protective boot
  • Lift rating of w/0 – 2.5 in. Lift

Choosing rear shock tuning

Rear shocks control how the axle and body settle after bumps, braking and cornering. Damping that is too soft can leave the rear feeling loose over washboard, while damping that is too firm can make the ride harsh on pavement. A tunable shock lets you move between those two ends without swapping parts.

A nitrogen gas charge helps the damping stay steadier when the shock heats up on long off-road runs. Adjust in small steps, drive the same road each time, and settle on the setting that feels stable with your usual load. Trailer or cargo weight usually calls for a firmer setting at the rear.

Shocks wear out gradually. Look for oil streaks on the body, a rear end that keeps bouncing after a dip, or clunks over ruts. Check the bushings and mounts whenever a shock comes off, and replace shocks in pairs on the same axle so the rear ride stays even.

  • Clean the rod after muddy runs and keep the boot in place
  • Re-check mount bolts after the first few trail runs
  • Test the setting on a familiar road before a long trip
  • Replace worn bushings alongside the shock

Specifications

Brand Rancho
Part number RS999301
UPC 10039703093016
Series RS9000XL Series
Position Rear
Body diameter 2.75-in. (70mm)
Rod 18mm Nitro Carb chrome
Gas charge Nitrogen
Hydraulic / gas charged Gas charged
Tuning 9-position manual or remote (myRide)
Bushings Polyurethane (red urethane)
Finish Liquid metallic
Lift rating w/0 – 2.5 in. Lift
Warranty Limited lifetime
Included Protective boot

Vehicle fitment

It is a direct fit for the 2004-2012 Chevrolet Colorado and 2004-2012 GMC Canyon. Covered Colorado trims are Base, LS, LT, WT, Z71, Z71 LS, Z85 and Z85 LS. Covered Canyon trims are SL, SLE, SLT, WT, Z71 Fleet, Z71 SL, Z71 SLE, Z85 SL and Z85 SLE.

Model years after 2012 are not in the list, so later Colorado and Canyon models are not covered. Confirm your vehicle’s year, model and trim before ordering.

What’s included

A protective boot is included with the shock.

SKU: RANRS999301 Category:

Specification

Shipping weight 6.50 lbs
Package dimensions 24.10 × 3.30 × 3.10 in
brands

Fitment

VehicleYearsTrims
Chevrolet Colorado2004–2012Base, LS, LT, WT, Z71, Z71 LS, Z85, Z85 LS
GMC Canyon2004–2012SL, SLE, SLT, WT, Z71 Fleet, Z71 SL, Z71 SLE, Z85 SL, Z85 SLE

Use “Select your vehicle” at the top of the page to check this part against your vehicle.

Questions & Answers

Does the Rancho RS999301 fit a Chevrolet Colorado?

Yes, for model years 2004-2012. The Colorado trims that fit are Base, LS, LT, WT, Z71, Z71 LS, Z85 and Z85 LS. Confirm your vehicle's year, model and trim before ordering.

What tuning and lift rating does the RS999301 have?

It has nine tuning positions through the myRide system, a rear position and a lift rating of w/0 - 2.5 in. Lift. The rod is an 18mm Nitro Carb rod on a nitrogen gas charged body.

Is there a warranty on the Rancho RS999301?

Yes. The RS999301 carries a limited lifetime warranty. Keep your proof of purchase and read the warranty terms before installation to understand what is covered.

How do I tell if the rear shock needs replacing?

Look for oil leaking down the shock body, a rear end that keeps bouncing after a dip, uneven tire wear or clunks over ruts. Inspect the bushings and mounts at the same time, since worn bushings can feel like a shock problem.
