Overview

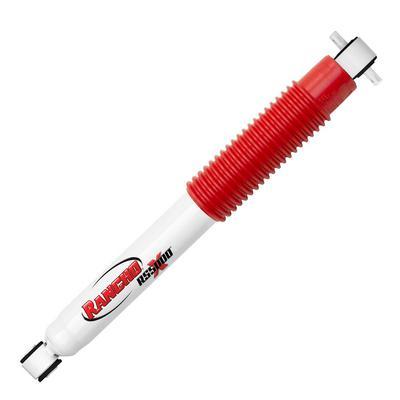

The Rancho RS55301 is a rear RS5000X twin tube shock for the 2004 through 2012 Chevrolet Colorado and the 2004 through 2012 GMC Canyon. It is intended for trucks with a Rancho RS6569B system, a torsion bar front suspension and a rear aluminum driveshaft.
The shock is gas charged with progressive engagement valving and a tuned compression control valve. Its enlarged 2-1/4-inch twin tube body holds a 16 mm nitro-carburized rod and a full-displaced 35 mm bore. It measures 14.73 inches compressed, 23.13 inches extended, with 8.40 inches of travel.
Rancho says its Cross-Tuned Technology is designed to improve on and off road handling and performance.

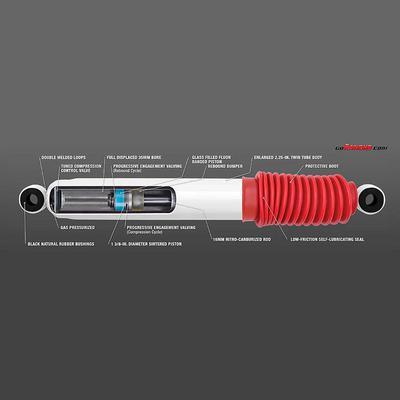

Key features
- Rear twin tube shock absorber
- Progressive engagement valving
- Tuned compression control valve
- Gas pressurized, enlarged 2-1/4-inch twin tube body
- 16 mm nitro-carburized rod and full-displaced 35 mm bore
- 1-3/8-inch sintered iron piston with glass-filled, Fluon banded design
- Rebound bumper, black natural rubber bushings and double-welded loops
- Low-friction, self-lubricating seal and protective boot
Driveline and suspension matching
A rear shock works with the axle, driveshaft and springs, so its performance depends on the rest of the rear end being sound. A bent driveshaft, worn pinion angle or failing leaf spring can cause the shock to wear unevenly and make the rear feel unsettled under power.
Before replacing a rear shock on a truck with a non-stock suspension, verify that the front and rear components are compatible with the shock’s design. Look at the bushings at both shock ends and the bump stops. Keep an eye on how the truck tracks after installation, since handling changes can point to a worn mount or a related part that needs attention.
- Check driveshaft and pinion angle
- Inspect leaf springs and spring perches
- Look at the bushings at both shock ends
Specifications
| Brand | Rancho |
|---|---|
| Part number | RANRS55301 |
| Series | RS5000X |
| Position | Rear |
| Shock type | Twin tube |
| Charge | Gas charged |
| Compressed length | 14.73 inches |
| Extended length | 23.13 inches |
| Travel | 8.40 inches |
Vehicle fitment
It fits the 2004 through 2012 Chevrolet Colorado and the 2004 through 2012 GMC Canyon in the covered versions.
The list does not include other Colorado or Canyon model years, or other GM trucks. Confirm your vehicle’s year, model and trim before ordering.
Installation notes
It is intended for trucks with a Rancho RS6569B system, a torsion bar front suspension and a rear aluminum driveshaft. Check that your truck matches all three before ordering.
What’s included
A protective boot comes with the unit.
