Overview

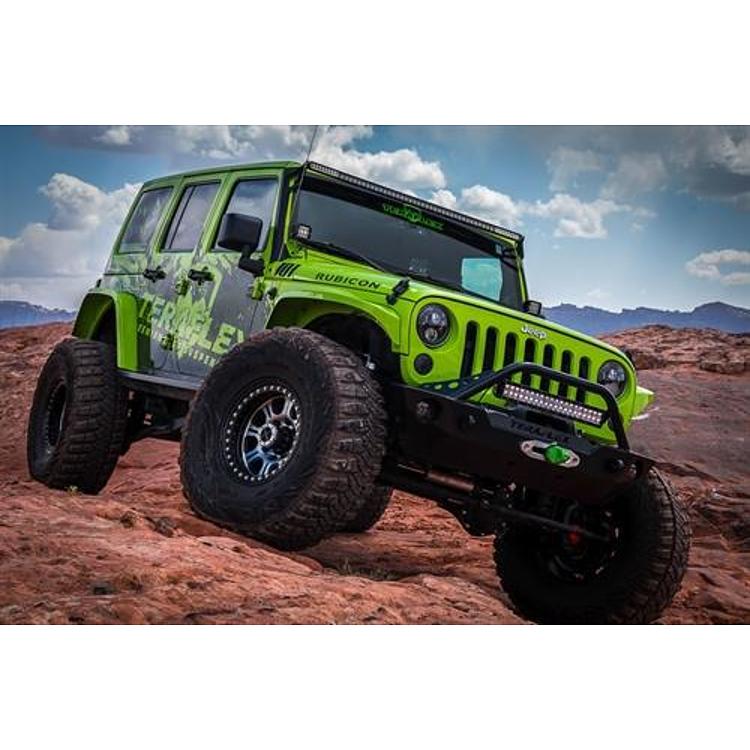

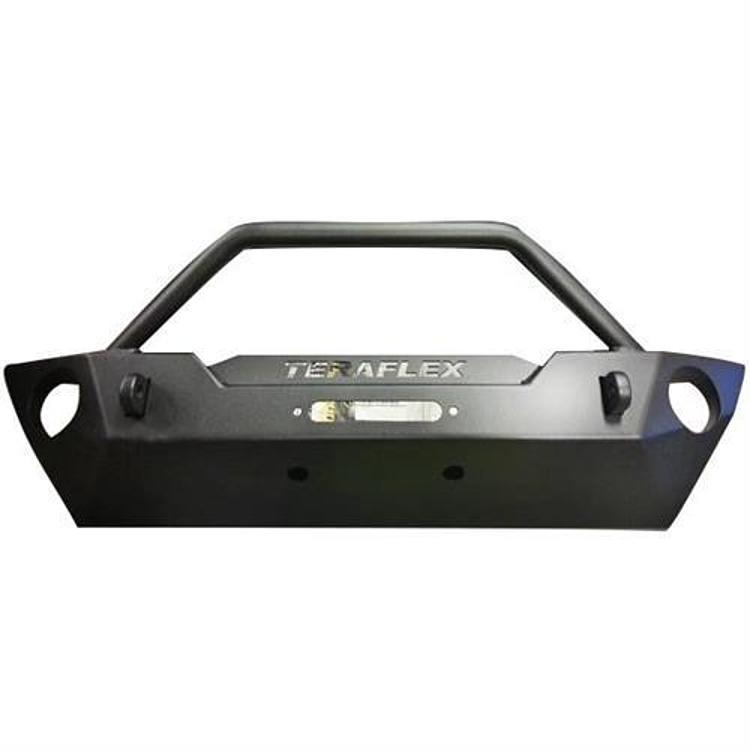

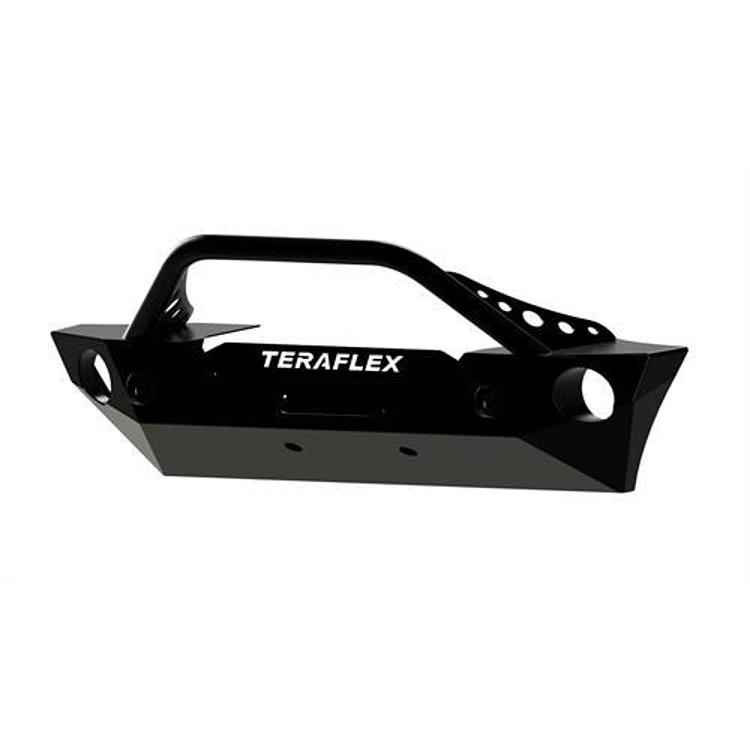

The TeraFlex Epic front bumper with hoop kit, part number 4653230, is a mid-width steel bumper designed for the 2007-2016 Jeep Wrangler JK to offer rock protection and match the JK’s body styling. It has an integrated winch mount with recessed mounting and a 1.75 inch mandrel bent tube guard.
The recessed mounting lets taller winches take up less grille space and improves radiator airflow. The bumper fits all major winch models with a standard offset bolt pattern, including the larger Warn Powerplant. Centered drum winches such as the Warn Zeon need a different bumper. Wranglers from 2012 onward need the JK Vacuum Pump Relocation Bracket Kit, part 4403100.
Key features
- Integrated winch mount with recessed mounting for taller winches
- Fits all major winches with a standard offset bolt pattern, including Warn Powerplant
- 1.75 inch mandrel bent tube guard protects the winch, grille and radiator
- Integrated D-ring mounts
- Allows use of factory fog lights
- Styled to match the JK body
- Powder coat finish
Keeping cooling airflow clear
Front-end cooling depends on how much air reaches the radiator. A bumper set forward of the grille, or a winch that sits high in the opening, can restrict that airflow and raise engine temperatures on slow climbs. Check the winch body against the radiator and fan shroud before final installation, and keep the grille opening as clear as the setup allows.
A steel bumper with a tube guard adds weight to the front of the vehicle, which changes steering effort and braking distance. Heavier front-end parts are often paired with upgraded shocks, a stronger track bar and properly rated front tires. Heavy-duty steering components and a check of the front axle mounts are worth reviewing when the bumper and winch are fitted together.
- Check winch clearance against the radiator
- Re-check bumper bolts after the first trail runs
- Inspect the tube guard welds periodically
- Keep fog light wiring clear of the winch
Specifications
| Brand | TeraFlex |
|---|---|
| Part number | 4653230 |
| UPC | 843885033202 |
| Product type | Front bumper with hoop kit, Epic |
| Position | Front |
| Width | Mid |
| Material | Steel |
| Finish | Black powder coat |
| Tube guard | 1.75 inch mandrel bent |
| Winch fitment | Standard offset bolt pattern (not centered drum winches such as Warn Zeon) |
| Winch mount | Included |
| D-ring mounts | Included, integrated |
| Light mounts | Included |
| Related part | JK Vacuum Pump Relocation Bracket Kit 4403100 (2012 and newer) |
| Fit type | Direct fit |
Vehicle fitment
The manufacturer fitment list for 4653230 covers the 2007-2016 Jeep Wrangler (JK), in both 2-door and 4-door versions.
It fits 2007-2016 Wrangler JK models in 2-door and 4-door versions. Confirm your vehicle’s year, model and trim before ordering. Centered drum winches such as the Warn Zeon need a different bumper.
Installation notes
TeraFlex says 2012 and newer Wranglers require the use of the JK Vacuum Pump Relocation Bracket Kit, part 4403100, so plan for that before installation. The recessed winch mounting also frees grille space and radiator airflow when a taller winch is fitted.
What’s included
- Epic front bumper with mandrel bent tube guard
- Integrated winch mount
- Integrated D-ring mounts
- Light mounts
Not included: the winch, D-rings, lights and the vacuum pump relocation kit.
