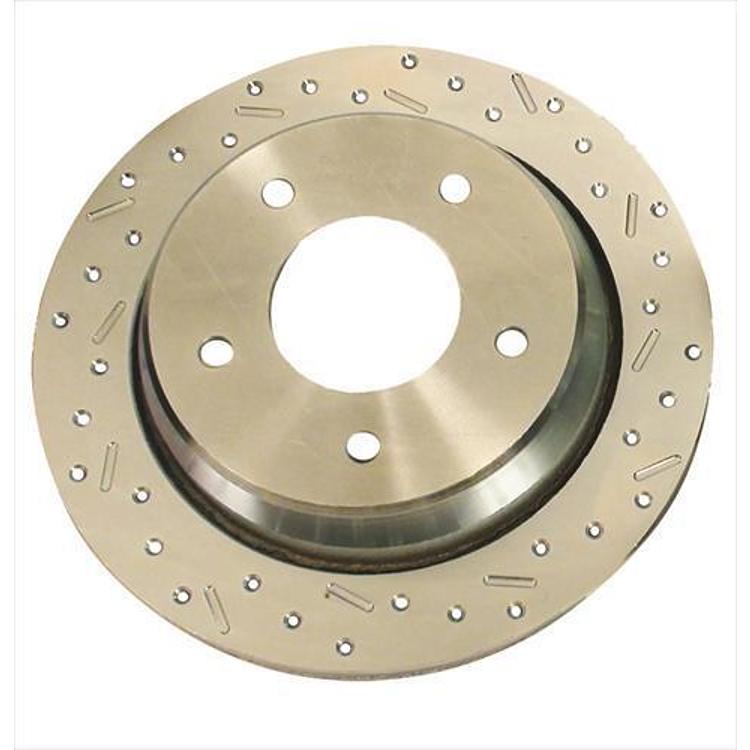

Stainless Steel Brakes Big Bite Crossed Drilled Brake Rotors – 23048AA3R

Stainless Steel Brakes

Shop Jeep Cherokee XJ Disc Brake Rotors on Amazon

Compare current versions and compatible options on Amazon, then check out with your Amazon account.

Slickrock 4X4 is a participant in the Amazon Associates Program. As an Amazon Associate we earn from qualifying purchases.

  • Passenger side front Big Bite cross-drilled rotor
  • Fits 1984–1989 Cherokee XJ, 1986–1987 Comanche, 1984–1989 Wagoneer SJ, 1987–1989 Wrangler YJ
  • Coated rotor with gas-venting holes and Turbo slots

Description

Overview

The Stainless Steel Brakes 23048AA3R is the passenger side counterpart in the Big Bite cross-drilled front rotor line. It mounts at the front right as a direct-fit rotor, and it fits the 1984–1989 Jeep Cherokee (XJ), 1986–1987 Jeep Comanche, 1984–1989 Jeep Wagoneer (SJ) and 1987–1989 Jeep Wrangler (YJ).

Stainless Steel Brakes says its drilled holes vent super heated gases and remove brake fade, while the Turbo slots hold a clean pad surface for maximum grip. The result is cooler operation, steady friction and better wet-weather stopping.

Key features

  • Passenger side front (right) position
  • Precision drilled holes vent heat and gases
  • Turbo slots keep the pad face clean
  • Runs cooler so friction holds for stopping power
  • Better braking when the road is wet
  • Rotor is coated

Matching a rotor pair

An axle needs one left and one right rotor, and the two should be installed as a matched pair with the same pads. Uneven rotor wear side to side can pull the truck during braking, so replacing both sides at the same time keeps stopping even.

Coated rotors can show light surface rust after sitting in damp weather. The rust usually wipes off with the first few stops as the pads clean the friction face. Deep pitting, grooves or cracks near the holes are signs the rotor needs replacing, not just cleaning.

  • Install the passenger side rotor on the front right hub only
  • Torque lug nuts in a star pattern
  • Check wheel bearing play before final assembly
  • Test the brakes at low speed after the first drive

Specifications

Brand Stainless Steel Brakes
Part number 23048AA3R
UPC 845249011123
Product type Big Bite cross-drilled brake rotor
Location Front
Position Front right (passenger side)
Rotor design Cross drilled
Coating Coated
Fit type Direct fit

Vehicle fitment

It is a right front rotor for the 1984–1989 Jeep Cherokee (XJ), 1986–1987 Jeep Comanche, 1984–1989 Jeep Wagoneer (SJ) and 1987–1989 Jeep Wrangler (YJ).

Model years later than those listed, such as the 1990 and newer Cherokee XJ, are not covered. Confirm your vehicle’s year, model and trim before ordering.

SKU: SSB23048AA3R Category:

Specification

Shipping weight 14.74 lbs
Package dimensions 12.00 × 11.00 × 2.00 in
brands

Fitment

VehicleYearsTrims
Jeep Cherokee (XJ)1984–1989Base, Chief, Laredo, Limited, Pioneer, Sport
Jeep Comanche1986–1987Base, Chief, Custom, Laredo, Pioneer, X, XLS
Jeep Wagoneer (SJ)1984–1989Base, Limited
Jeep Wrangler (YJ)1987–1989Base, Islander, Laredo, S, Sahara, Sport

Use “Select your vehicle” at the top of the page to check this part against your vehicle.

Questions & Answers

Is the 23048AA3R for the passenger side?

Yes. The 23048AA3R is the front right rotor. Its driver side partner is the 23048AA3L, and each axle needs one of each for a matched set.

Does the 23048AA3R fit a 1986 Jeep Comanche?

Yes. It fits 1986–1987 Comanche models, along with the 1984–1989 Cherokee XJ and Wagoneer SJ and the 1987–1989 Wrangler YJ, as a front right rotor.

Is the 23048AA3R slotted as well as drilled?

It is cross drilled and slotted. Precision drilled holes vent gases and heat, while the Turbo slots keep the pad face clean.

Why does a coated rotor look rusty after sitting?

Light surface rust often forms after the vehicle sits in damp weather. It usually clears after a few stops as the pads wipe the friction face. Heavy pitting or cracks around the drilled holes mean the rotor should be replaced.
