Overview

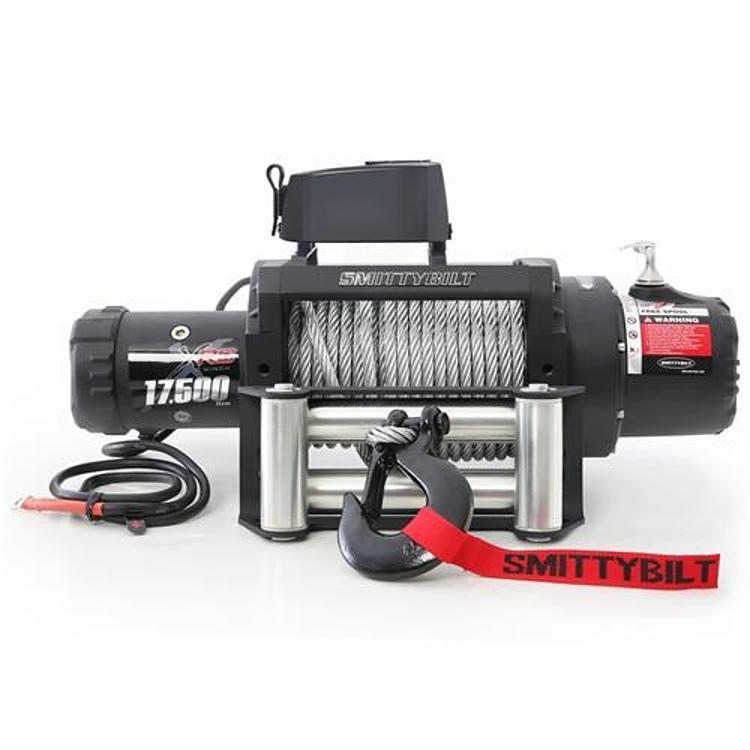

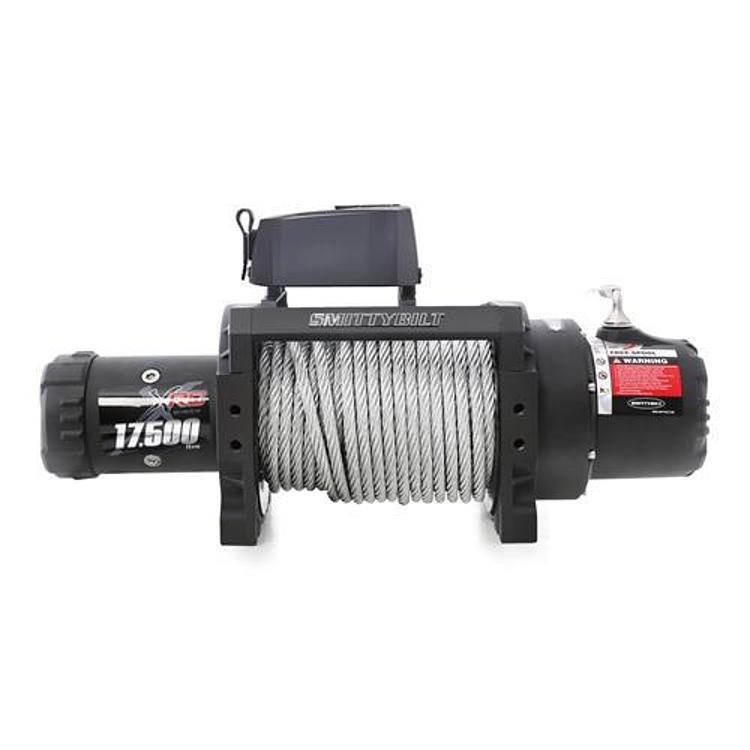

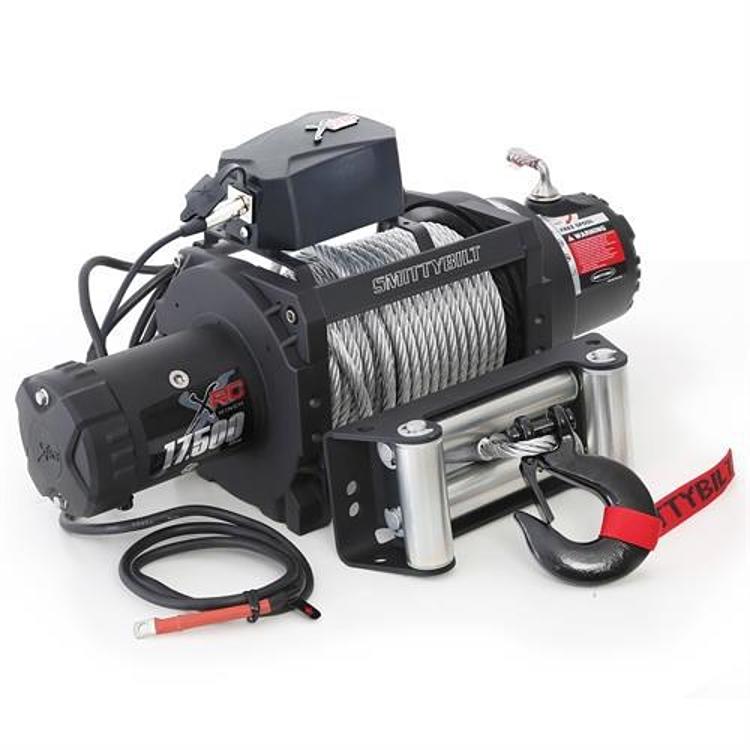

The Smittybilt 97417 is the XRC 17.5K GEN2 winch, rated for 17500 lb and fitted with cable and a four-way roller fairlead. It sits at the top of Smittybilt’s XRC GEN2 range, which Smittybilt describes as running from 9,500 lb to 17,500 lb.
The winch is powered by a series-wound 6.6 hp motor and a three-stage planetary gear system with revised gear ratios for more pulling power and quicker line speed. The body has a UV-resistant matte black finish, stainless steel hardware and oversized aluminum crossbars.

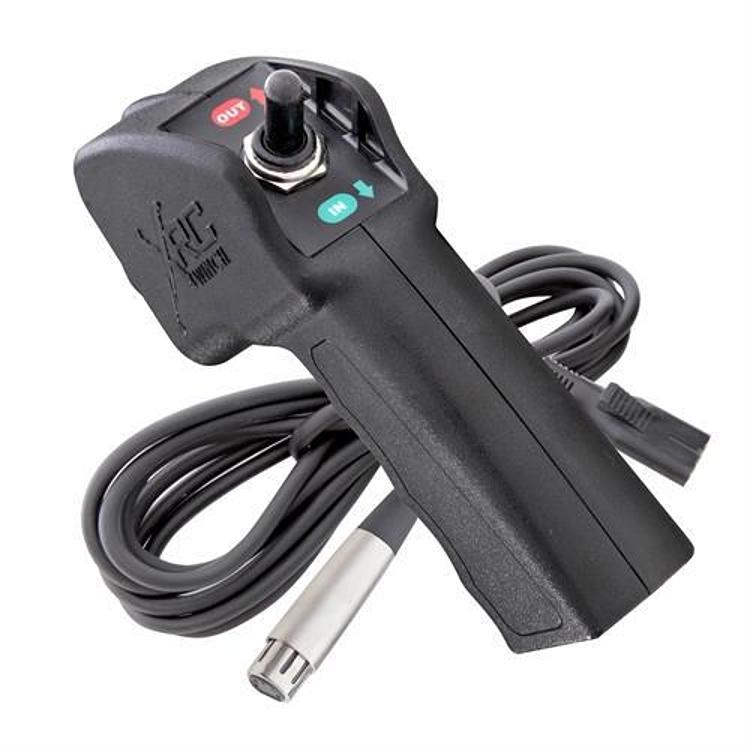

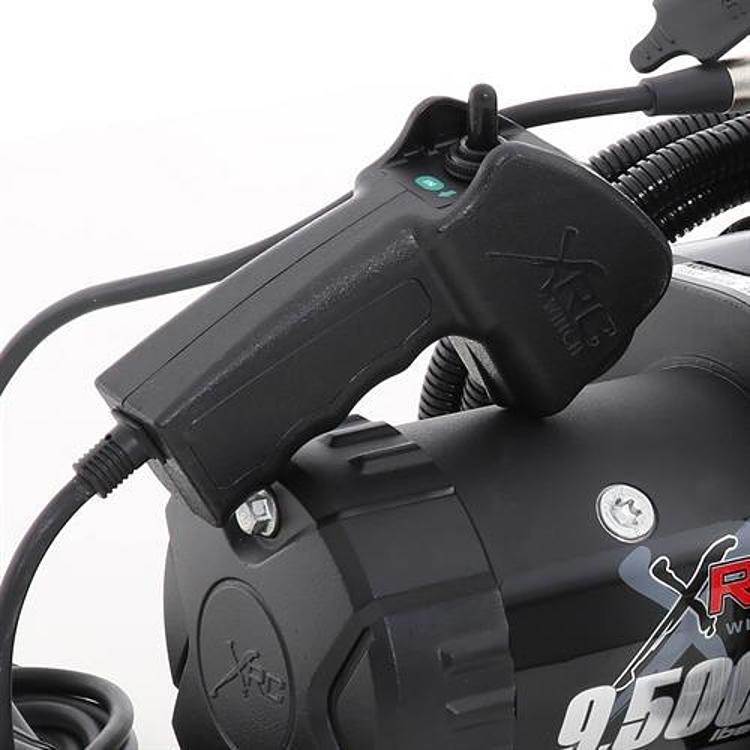

Each winch in the line includes a heavy-duty winch controller, a four-way roller fairlead, a forged steel tow hook and a redesigned solenoid box that mounts in three positions. The winch carries a Lifetime Mechanical Warranty and a 3 Year Electrical Warranty.
Buyers who want synthetic rope rather than cable should look at Smittybilt’s XRC Comp Series. The 97417 is the cable version, so its line type is cable.
Key features
- 17500 lb rated line pull
- Series-wound 6.6 hp motor
- Three-stage planetary gear system with revised ratios

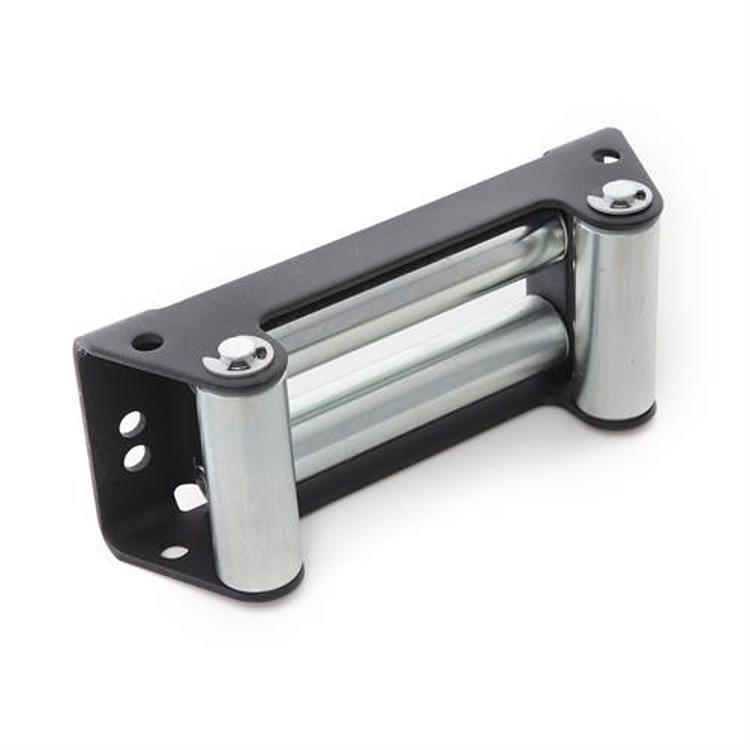

- Four-way roller fairlead and forged steel tow hook
- Solenoid box mountable in three positions
- UV-resistant matte black finish with stainless hardware
Mounting and load care

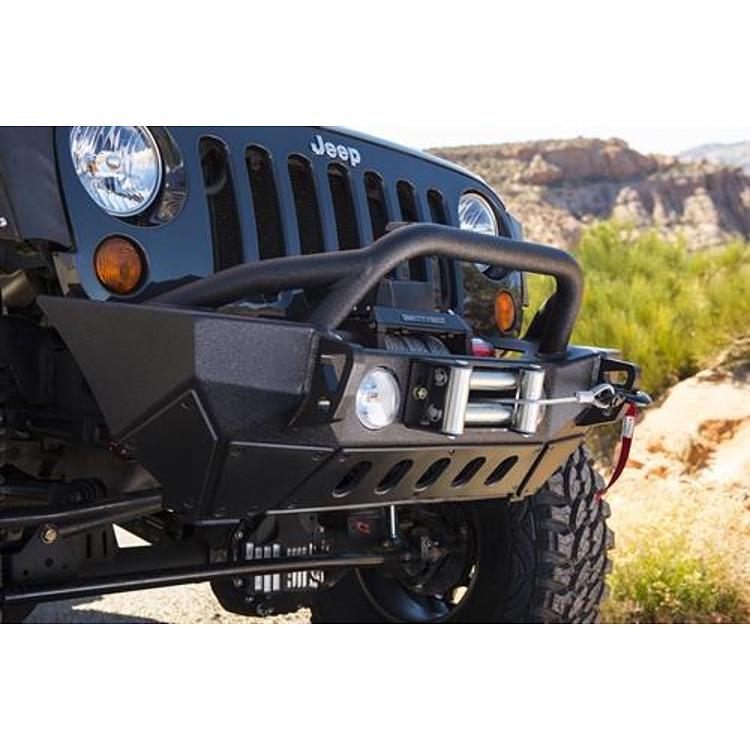

A winch is only as good as the structure it bolts to. Under a heavy pull the mount, bumper and frame all take load, so inspect the bolts and welds before each trip and re-torque fasteners after the first few runs. Look for cracks around the winch plate and any bracket movement, since loose hardware can shift the alignment of the fairlead and the line.

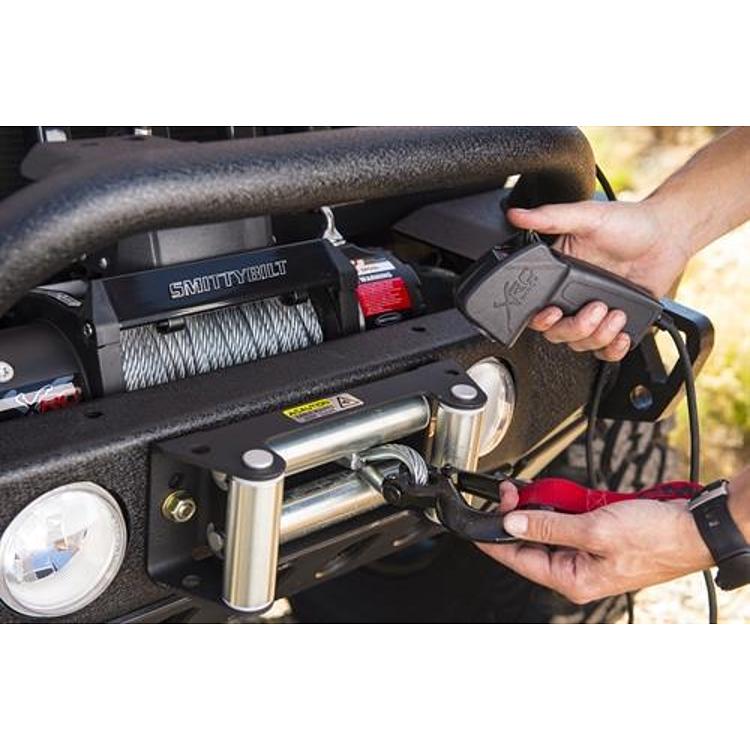

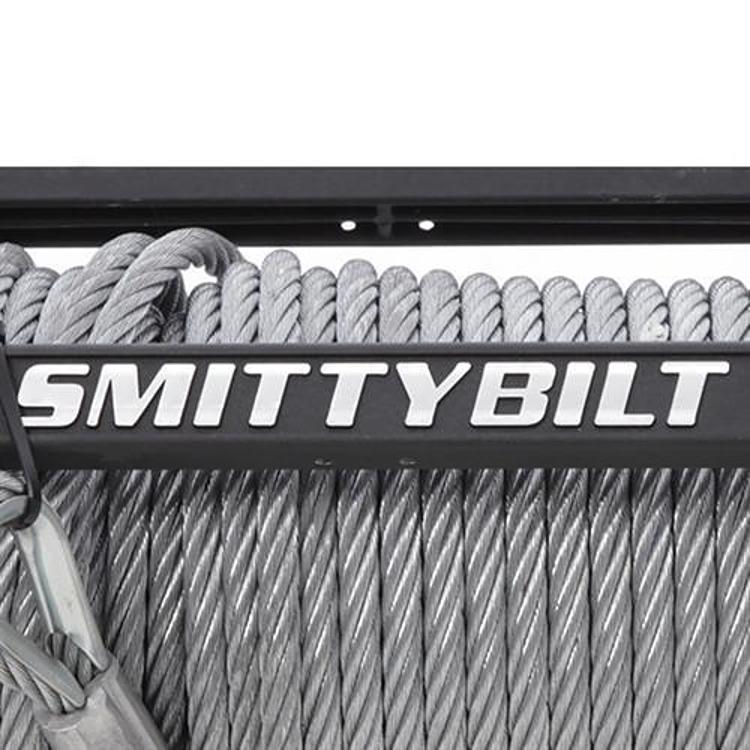

Line handling matters as much as the winch itself. Keep the cable spooled evenly under light tension, and replace it when it shows kinks, broken strands or flattened sections. A roller fairlead helps the cable feed without binding, but it does not replace a steady, controlled pull. Keep people out of the cable’s path, and use a damper on heavy loads so the line is controlled if it parts.
- Inspect the winch plate and bumper welds before trail use
- Check the cable for kinks, broken strands and flat spots
- Keep the solenoid leads clear of moving parts
Specifications
| Brand | Smittybilt |
|---|---|
| Part number | 97417 |
| UPC | 631410119503 |
| Rated line pull | 17500 lb |
| Motor | 6.6 hp, series wound |
| Gear system | Three-stage planetary |
| Fairlead | Four-way roller |
| Line type | Cable |
| Tow hook | Forged steel |
| Solenoid box | Mountable in three positions |
| Finish | UV-resistant matte black, stainless steel hardware, aluminum crossbars |
| Warranty | Lifetime mechanical, 3 year electrical |
Vehicle fitment
Fit depends on the bumper and winch plate on your vehicle. Confirm fit for your vehicle’s year, model and trim before ordering.
Confirm your vehicle’s year, model and trim before ordering.
Installation notes

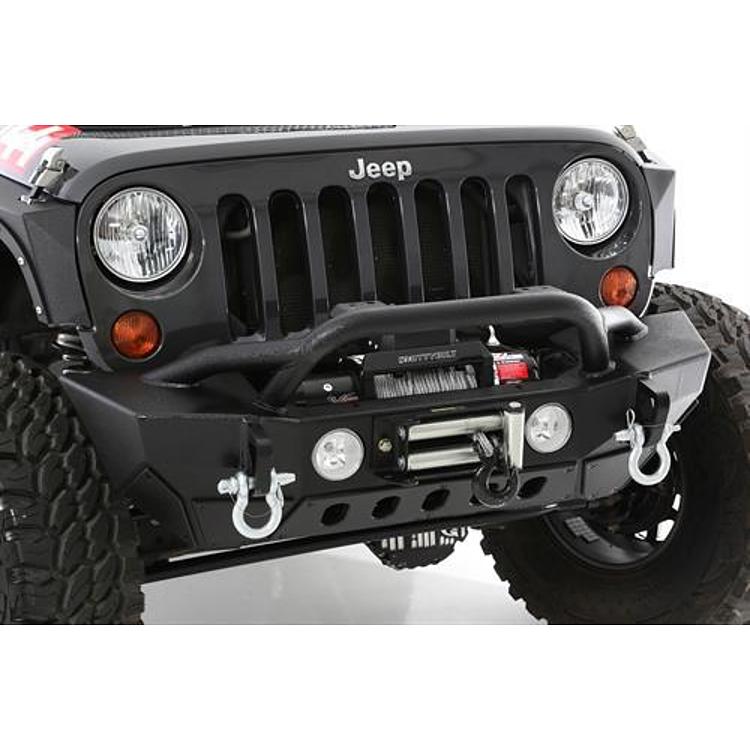

A 17500 lb winch puts a heavy load on its mount, so use a plate rated for the job. Set the solenoid box in one of its three positions where the leads reach without strain.
What’s included
The heavy-duty winch controller, forged steel tow hook and redesigned solenoid box come as standard equipment on the XRC winch. Confirm that mounting hardware and a winch plate are on hand before starting the installation.
