Smittybilt M1 Dodge Ram Rear Bumper with D-ring Mounts and Additional Rear Lights Included (Black) – 614802

Overview

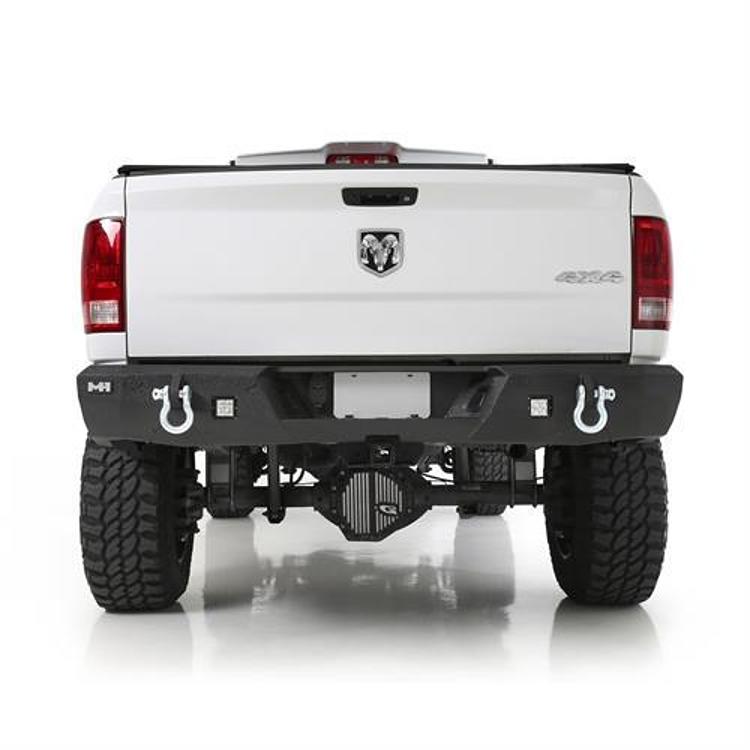

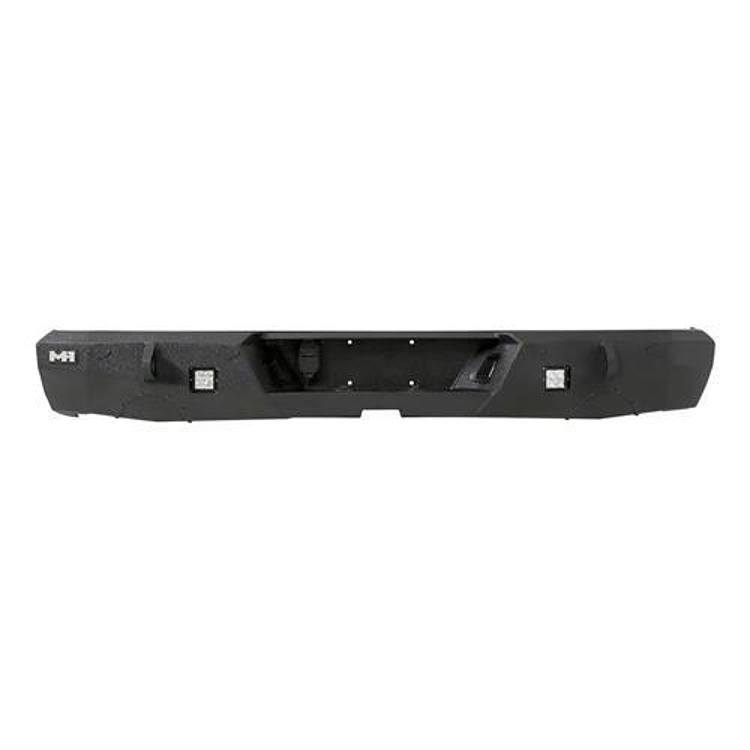

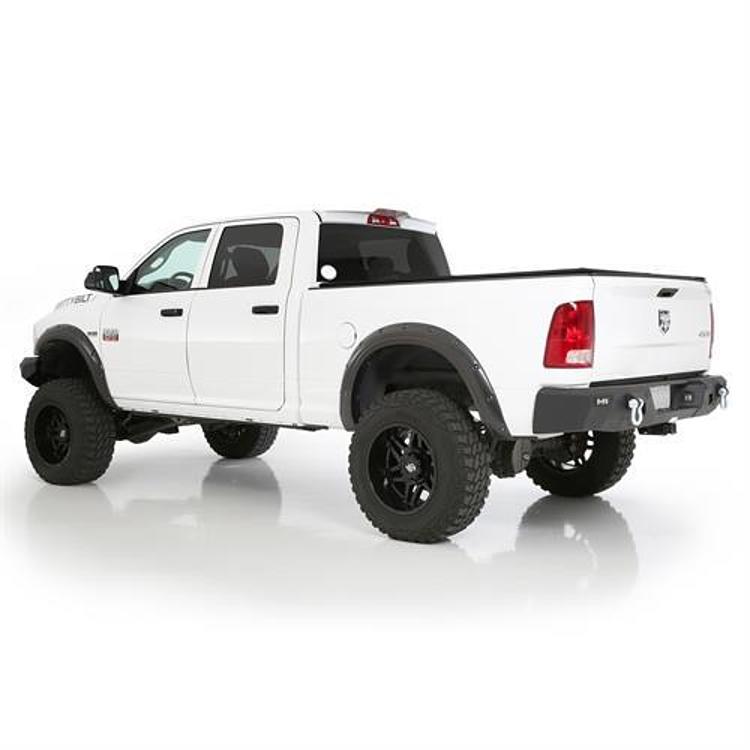

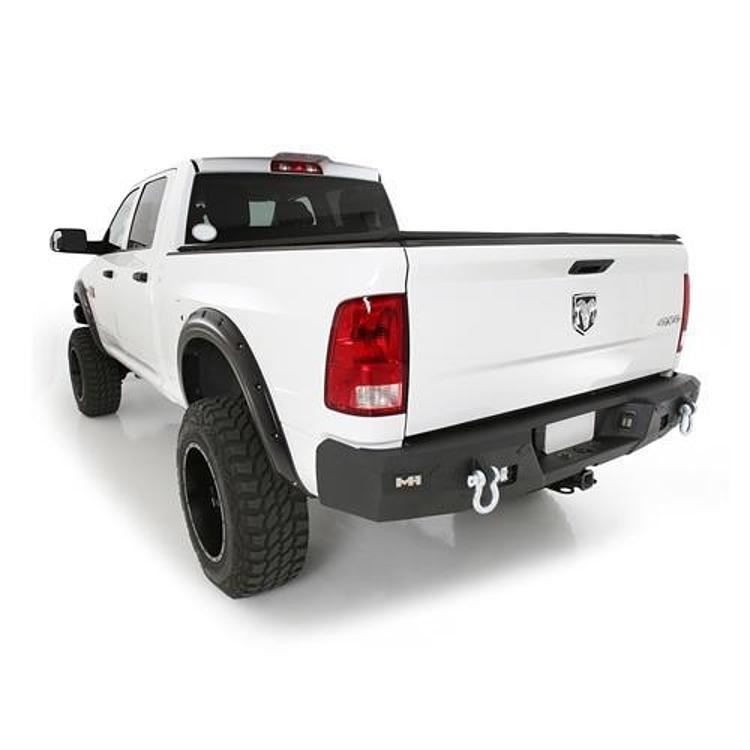

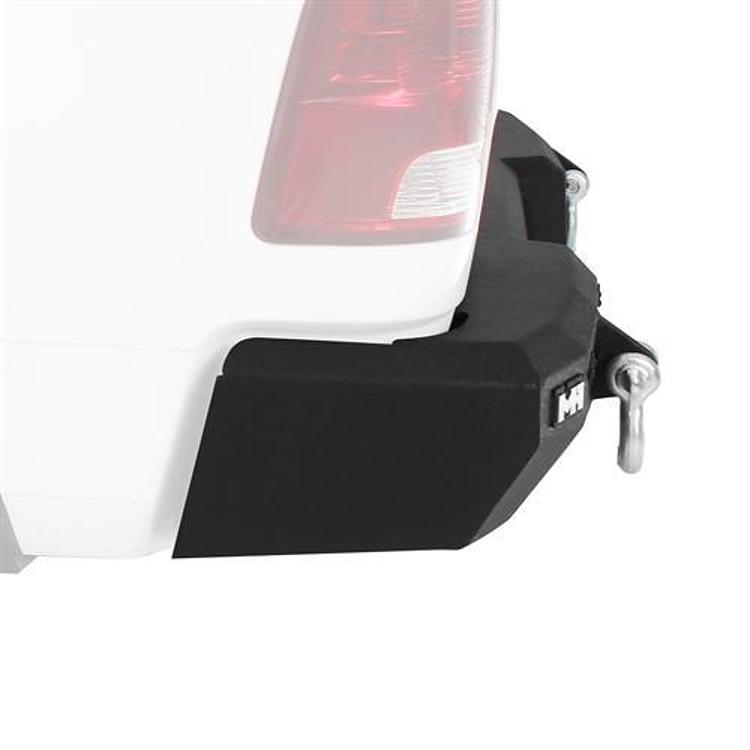

The Smittybilt 614802 is an M1 rear bumper with D-ring mounts and additional rear lights, made for Dodge Ram trucks. Confirm fit for your vehicle’s year, model and trim before ordering.

It is built from 3/16-inch cold roll steel with 1/4-inch mounting plates and has a two-stage matte black powder coat. Solid mount D-rings are welded on the inside and outside. A receiver hitch is included.

Key features

• Solid mount D-rings welded inside and out
• Additional rear lights included, per the product title
• Two-stage matte black powder coat finish
• 3/16-inch and 1/4-inch cold roll steel construction
• 1/4-inch mounting plates

Before fitting a rear bumper

A rear bumper with D-ring mounts is often used for recovery, so the mounts and the bumper frame share the load when a strap is pulled. Make sure the bumper is fitted to the frame so the mounts stay tight under strain. Re-check the bolts after the first few trail runs, since new steel bolted to a truck can settle.

Rear lights on a bumper need a clean power feed, a good ground and protection from road spray. Route the harness along the frame and secure it away from the tailgate hinge and exhaust. A hitch receiver also affects rear clearance, so check hitch length and height before loading the truck.

• Check tow hitch height after the bumper is fitted
• Route rear light wiring away from the exhaust
• Re-check mounting bolts after the first drives
• Inspect powder coat chips and touch them up early

Specifications

Vehicle fitment

Confirm fit for your Dodge Ram’s year, model and trim before ordering.

Confirm the year, model and trim of your Dodge Ram against the bumper before buying.

What’s included

The bumper, with its D-rings and the additional rear lights.
