Overview

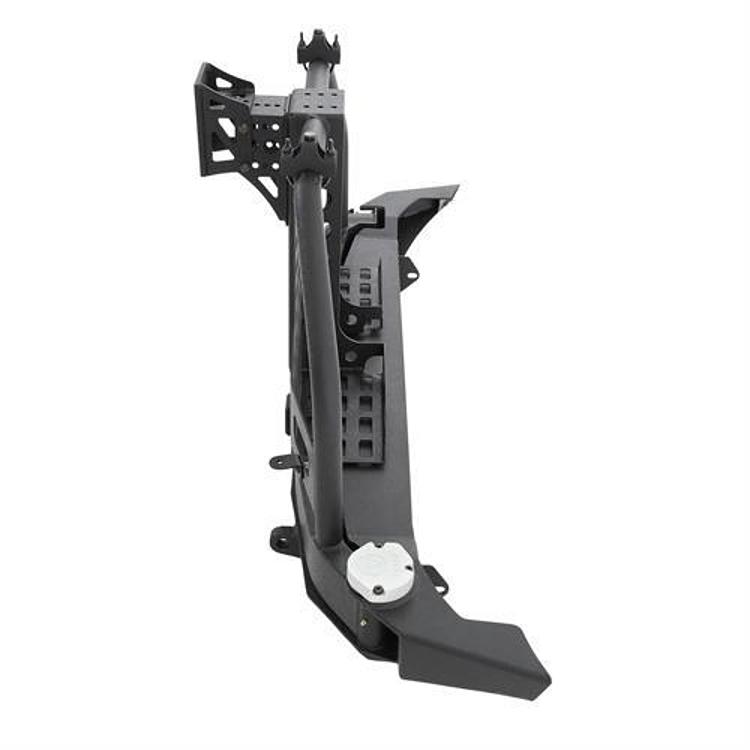

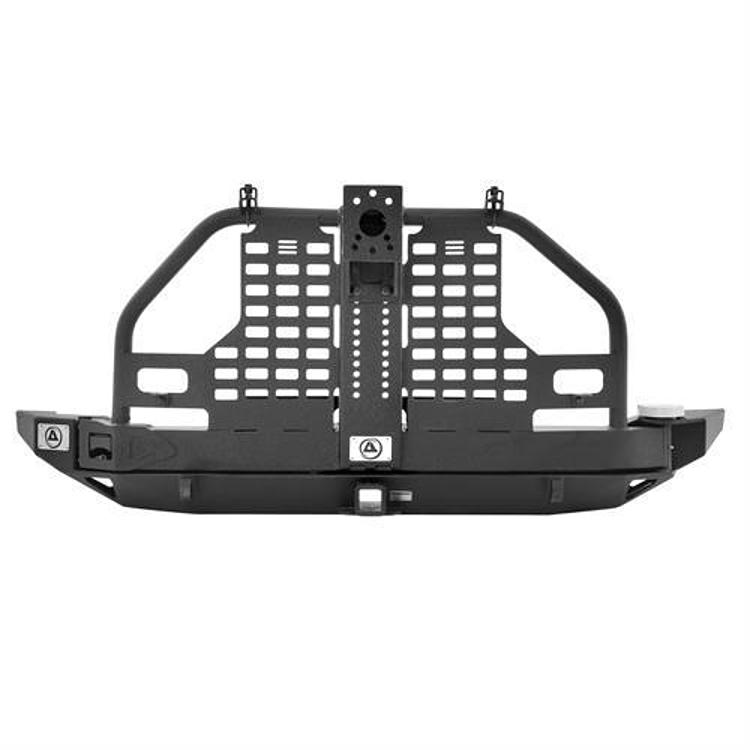

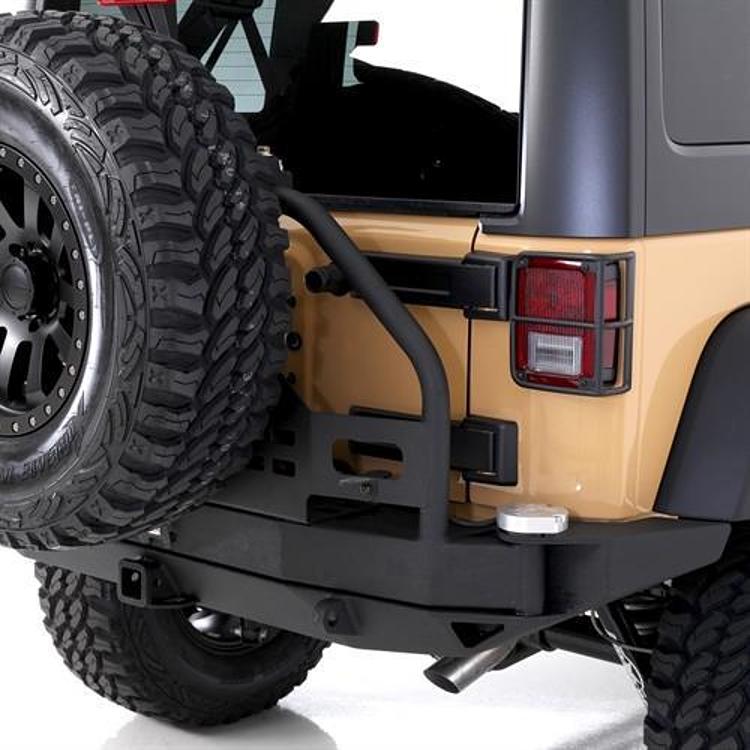

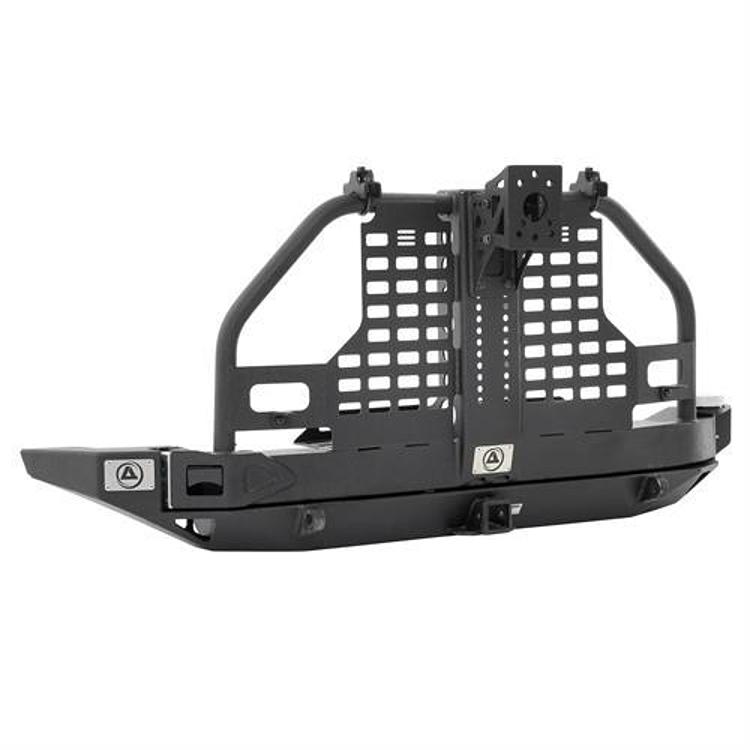

The Smittybilt XRC Atlas Rear Bumper and Tire Carrier, part number 76896, is a black steel rear bumper with a built-in swing-out tire carrier. It is made for 2-door and 4-door models and carries a tire up to 37 inches. Confirm fit for your vehicle’s year, model and trim before ordering.

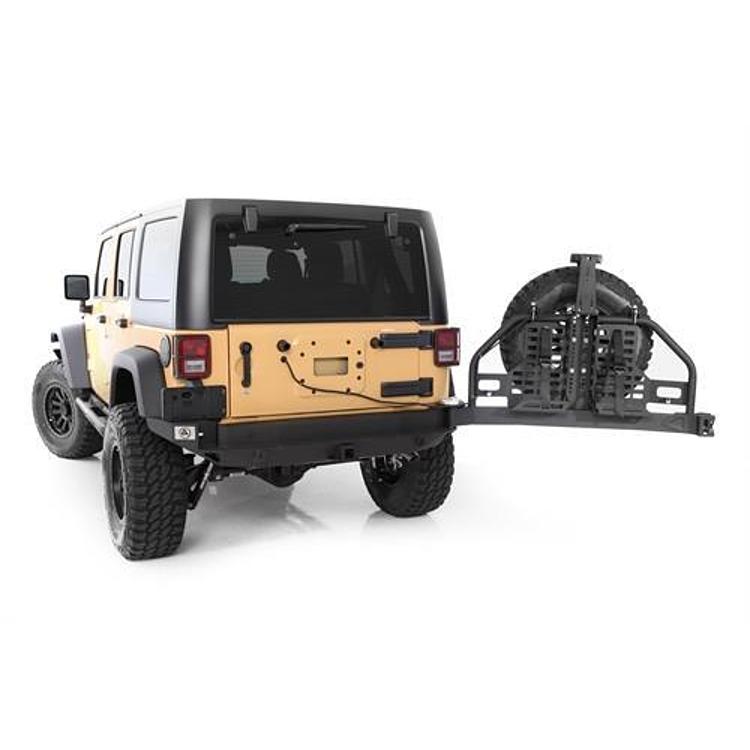

The tire carrier uses cam-style pin adjustment so the gate stows in the same position every time, and a double latch helps prevent accidental opening. The bumper includes a Class III rated hitch, mounting locations for a jerry can and a lift jack, and a bracket for the 3rd brake light. It is designed to meet stringent international pedestrian safety standards.
Key features
- Rear bumper and tire carrier in one assembly, for 2-door and 4-door models
- Accommodates tires up to 37 inches
- Cam-style pin adjustment for consistent gate stowing, plus a double latch against accidental opening

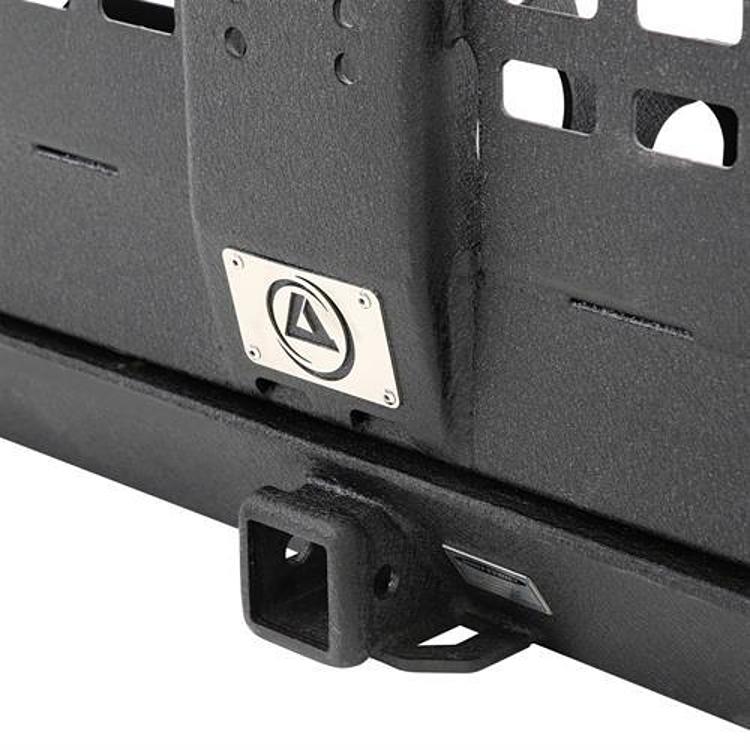

- Class III tow rated receiver hitch

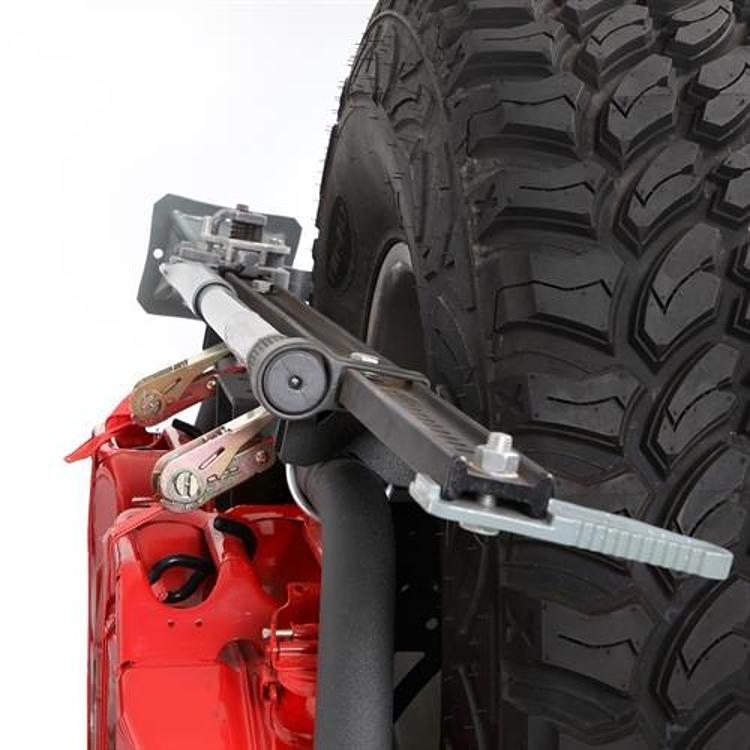

- Integrated mounting locations for a gas can and a jack (the jack and Hi-Lift are not included)
- Includes a 3rd brake light mounting bracket

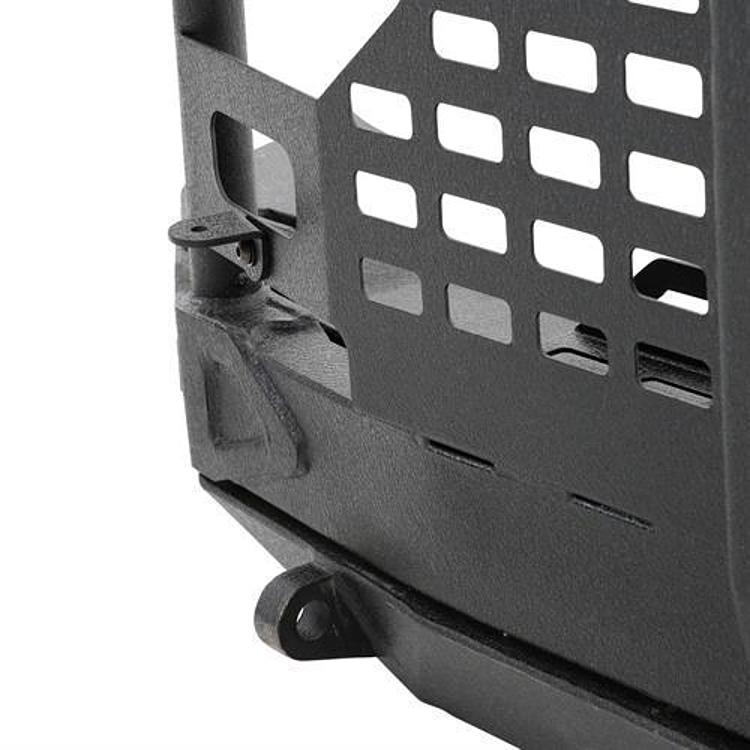

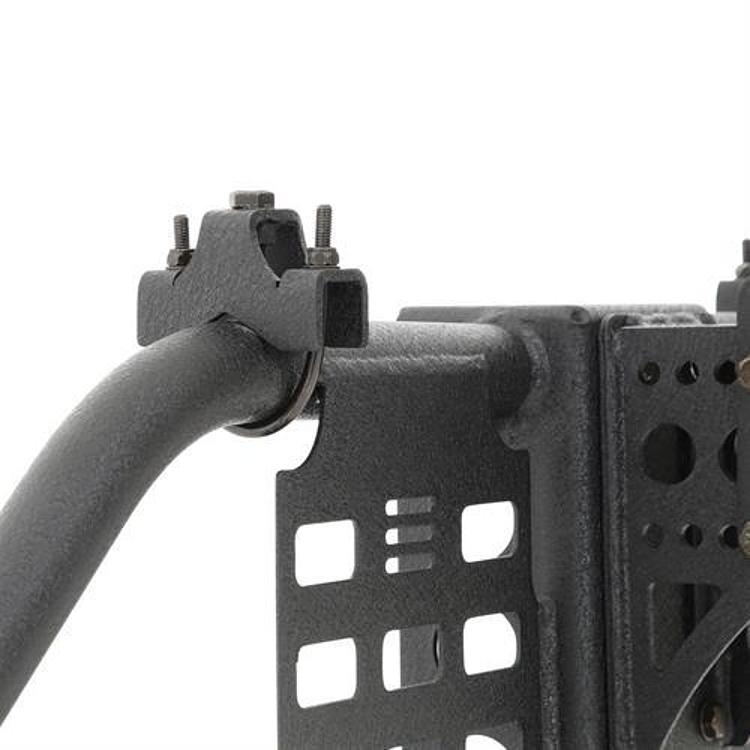

- MOLLE PALS compatible for multiple pouch mounting configurations
- 3/16 cold rolled steel with a two-stage textured matte black powder coat finish
Tire carrier and added weight

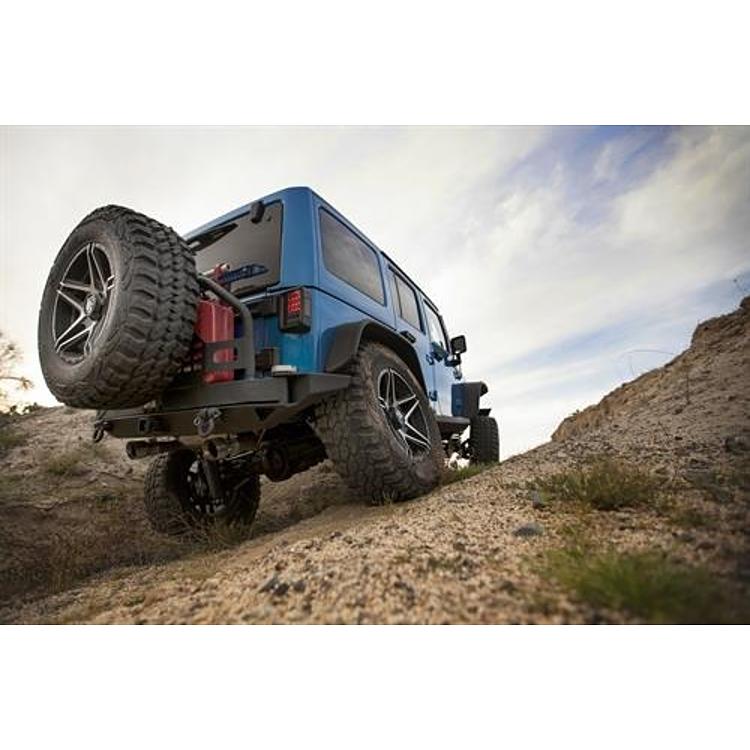

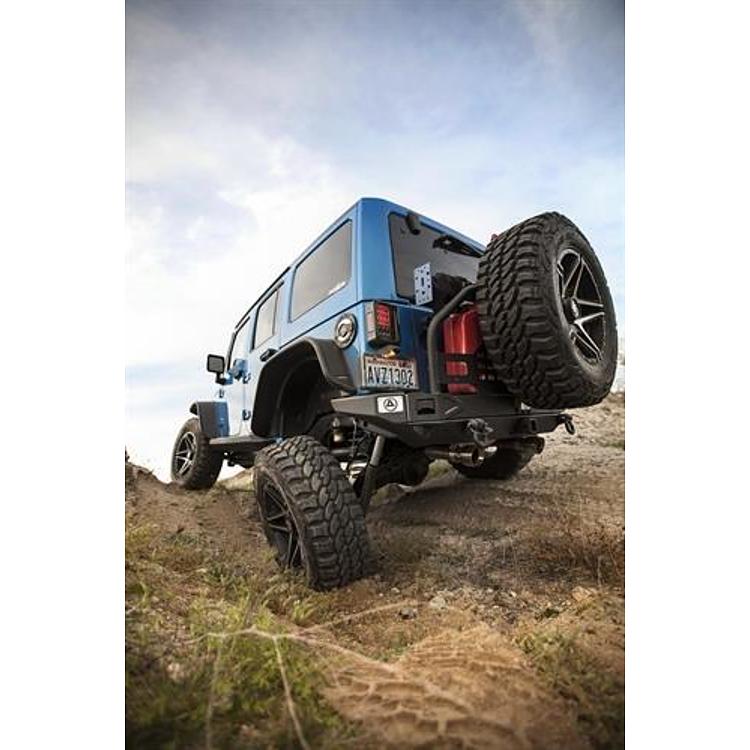

A rear bumper with a swing-out carrier changes how the back of the vehicle loads and moves. The spare tire adds weight well behind the axle, which can affect rear suspension travel and how the gate opens on uneven ground. Before buying, think about the tire size and weight you plan to carry, and whether your rear springs or shocks need an upgrade to handle that load.

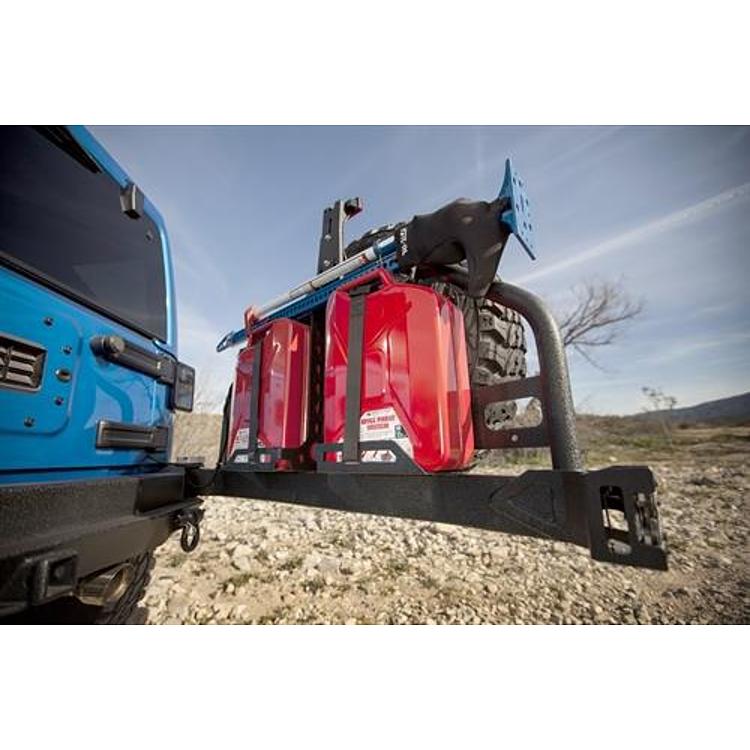

Accessories that mount to the bumper, such as a jerry can or a lift jack, add further weight and should be planned together. Keep the jerry can secured so it cannot swing into the gate or the lights. Check the latch and cam pin after rough trails, because loose hardware is a common cause of a rattling carrier. Replace worn bushings or bent brackets early, since they can change how the gate stows.
- Recheck hitch receiver tightness after heavy use
- Keep 3rd brake light wiring clear of moving parts
- Lightly grease the pivot points
Specifications
| Brand | Smittybilt |
|---|---|
| Part number | 76896 |
| UPC | 631410115956 |
| Product type | Rear bumper with tire carrier |
| Material | 3/16 cold rolled steel |
| Finish | Two-stage textured matte black, powder coat |
| Maximum tire size | 37 inches |
| Receiver hitch | Yes, Class III tow rated |
| Tire carrier | Yes, integrated |
| D-ring mounts | Included |
| Applicable models | 2-door and 4-door |
| Fit type | Direct fit |
| Warranty | 5-year limited |
Vehicle fitment
The 76896 is made for 2-door and 4-door models. Confirm the exact make, model and year range fit your vehicle before ordering.
Do not assume this bumper fits a particular Jeep or truck based on body style alone. Confirm your vehicle’s year, model and trim before ordering.
Installation notes

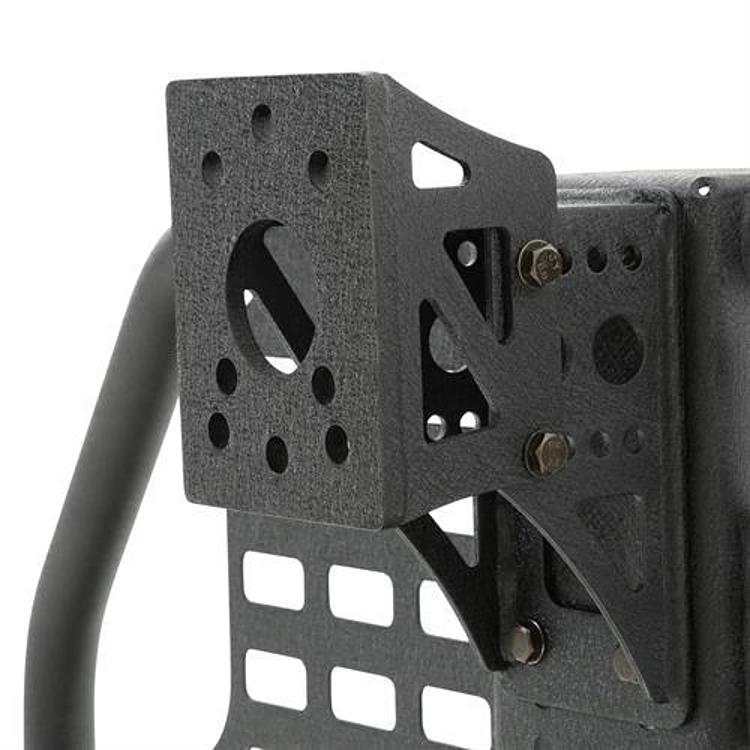

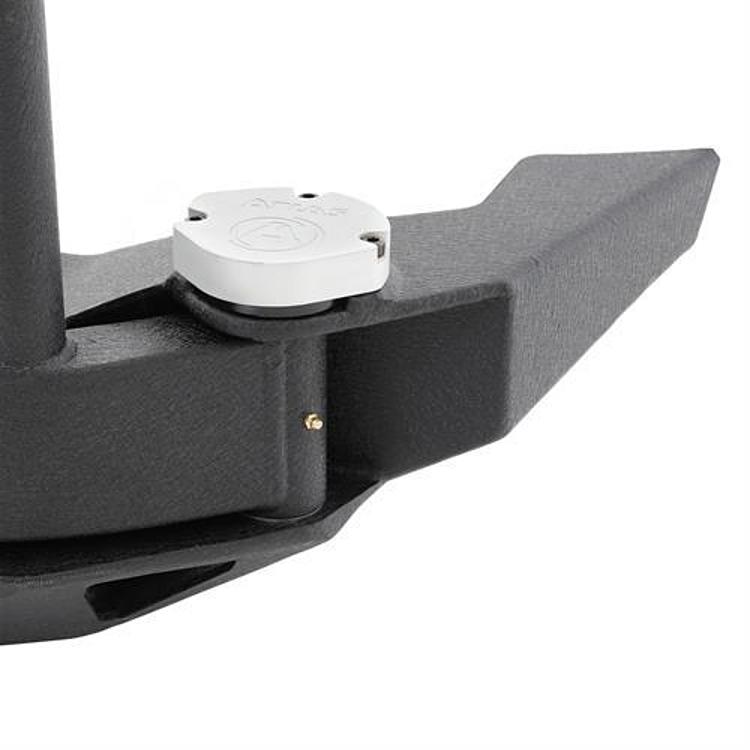

The tire carrier gate has a cam-style pin adjustment, which is the setting used to line up the gate so it stows correctly. The rear bumper provides a mounting bracket for the 3rd brake light, so plan for that light to be moved to the bracket.
What’s included
The rear bumper with integrated tire carrier, the Class III rated hitch, the 3rd brake light bracket and the D-ring mount.
Not included: the jack or Hi-Lift jack that mounts to the bumper’s lift jack location, and a jerry can for the gas can mount.
