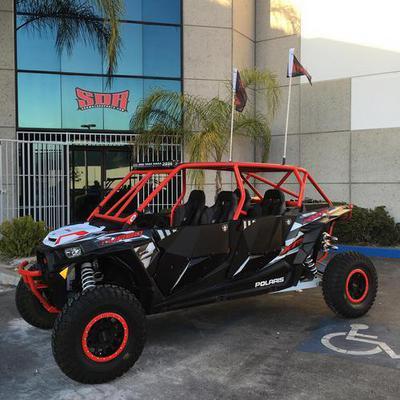

SDR Motorsports XPR-4 Sport Shorty Cage with Light Pocket – 710604-P

SDR Motorsports

Shop Polaris RZR XP 4 1000 UTV Cages on Amazon

Compare current versions and compatible options on Amazon, then check out with your Amazon account.

Slickrock 4X4 is a participant in the Amazon Associates Program. As an Amazon Associate we earn from qualifying purchases.

  • SDR Motorsports XPR-4 Shorty sport cage with light pocket, part 710604-P
  • One-piece welded structure that uses all six factory mounting points
  • Re-uses factory hardware and the factory doors
  • Front A-pillar mounts have a wiring pass-through
  • Fits 2015–2016 Polaris RZR XP 4 1000 and 2016 RZR XP 4 Turbo

Description

Overview

It fits 2015–2016 Polaris RZR XP 4 1000 models and the 2016 RZR XP 4 Turbo. The Shorty length uses all six factory mounting points with no extra trailer space over the stock length.

The cage is a one-piece, fully welded structure made from CNC laser notched and CNC bent DOM steel tubing. It strengthens the existing chassis, and it comes complete, unlike the multi-piece, bolt-together factory cage.

Key features

  • Uses all six factory mounting points
  • One-piece, fully welded structure
  • CNC laser notched and CNC bent DOM steel tubing
  • B-pillar floor mounts cut and bent from 3/16-inch plate steel
  • Welded door hinge mounts for factory doors and SDR’s Hi-Bred door system
  • Light pocket

Before installing a cage

A roll cage is a structural part, so check the mounting points before any work starts. Clean the factory mounting surfaces, and inspect the bolts and factory hardware for corrosion or cracks, replacing anything worn. A cage that bolts to the existing chassis depends on those points, so weak or damaged mounts reduce what the cage can do in a rollover.

Wiring and accessories need planning too. Route harnesses through the A-pillar pass-through and keep wires clear of moving parts and sharp edges. Doors, nets and seats should be set up after the cage is in place, with clearance checked at the hinges. Re-check all fasteners after the first few trail runs, since new cages can settle as the hardware seats.

  • Check the factory mounts for corrosion before fitting
  • Re-torque fasteners after the first trail runs
  • Keep harness runs away from sharp tube edges

Specifications

Brand SDR Motorsports
Part number 710604-P
Type Sport cage, Shorty length
Tubing DOM steel, CNC laser notched and CNC bent
B-pillar floor mounts 3/16-inch plate steel
Mounting Six factory mounting points
Wiring Pass-through in the front A-pillar mounts
Doors Factory doors and most aftermarket bolt-on doors
Light pocket Yes

Vehicle fitment

This cage fits 2015–2016 Polaris RZR XP 4 1000 models and 2016 RZR XP 4 Turbo units.

The list does not include 2017 and later RZR XP 4 models, or RZR XP 1000 models. Confirm your vehicle’s year, model and trim before ordering.

Installation notes

The cage mounts to the six factory points and re-uses the factory hardware. The front A-pillar mounts have a wiring pass-through, so wiring can run through the cage tubes. The B-pillar floor mounts are thicker than the factory parts they replace.

What’s included

A complete sport cage.

Not included: Confirm whether doors are part of your order. The cage is designed to work with factory doors and most aftermarket bolt-on doors.

Fitment

VehicleYearsTrims
Polaris RZR XP 4 10002015–2016EPS Base
Polaris RZR XP 4 Turbo2016EPS Base

Use “Select your vehicle” at the top of the page to check this part against your vehicle.

Questions & Answers

Which RZR models does the SDR XPR-4 Shorty cage fit?

It fits 2015–2016 Polaris RZR XP 4 1000 models and the 2016 RZR XP 4 Turbo. Confirm fit for your vehicle's year, model and trim before ordering.

Does the cage use the factory mounting points?

Yes. The Shorty cage uses all six factory mounting points and re-uses the factory hardware, with no extra trailer space over the stock length.

Will factory doors fit this cage?

Factory doors work with this cage, because the welded door hinge mounts are built for them. The cage also works with SDR's Hi-Bred door system and most aftermarket bolt-on doors.

How often should a roll cage be inspected?

Inspect the cage and its mounts after any hard impact or rollover, and check welds and fasteners at regular service intervals. Look for cracks around the mounting points and any loose bolts.

How should lights be wired through a cage with a light pocket?

Plan the light wiring before mounting the light, and route it through the pass-through in the front A-pillar mounts. Fuse each circuit close to the power source and keep the wire clear of sharp edges.
