Overview

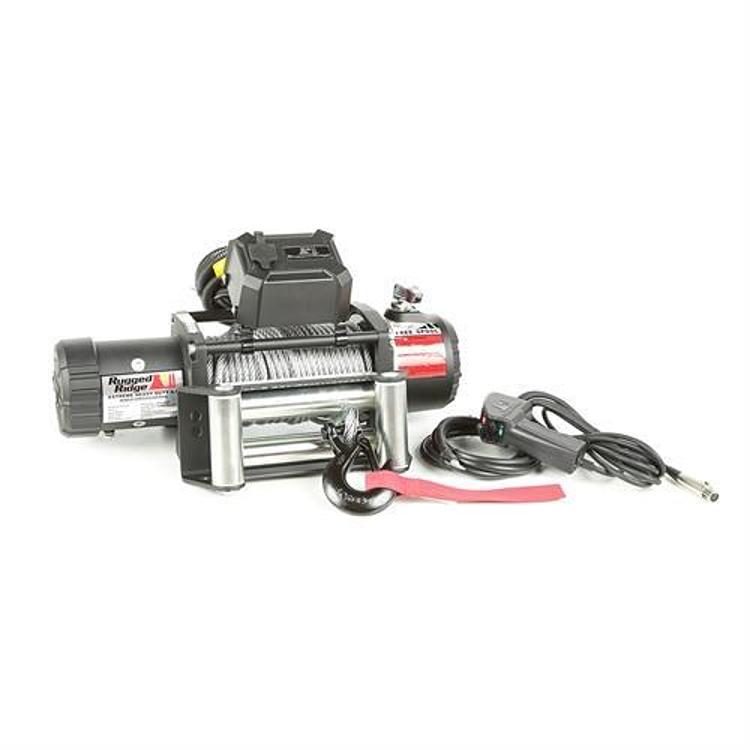

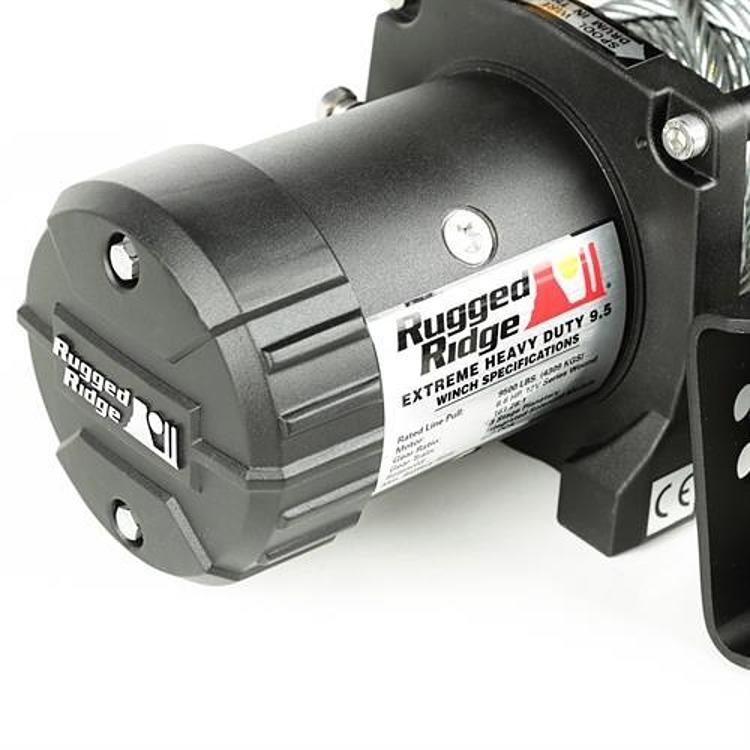

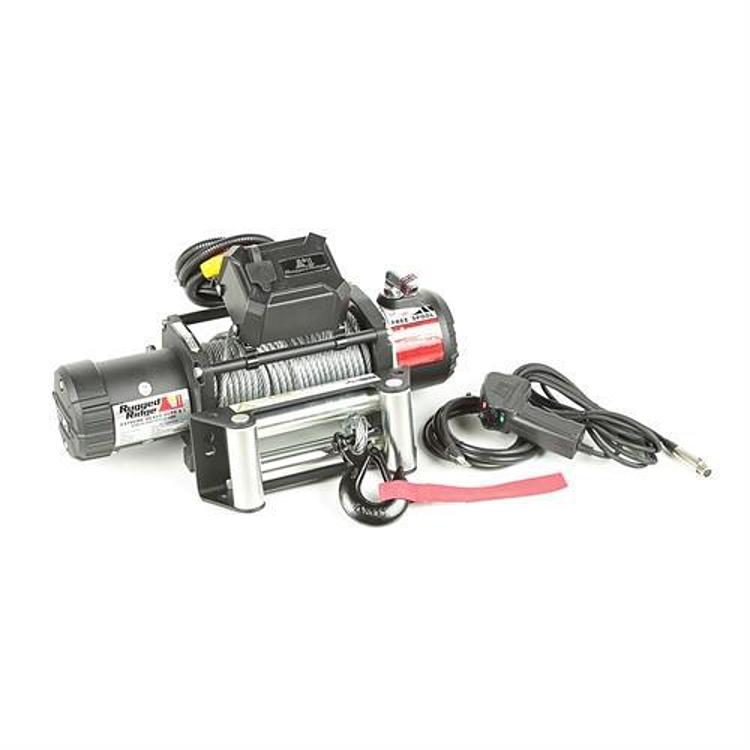

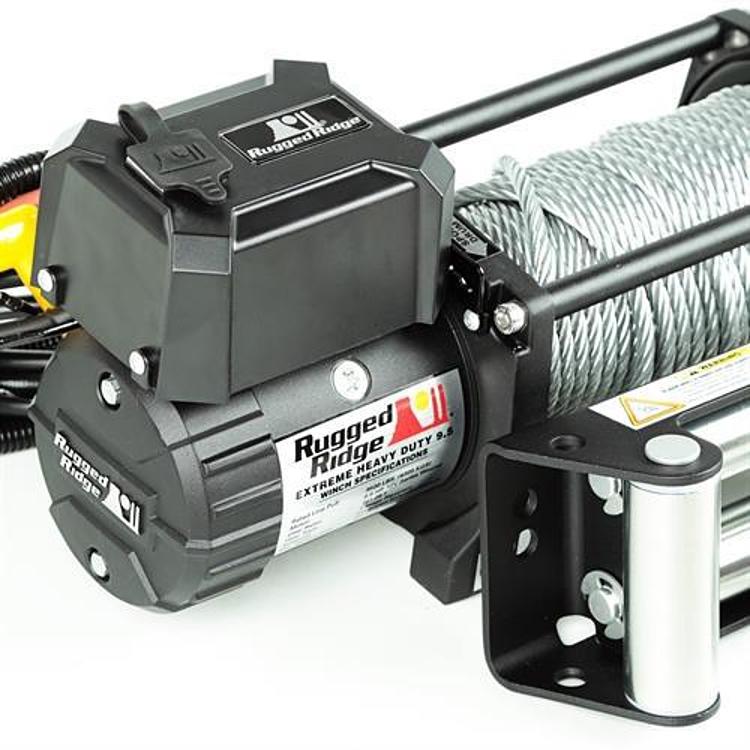

The Rugged Ridge Nautic 9.5 is a waterproof 9,500 lb winch, part number 15100.05, supplied with steel cable. It has a 5.5 HP series wound motor, an X-braced gearbox housing and a 3-stage planetary gear box with a 172.8:1 ratio. Rugged Ridge rates the solenoid, motor and gearbox as IP67 waterproof, which the company says keeps performance consistent in wet conditions.
The Nautic series is a heavy-duty line of Rugged Ridge winches, with stainless hardware on the body to resist rust. It is a universal fit design, so it is not tied to one specific vehicle, and fit depends on the bumper or mount you use.
Key features
- 9,500 lb line pull
- IP67 waterproof solenoid, motor and gearbox
- X-braced gearbox housing and motor cap for added strength
- Light mount roller fairlead for up to two off-road lights
- Stainless hardware on the winch body
- Powder-coated latch hook with 94 in of cable
Waterproofing and wet use
Water is one of the main causes of winch failure, especially where the solenoid and motor connections sit low on a bumper. Sealed electrical parts help, but terminals still need to stay clean and dry. Check connectors after fording water or driving through deep mud, and coat exposed terminals with dielectric grease if they show corrosion.

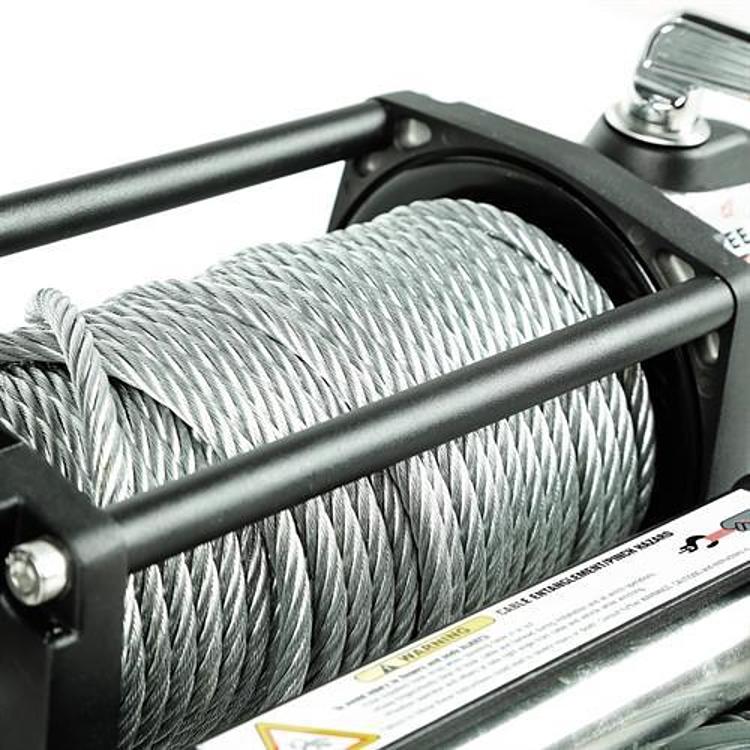

Steel cable needs its own care. Keep it wiped down after wet use, look for kinks and flat spots, and replace it when strands break or the wire looks rusty at the core. Stainless fasteners resist corrosion, but they still need occasional inspection for loosening under vibration.
- Inspect solenoid connectors after water crossings
- Wipe steel cable dry and check for rust
- Recheck fasteners after rough trail use
Specifications
| Brand | Rugged Ridge |
|---|---|
| Part number | 15100.05 |
| UPC | 804314288167 |
| Rated line pull | 9,500 lbs |
| Motor | 5.5 HP series wound |
| Gear train | 3-stage planetary |
| Gear ratio | 172.8:1 |
| Waterproof rating | IP67 (solenoid, motor and gearbox) |
| Brake | Automatic load holding, in drum |
| Cable | 94 in of 21/64 in diameter steel cable |
| Hook | Powder-coated latch hook |
| Fairlead | Roller, light mount style |
| Remote control | 12 ft all-weather cable remote controller |
| Hardware | Stainless steel on winch body |
| Fitment | Universal fit |
Vehicle fitment
No specific year, make, model or trim applies to this universal fit winch. Confirm bumper and mounting compatibility before installing the winch.
Confirm your vehicle’s year, model and trim before ordering.
Installation notes

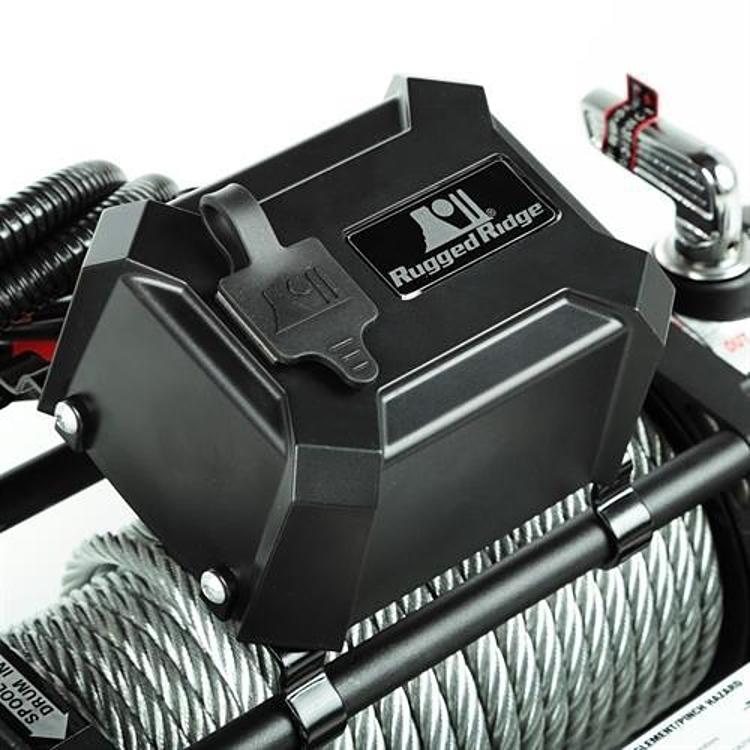

The solenoid box can mount over the cable or over the motor and at several angles, so choose the position that clears your bumper before drilling. Wire off-road lights with their own fused leads, and check local road-use rules before fitting them.
What’s included
Included are 94 in of 21/64 in diameter steel cable, a powder-coated latch hook, the 12 ft all-weather remote controller and the solenoid box.
Not included: off-road lights. The roller fairlead can mount up to two lights, but off-road lights must be sourced separately.
