Rubicon Express 4.5 Inch Super-Flex Short Arm Lift Kit with Rear Leaf Springs and Mono Tube Shocks – RE6130M

Rubicon Express

Shop Jeep Cherokee XJ Lift Kits on Amazon

Compare current versions and compatible options on Amazon, then check out with your Amazon account.

Slickrock 4X4 is a participant in the Amazon Associates Program. As an Amazon Associate we earn from qualifying purchases.

  • 4.5 in Super-Flex short arm lift kit for the 1984–2001 Jeep Cherokee (XJ)
  • Lift height range 3 to 4.99 in; coil springs at the front, leaf springs at the rear
  • Shocks, PT-Meg Super-Ride bushings and U-bolts for a Dana 35 axle included
  • Chrysler 8.25 axle requires part RE1225, not included
  • Part number RE6130M

Description

Overview

It is a 4.5 in Super-Flex short arm lift kit for the 1984–2001 Jeep Cherokee (XJ). It replaces the stock XJ suspension as a complete system rather than adding to it, and it lifts the vehicle to 4.5 in.

The front control arms are Super-Flex arms that allow caster adjustment. The kit includes front tuned coil springs, rear leaf springs and the other lift components. Shocks are included, and the lift height range is 3 to 4.99 in.

Key features

  • Super-Flex short arm front control arms, upper adjustable and lower fixed
  • Serviceable Super-Flex spherical ball joints
  • New PT-Meg Super-Ride bushings
  • Adjustable front track bar
  • Front tuned coil springs and rear leaf springs
  • Shocks included

Alignment and driveline after lifting

Any short arm lift changes the geometry of the front suspension, which moves the steering and caster settings away from factory values. Caster and toe should be checked after installation, and the adjustable control arms are the means of bringing the front end back into a usable range. Because the rear uses leaf springs, the rear axle may also shift under load, so a quick check of the rear pinion angle is worthwhile.

Raising the body changes the angles at the driveshafts and the transfer case output. Vibration at highway speeds is a common sign that the angles need attention. Confirm that the brake lines and wiring have enough slack after the lift, since the suspension moves more than it did at the factory height.

  • Check caster and toe after installation
  • Inspect the driveline angles at both ends of the shaft
  • Confirm brake line and wiring slack
  • Re-torque suspension fasteners after the first drives

Specifications

Brand Rubicon Express
Part number RE6130M
Suspension type Short arm
Super-Flex type Super-Flex short arm
Lift height range 3 to 4.99 in
Front springs Tuned coil
Rear lift method Leaf springs
Shocks Included
Axle U-bolts For Dana 35
Chrysler 8.25 axle Requires RE1225
Fitment Direct fit

Vehicle fitment

This kit fits 1984–2001 Jeep Cherokee (XJ) models. It is made for the XJ only, and other Jeep models and other Cherokee generations are not covered. Confirm your vehicle’s year, model and trim before ordering.

The list covers only the XJ Cherokee. Other Jeep models and other Cherokee generations are not included.

Confirm your vehicle’s year, model and trim before ordering.

Installation notes

A Chrysler 8.25 axle requires the RE1225 part, which is not included. Because the kit replaces the front suspension and changes ride height, have the alignment checked after installation, and check driveline angles as well.

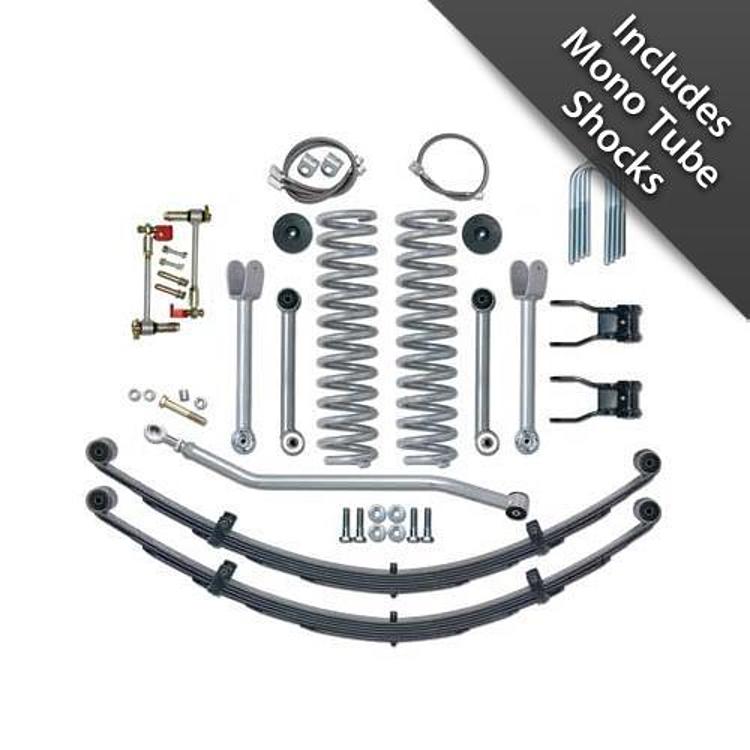

What’s included

Adjustable upper and fixed lower front control arms, Super-Flex spherical ball joints, an adjustable front track bar, front tuned coil springs, rear leaf springs, New PT-Meg Super-Ride bushings, shocks and U-bolts for a Dana 35 axle. Not included: the RE1225 part needed for a Chrysler 8.25 axle.

SKU: R/ERE6130M Category:

Specification

Shipping weight 195.10 lbs
Package dimensions 48.00 × 12.00 × 12.00 in
brands

Fitment

VehicleYearsTrims
Jeep Cherokee (XJ)1984–2001Base, Briarwood, Chief, Classic, Country, Laredo, Limited, Pioneer, SE, Sport

Use “Select your vehicle” at the top of the page to check this part against your vehicle.

Questions & Answers

Will the RE6130M fit a 1999 Jeep Cherokee XJ?

Yes. The kit fits 1984–2001 Jeep Cherokee (XJ) models, which includes 1999. Confirm your exact XJ model year and trim before ordering.

Does the RE6130M work with a Chrysler 8.25 axle?

Only with the RE1225 part. A Chrysler 8.25 axle needs RE1225, which is not included in the kit, so order it separately before installing.

What is the lift range of the RE6130M?

The kit has a lift height range of 3 to 4.99 in, although it is named a 4.5 in lift. Shocks are included, and the rear uses leaf springs.

When should I check the driveline after a lift?

Check driveline angles after any lift that changes ride height, because higher suspension changes the u-joint angles. Vibration at highway speeds is a common sign that the angles need attention.
