Overview
The Rubicon Express RE7122 is a 3.5-inch standard coil lift kit for the Jeep Wrangler JK, sold without shocks. It fits the 2007-2018 Jeep Wrangler (JK). The kit is a budget-minded suspension package designed for a smooth ride on the road and on the trail, and it allows 33-inch or 35-inch tires.

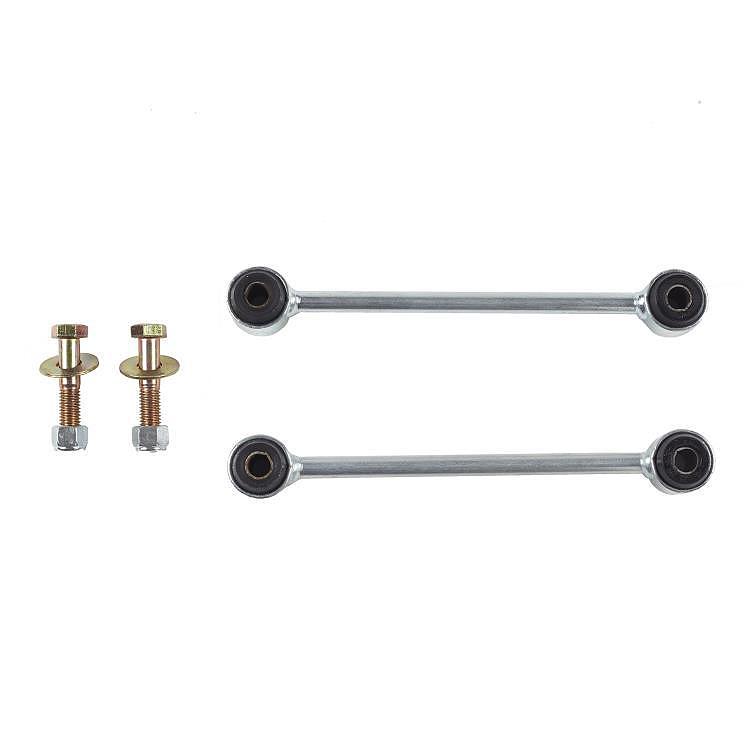

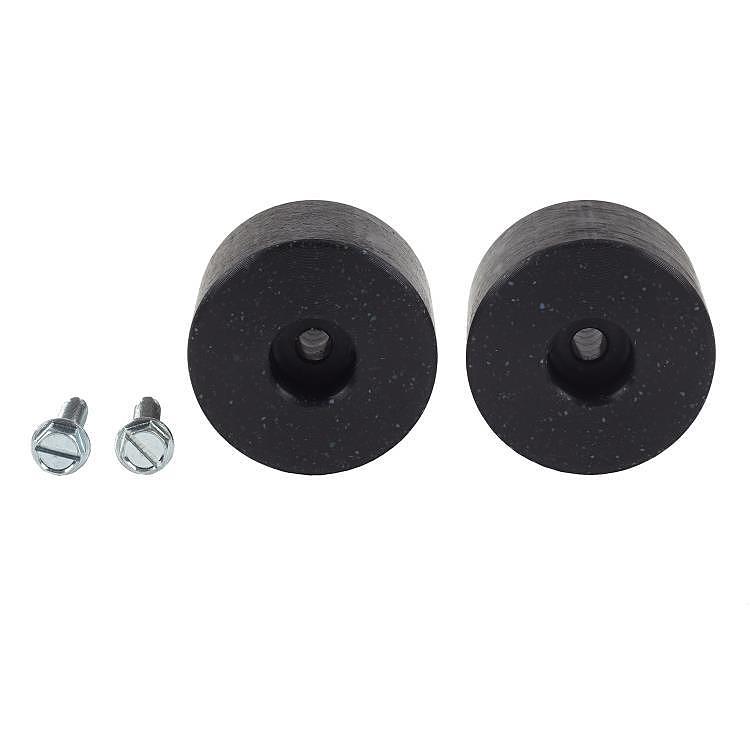

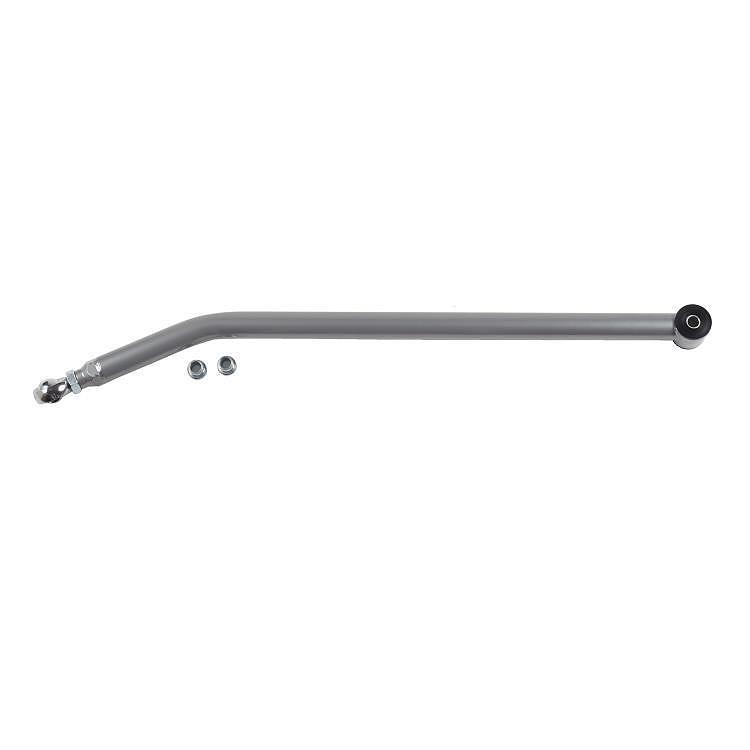

The kit includes front and rear replacement coil springs, front and rear cam bolts for caster and pinion adjustment, front and rear bump stops, a front adjustable track bar, a rear track bar bracket and extended sway bar end links. The control arms and other components stay in place. It covers a 3 to 4.99-inch lift range.
Key features
- 3.5-inch lift height, within the 3 to 4.99-inch range
- Front and rear replacement coil springs
- Front and rear cam bolts for caster and pinion adjustment
- Front and rear bump stops
- Front adjustable track bar
- Rear track bar bracket
- Extended sway bar end links
- Allows 33-inch or 35-inch tires
Alignment after a coil lift
Cam bolts change caster and pinion angle, so they are set with an alignment rack and checked again after the first drives. Because the control arms stay in place, alignment is the main check after the install. Set the caster first, then confirm pinion angle, since changing one often shifts the other.
Bump stops and a front adjustable track bar help keep the axle centered as the suspension compresses and the wheel turns. Worn track bar ends and bushings are common on Wranglers that have seen trail use, so check them during the install. Cracked bump stops and loose sway bar links are also worth catching early.
- Inspect track bar ends for play
- Check bump stops for cracks
- Recheck cam bolt torque after the first drive
Specifications
| Brand | Rubicon Express |
|---|---|
| Part number | RE7122 |
| UPC | 614901441673 |
| Kit type | Standard coil lift |
| Lift height | 3.5 inches (chart range 3 to 4.99 inches) |
| Rear lift method | Coil springs |
| Shocks | Not included |
Vehicle fitment
It fits the 2007-2018 Jeep Wrangler (JK) in the 70th Anniversary, 75th Anniversary, Rubicon, Sahara, Sport, Sport S and X versions.
Confirm your vehicle’s year, model and trim before ordering.
Installation notes
The cam bolts set caster and pinion angle, so both should be checked once the install is complete. The kit leaves the control arms in place, so the alignment is the main check after the lift.
What’s included

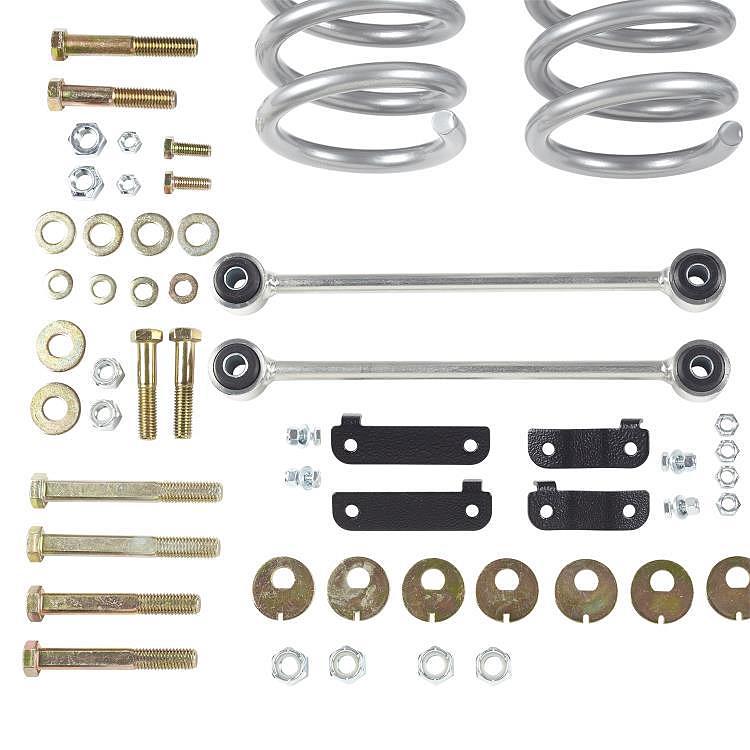

The kit includes front and rear replacement coil springs, front and rear cam bolts, front and rear bump stops, a front adjustable track bar, a rear track bar bracket and extended sway bar end links.
Not included: shock absorbers.
