Overview
The Rubicon Express JKRR23M is a 3.5-inch extreme-duty radius long arm lift kit with Mono-Tube shocks included. It fits the 2007-2018 Jeep Wrangler (JK) and is part of the JK suspension line. It is the shock-equipped version of the JKRR23, with the same adjustable control arms, Super-Flex spherical ball joints and PT-Meg Super-Ride bushings.
The system is designed for on- and off-road use. The full-width transmission crossmember adds durability and frame rigidity, and the install needs no welding. Optional high-performance monotube shocks in other heights are available, along with optional belly pan and CNC-machined steering knuckle upgrades. The kit covers lifts from 3 to 4.99 inches.
Key features
- 3.5-inch lift height, within the 3 to 4.99-inch range
- Radius long arm system for the front and rear
- Mono-Tube shocks included
- Chromoly radius long arms
- Adjustable control arms with serviceable Super-Flex spherical ball joints
- PT-Meg Super-Ride bushings
- Full-width transmission crossmember
Shock and arm maintenance
Radius long arms carry the axle location through their mounts, so the arms and their frame attachments should be inspected after rough use. Chromoly arms are designed to carry load, but mounting bolts can loosen over time, so check torque after the first trail runs.
Mono-Tube shocks benefit from periodic checks for leaks, damaged eyes and worn bushings. Because the shocks are included, they can be matched to the arm geometry at install time. Serviceable joints can be greased and inspected for play, which helps them last longer under load.
Off-road use puts more stress on the joints and bushings than road driving does, so inspection after every hard trip is worthwhile. Keep a simple record of torque checks and joint service so trends are easy to spot.
Specifications
| Brand | Rubicon Express |
|---|---|
| Part number | JKRR23M |
| UPC | 70000651276 |
| System type | Extreme-duty radius long arm |
| Lift height | 3.5 inches (chart range 3 to 4.99 inches) |
| Rear lift method | Radius arm |
| Control arms | Chromoly radius arms; adjustable control arms |
| Joints | Serviceable Super-Flex spherical ball joints |
| Shocks | Mono-Tube, included |
Vehicle fitment
The 2007-2018 Jeep Wrangler (JK) is covered, including the 70th Anniversary, 75th Anniversary, Rubicon, Sahara, Sport, Sport S and X trims.
Confirm your vehicle’s year, model and trim before ordering.
Installation notes
Radius arms change the arm angles and pinion geometry, so the alignment and driveline angles should be checked after the kit is installed.

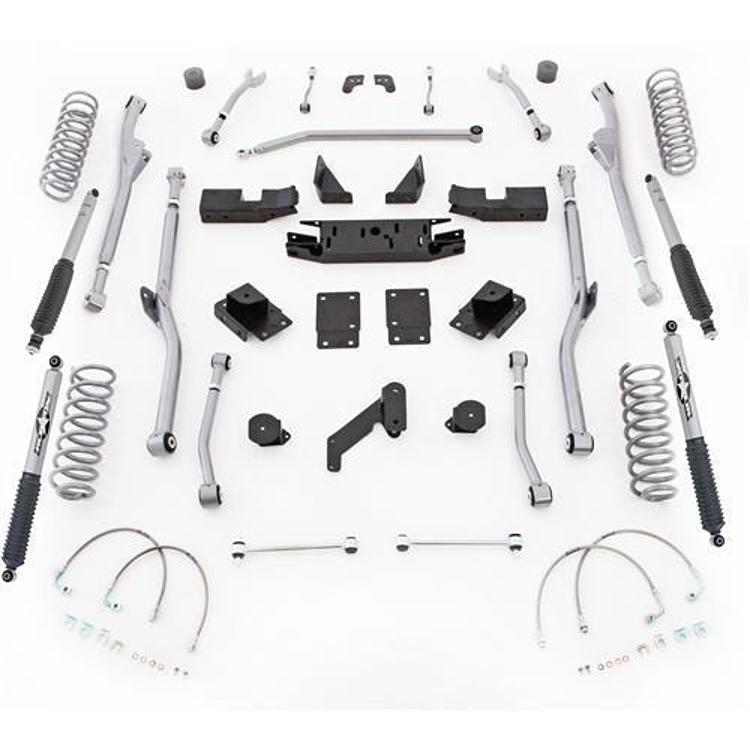

What’s included
The kit includes the chromoly radius long arms, adjustable control arms with Super-Flex spherical ball joints, PT-Meg Super-Ride bushings, the full-width transmission crossmember and Mono-Tube shocks.
The Mono-Tube shocks in this version are the difference from the JKRR23, which has no shocks. Radius arms at the front and rear change the arm angles, so the alignment should be checked after the lift is complete.
The chromoly radius arms, adjustable control arms and Super-Flex joints form the main parts of the arm set, and the PT-Meg Super-Ride bushings are included with them.
