Rubicon Express 4.5 Inch Extreme-Duty Long Arm Lift Kit with Rear Tri-Link and Mono Tube Shocks – RE7514M

Rubicon Express

Shop Jeep Wrangler TJ Lift Kits on Amazon

Compare current versions and compatible options on Amazon, then check out with your Amazon account.

Slickrock 4X4 is a participant in the Amazon Associates Program. As an Amazon Associate we earn from qualifying purchases.

  • Rubicon Express RE7514M 4.5 inch Extreme-Duty long arm lift kit with rear Tri-Link and mono tube shocks
  • Listed fit: 2003–2006 Jeep Wrangler TJ
  • Chromoly long arms, Builder Ball and tuned lift springs
  • Mono tube shocks included; lift range 3 to 4.99 inches

Description

Overview

The Rubicon Express RE7514M is a 4.5 inch Extreme-Duty long arm lift kit with a rear Tri-Link and mono tube shocks. It is a direct fit for the 2003–2006 Jeep Wrangler TJ. The lift height range is 3 to 4.99 inches.

The kit is a full long arm replacement, with longer control arms intended to improve geometry on a lifted TJ.

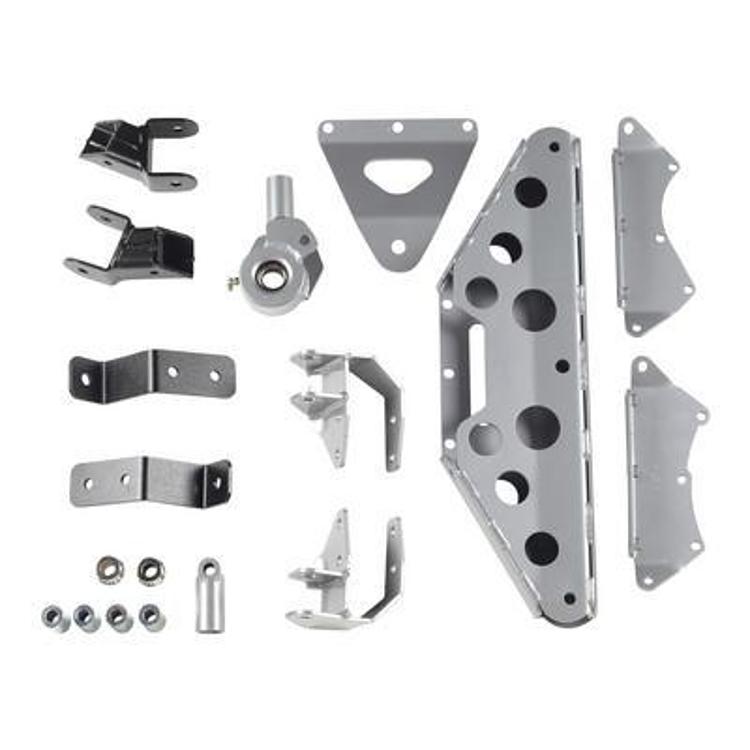

A rear Tri-Link replaces the track bar and lets the axle move up and down straight through its travel. Rubicon Express adds that the link increases anti-squat on steep climbs, and it is paired with the Builder Ball misalignment joint.

Key features

  • Chromoly long arms built from 4130 chromoly tubing
  • Rear Tri-Link that replaces the rear track bar
  • Builder Ball misalignment joint, rated by Rubicon Express for up to 32 degrees

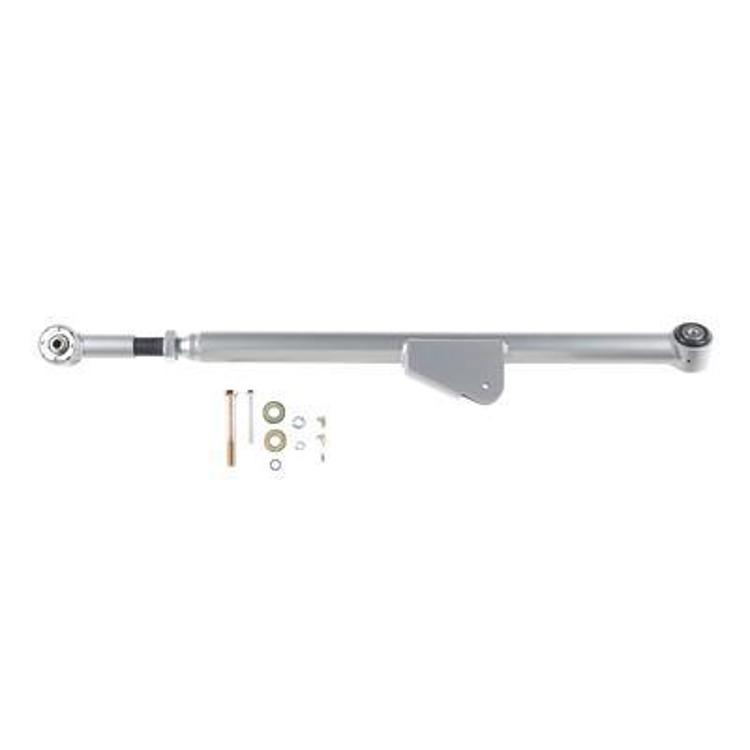

  • Adjustable control arms with serviceable Super-Flex spherical ball joints

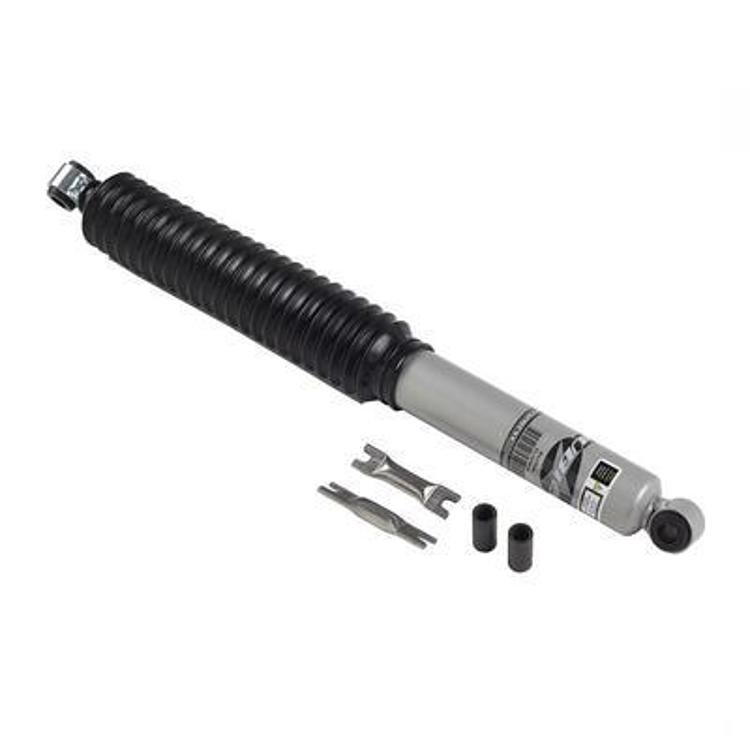

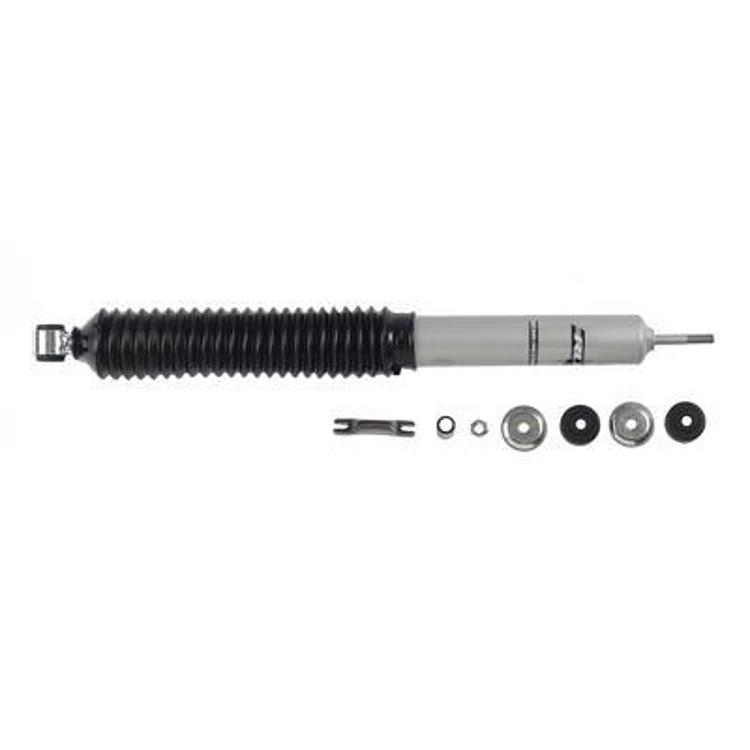

  • Mono tube shocks included
  • Tuned lift springs and PT-Meg Super-Ride bushings
  • Stainless steel brake lines

Long arm and Tri-Link setup

A long arm suspension uses longer control arms to hold the axle in position while it moves up and down. The longer arms reduce the change in angle through travel, which helps with ride comfort and axle movement on a raised vehicle. A Tri-Link replaces the track bar at the rear and keeps the axle moving straight through its travel, so lateral control depends on how the link is mounted and kept in good condition.

When choosing a long arm kit, consider the rest of the drivetrain. Driveline angles change with lift, so check the transfer case and axle angles after the install. A misalignment joint lets the arm articulate without binding, and its wear should be checked at service. Brake hose length, steering components and belly pan clearance may also need review once the body is raised.

  • Check driveline angles after installation
  • Inspect Builder Ball joints for play at service
  • Verify brake hose length after the lift

Specifications

Brand Rubicon Express
Part number RE7514M
UPC 614901452952
Lift height range 3 to 4.99 inches
Suspension type Long arm
Kit type Extreme-Duty long arm
Rear lift method 3-link (Tri-Link)
Control arm material 4130 chromoly, .250 wall
Misalignment joint Builder Ball, up to 32 degrees, 3 inch OD housing

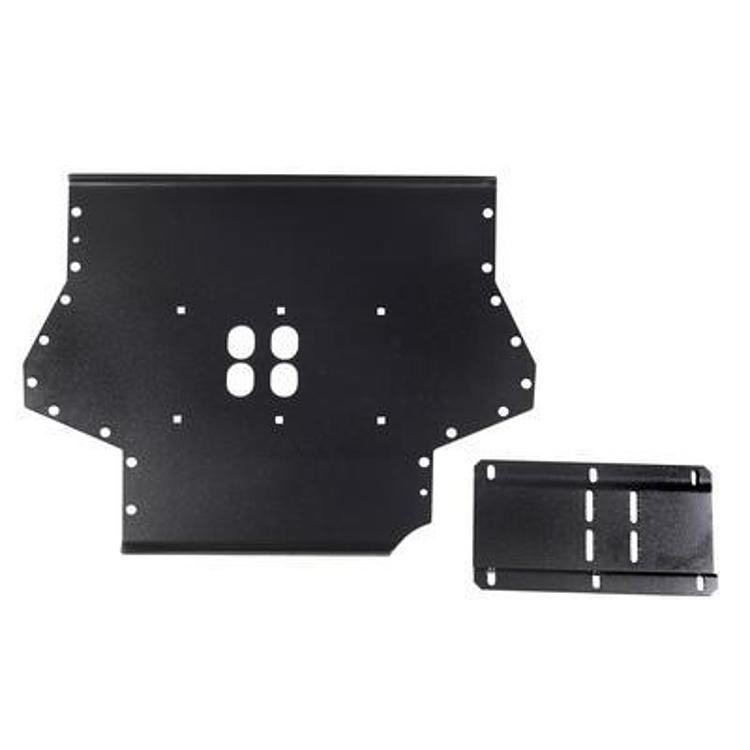

Belly pan Three-piece, for transfer case and transmission access
Shocks included Yes, mono tube
Fitment Direct fit

Vehicle fitment

It is a direct fit for the 2003–2006 Jeep Wrangler TJ, including the 65th Anniversary Edition, Rubicon, SE, Sahara and Sport models.

Confirm your vehicle’s year, model and trim before ordering, since this kit is built for the 2003–2006 TJ.

Installation notes

Once the long arms and the Tri-Link are installed, check the alignment and driveline angles. The kit is bolt-on for factory Dana 35 and Dana 44 rear ends.

What’s included

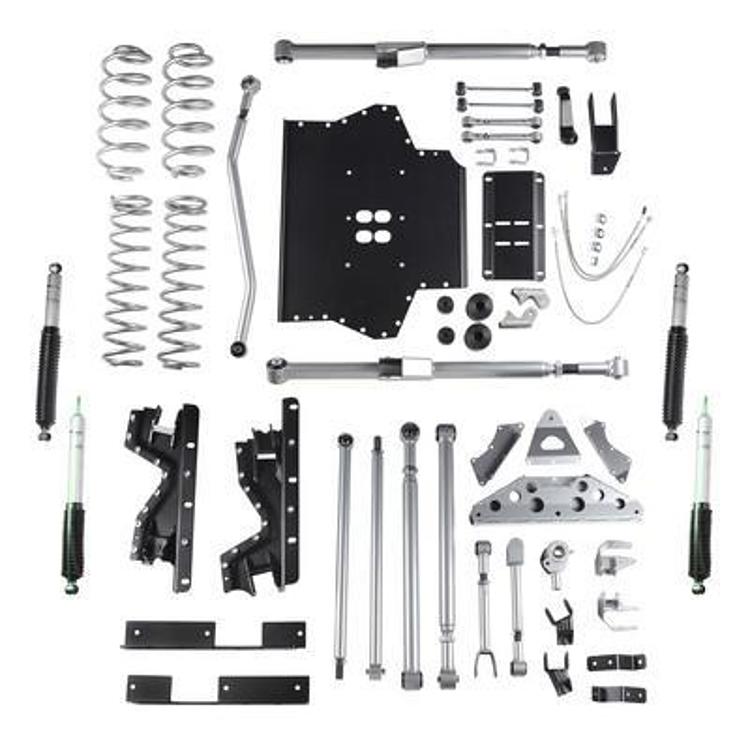

The kit includes front and rear control arms, the rear Tri-Link, the Builder Ball, mono tube shocks, tuned lift springs, PT-Meg Super-Ride bushings and stainless steel brake lines.

SKU: R/ERE7514M Category:

Specification

Shipping weight 419.45 lbs
Package dimensions 48.00 × 24.00 × 24.00 in
brands

Fitment

VehicleYearsTrims
Jeep Wrangler (TJ)2003–200665th Anniversary Edition, Rubicon, SE, Sahara, Sport

Use “Select your vehicle” at the top of the page to check this part against your vehicle.

Questions & Answers

Does the RE7514M include shocks?

Yes. Mono tube shocks are included with the long arm kit, so the shock replacement is covered in the same kit, and the lift springs are tuned to the kit.

Will the RE7514M fit a 2005 Jeep Wrangler TJ?

Yes. The kit fits the 2003 to 2006 Wrangler TJ, so a 2005 model is covered. Confirm the trim and body style before ordering.

Does the RE7514M eliminate the rear track bar?

Yes. The rear Tri-Link replaces the track bar, and the Builder Ball is the misalignment joint that works with it.

How can I tell if the Tri-Link or misalignment joint is worn?

Look for clunking when the axle moves under throttle or braking, uneven tire wear, and play at the joints when the vehicle is raised and checked by hand. Inspect these parts at each service and after rough trail use.
