Rubicon Express 3.5 Inch Extreme Duty 4-Link Front/Rear Radius Long Arm Lift Kit – No Shocks – JK4R43

Rubicon Express

Shop Jeep Wrangler JK Lift Kits on Amazon

Compare current versions and compatible options on Amazon, then check out with your Amazon account.

Slickrock 4X4 is a participant in the Amazon Associates Program. As an Amazon Associate we earn from qualifying purchases.

  • 3.5-inch extreme-duty 4-link front and radius rear long arm lift, no shocks
  • Adjustable chromoly upper and lower control arms with Super-Flex spherical ball joints
  • PT-Meg Super-Ride bushings and a full-width transmission crossmember
  • Designed for installation without welding
  • Fits 2007-2018 Jeep Wrangler (JK) models

Description

Overview

The Rubicon Express JK4R43 is a 3.5-inch extreme-duty long arm lift kit with a 4-link front, a radius rear and no shocks. It fits the 2007-2018 Jeep Wrangler (JK) and is part of Rubicon Express’s JK suspension line. The adjustable chromoly upper and lower control arms use Super-Flex spherical ball joints and PT-Meg Super-Ride bushings.

The system is built to deliver control and performance while leaving articulation unrestricted on rough ground. The full-width transmission crossmember is designed to add durability and frame rigidity, and the kit installs without welding. Optional high-performance monotube shocks can be added, along with optional belly pan and steering knuckle upgrades. The lift range is 3 to 4.99 inches.

Key features

  • 3.5-inch lift height, within the 3 to 4.99-inch range
  • Extreme-duty 4-link front and radius rear layout
  • Adjustable chromoly upper and lower control arms
  • Super-Flex spherical ball joints
  • PT-Meg Super-Ride bushings
  • Full-width transmission crossmember
  • Designed for installation without welding
  • Optional monotube shocks and belly pan upgrades

Adding a shock set

With no shocks included, the shock choice is open. Shocks should match the lift height and the arm geometry, because a long arm setup moves the axle through a different path than stock. Matching shock length at full extension and compression helps prevent binding and keeps the damping feel consistent across the suspension.

Shocks are often replaced alongside the arms, since older shocks may be worn from years of use and no longer control the new geometry well. It is also worth checking the bump stops, brake lines and steering components before final assembly, because the new arms change how those parts move. Plan the shock purchase along with the rest of the build rather than after installation.

  • Check shock length against the new lift height
  • Inspect old shocks for leaks and worn mounts
  • Verify brake hose slack at full travel

Specifications

Brand Rubicon Express
Part number JK4R43
UPC 70000651259
System type Extreme-duty 4-link front and radius rear long arm
Lift height 3.5 inches (chart range 3 to 4.99 inches)
Rear lift method Radius arm
Control arms Chromoly upper and lower, adjustable
Joints Super-Flex spherical ball joints
Bushings PT-Meg Super-Ride
Shocks Not included

Vehicle fitment

Fits the Unlimited and 4-door versions of the 2007-2018 Jeep Wrangler (JK).

Confirm your vehicle’s year, model and trim before ordering.

Installation notes

The radius rear and 4-link front change control arm and pinion geometry, so the alignment and driveline angles should be checked after the install.

What’s included

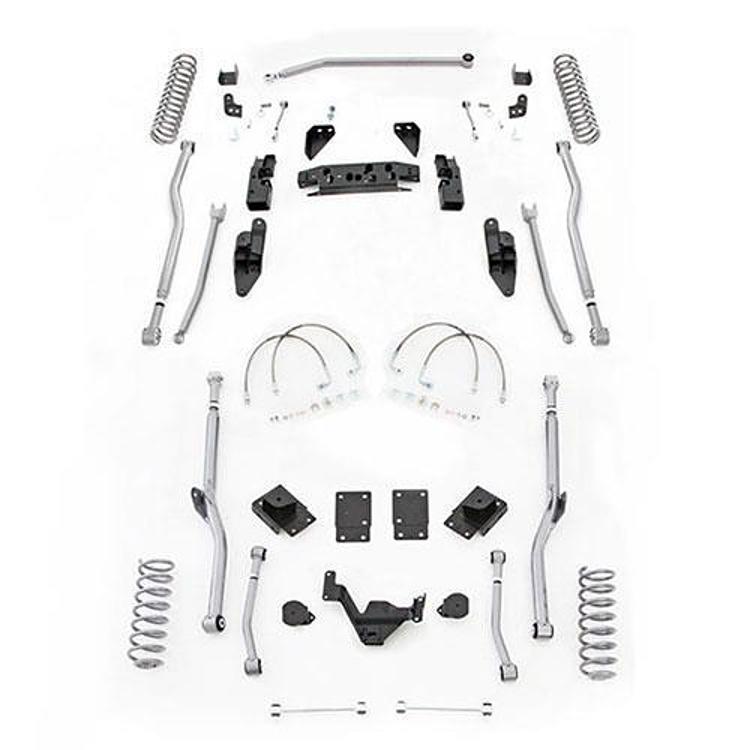

The adjustable chromoly control arms, Super-Flex spherical ball joints, PT-Meg Super-Ride bushings and full-width transmission crossmember form the core of the kit.

Not included: shock absorbers.

Optional high-performance monotube shocks are offered for this system, so a shock set can be chosen to match the build. The adjustable chromoly control arms and the full-width transmission crossmember make up the core of the kit.

The rear radius arm and front 4-link are the arm layout named in the product specifications, and the chromoly control arms are adjustable.

SKU: R/EJK4R43 Category:

Specification

Shipping weight 265.55 lbs
Package dimensions 0.00 × 0.00 × 0.00 in
brands

Fitment

VehicleYearsTrims
Jeep Wrangler (JK)2007–2018Unlimited 70th Anniversary, Unlimited 75th Anniversary, Unlimited Rubicon, Unlimited Sahara, Unlimited Sport, Unlimited Sport S, Unlimited X

Use “Select your vehicle” at the top of the page to check this part against your vehicle.

Questions & Answers

Does the JK4R43 include shocks?

No. The fitment details list shocks as not included, so you will need existing shocks or a separate set for the 3.5-inch height. The fitment details list shocks as not included, so a shock set is needed.

Which years does the JK4R43 fit?

Model years 2007 through 2018 of the Jeep Wrangler (JK) are covered, and this kit is built for that generation. Check that your year, model and trim match before buying.

Does this kit require welding?

No. The kit installs without welding. The rear radius arm and 4-link front layout are the arm design, and alignment should be checked after the install.

What is the rear arm design?

The rear uses a radius arm, and the front uses a 4-link layout. Both are part of the same arm design, so they are supplied together as one kit with the crossmember.

Can existing shocks be reused with this kit?

Sometimes. Reusing shocks works only if they are in good condition and their length suits the new arm geometry at full travel. Inspect for leaks, worn eyelets and weak damping before reusing them, and replace any that fail the check.

What should be checked after the install?

Check the alignment, driveline angles and brake hose slack once the install is finished. Look for loose hardware and recheck the bolts after the first few trail runs, since new arm angles can settle during early use.
