Overview
The Rough Country rear air spring kit, part number R/C10005C, is a rear air spring kit for 2007–2018 Chevrolet Silverado 1500 and GMC Sierra 1500 pickups. The kit covers two air springs, air lines and fittings.
The kit is for trucks that sit un-level under load, such as when the bed carries heavy weight or the rear leaf springs are worn. It uses two RC branded double convoluted air bags with DOT-approved air lines and provides up to 5,000 lbs of load support. It can help keep a trailer level, but it does not increase towing capacity. Minor drilling is required.
Key features

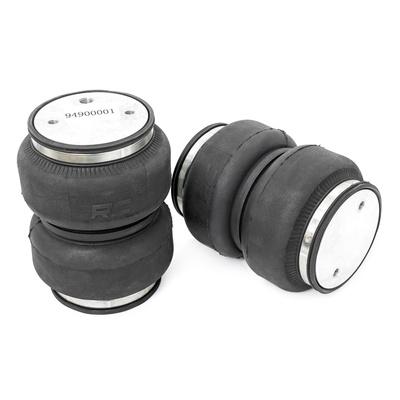

- Two RC branded double convoluted air bags
- DOT-approved air lines
- 1/4 inch push connector fittings
- All bracketry needed for installation
- Up to 5,000 lbs of load support
- Limited lifetime replacement warranty against manufacturer defects
Before you drill
Drilling is part of many air spring installs, so mark the mounting locations carefully before making any holes. Confirm clearance around the frame, fuel lines, brake lines and the spare tire area, and check the bracket fit before drilling. Work with the truck supported safely, and use the correct bit size for the bracket hardware.

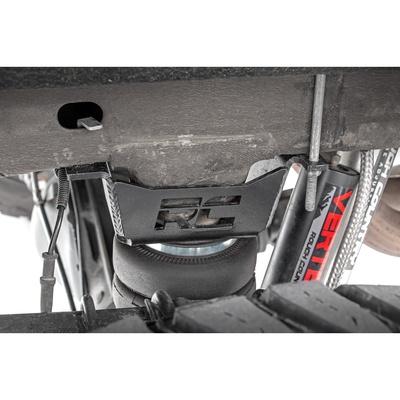

Once mounted, check the air bags for rubbing against the frame or axle at full travel. Worn leaf springs can change the way the bags load, so inspect the springs and bushings during the install. Keep the air lines clear of moving parts, and recheck the fasteners after the first few drives.
- Mark mounting locations before drilling
- Check clearance near fuel and brake lines
- Inspect leaf springs and bushings during install
- Recheck fasteners after early drives
Specifications
| Brand | Rough Country |
|---|---|
| Part number | R/C10005C |
| Product line | Rear air spring kit with onboard air compressor |
| Position | Rear |
| Air bags | Two double convoluted air bags |
| Load support | Up to 5,000 lbs |
| Air lines | DOT-approved |
| Fittings | 1/4 inch push connector |
| Installation time | Estimated 1 to 2 hours |
| Drilling | Minor drilling required |
| Towing capacity | Not increased by this kit |
| Warranty | Limited lifetime replacement warranty |
Vehicle fitment
It is a direct fit for the 2007–2018 Chevrolet Silverado 1500 in its Custom, High Country, Hybrid, LS, LT, LTZ, SSV, WT and XFE trims, and the 2007–2018 GMC Sierra 1500 in its Base, Denali, Hybrid, SL, SLE, SLT, WT and XFE trims.
The list covers the 1500 pickups from 2007 to 2018 only, so the 2019 and newer models, the 2500 and 3500 trucks and the Ford F-150 are not included. Confirm your vehicle’s year, model and trim before ordering.
Installation notes
Estimated installation time is 1 to 2 hours with standard tools. Minor drilling is required, so check the mounting locations and the air line routing on your truck before drilling.

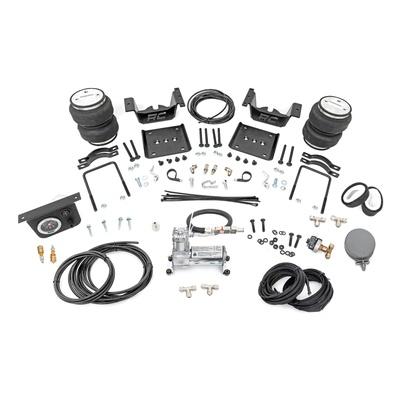

What’s included
Two double convoluted air bags, DOT-approved air lines, 1/4 inch push connector fittings and the bracketry for installation. Confirm whether an onboard compressor is included with your order before installing.
