Overview
The Rough Country 6-inch Ford suspension lift kit with N3 shocks, part number R/C57531, fits the 2014 Ford F-150 in the FX2, FX4, King Ranch, Lariat, Limited, Platinum, STX, XL and XLT versions. The kit is for the 2014 Ford F-150.
The kit uses lifted knuckles with strut spacers or N3 lifted struts, which the brand says gives enough ride height to run up to 35-inch tires. It also includes differential drop brackets, sway-bar drop brackets, brake line brackets and a drive shaft spacer that help keep the components at an optimum angle after lifting.
The front and rear cross members are 1/4-inch thick plate steel with a laser-cut RC logo. The rear fabricated blocks are engineered to prevent axle wrap.
Key features
- Lifted knuckles with strut spacers or N3 lifted struts
- 1/4-inch plate steel front and rear crossmembers with a laser-cut RC logo
- Differential drop brackets and sway-bar drop brackets
- Brake line brackets and a drive shaft spacer
- Fabricated rear blocks engineered to prevent axle wrap
- N3 premium shocks with 10-stage valving and 36kN tensile strength
Driveline and axle geometry
Drop brackets and a drive shaft spacer help keep driveline angles within a workable range after a lift. Differential drop brackets lower the differential, and the spacer helps the driveshaft sit correctly, so these parts should be checked together.
Sway-bar drop brackets change the angle of the sway bar links, which affects how the front end handles body roll. Brake line brackets protect the lines as the suspension moves, and they should be inspected for chafing after the first few drives.
Fabricated rear blocks and U-bolt hardware set the rear height, so check torque after the first trips. Taller trucks also change their center of gravity, so drive more gently on sloped ground and when braking hard. Inspect the crossmember welds during routine service for cracks.
- Check driveshaft angles
- Inspect brake line brackets
- Retorque U-bolts after first drives
Specifications
| Brand | Rough Country |
|---|---|
| Part number | R/C57531 |
| Lift kit | 6 inches |
| Shock series | N3 |
| Piston rod | 18mm spring-loaded |
| Shock body | 54mm |
| Tensile strength | 36kN |
| Rear lift method | Block or spacer |
| Rear lift component | Block and u-bolt |
| Tire size | 35 inches |
| Lift height range | 6 to 7 inches |
| Fitment type | Direct fit |
Vehicle fitment
It fits the 2014 Ford F-150 in the FX2, FX4, King Ranch, Lariat, Limited, Platinum, STX, XL and XLT versions.
Only 2014 models are covered. Other F-150 model years are not covered.
Confirm your vehicle’s year, model and trim before ordering.
Installation notes
The drop brackets and drive shaft spacer change the driveline geometry, so check the driveline angles and the front alignment after installation.

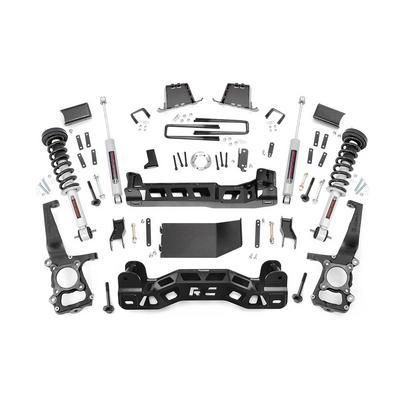

What’s included
Lifted knuckles or N3 lifted struts, strut spacers, front and rear crossmembers, drop brackets, brake line brackets, a drive shaft spacer, fabricated rear blocks and N3 shocks.
