Overview
The Rough Country 3-inch GM bolt-on suspension lift kit, part number R/C95830, is a direct fit kit for the 2020–2026 Chevrolet Silverado 2500 HD and the 2020–2026 GMC Sierra 2500 HD. It raises the truck with tubular upper control arms, forged torsion bar keys and a set of front and rear N3 shocks.
The upper control arms are designed to keep the ball joint at optimum angles after lifting, which reduces stress and wear. The arms use Clevite rubber bushings for durability and allow a fuller range of motion at the ball joint.
The installation is a 100% bolt-on process with no cutting or drilling, so the truck can be returned to stock if needed. Rough Country includes its lifetime replacement warranty with the kit.
Upper control arms link the frame to the steering knuckle, and the ball joint at the outer end is where the geometry of a lift shows up most. The bushings at the frame end are what keep the arm’s movement quiet and consistent.
Key features
- Tubular upper control arms
- Clevite rubber bushings
- Upper control arm geometry designed to keep the ball joint at optimum angles
- Forged torsion bar keys for strength and rigidity
- Front and rear N3 nitrogen-charged shocks
- Listed lift height range of 0 to 3.5 inches
Geometry after lifting
Upper control arms set the camber and caster at the top of the knuckle, so a lift changes both. Tubular arms hold the ball joint closer to its working angle, which reduces stress on the joint. The Clevite bushings at the frame end control the arm’s movement, and they should be inspected for cracks or looseness after several months of use.
Because the front geometry changes with the kit, the steering and tires should be checked at each oil change. Look for uneven front tire wear, a pull to one side or vibration at highway speed. Ball joints and tie rod ends that are already worn should be replaced during the install, so the new geometry is set on sound parts. Torsion bar keys affect front height, so re-check the front height after any adjustment.
- Check caster and camber after installation
- Inspect frame-end bushings for cracks
- Re-check front height after any torsion key adjustment
Specifications
| Brand | Rough Country |
|---|---|
| Part number | R/C95830 |
| Lift size | 3 inches |
| Shock series | N3, nitrogen-charged |
| Upper control arms | Tubular with Clevite rubber bushings |
| Torsion bar keys | Forged |
| Rear lift component | Block and u-bolt |
| Lift height range | 0 to 3.5 inches |
| Fitment type | Direct fit |
Vehicle fitment
It fits the 2020–2026 Chevrolet Silverado 2500 HD in Custom, High Country, LT, LTZ and WT versions, and the 2020–2026 GMC Sierra 2500 HD in AT4, Base, Denali, SLE and SLT versions. Light-duty 1500 trucks and other GM models do not fit.
Light-duty 1500 trucks and other GM models are not on the list.
Confirm your vehicle’s year, model and trim before ordering.
Installation notes
Because the kit changes the upper control arm geometry, have the front alignment checked after installation.

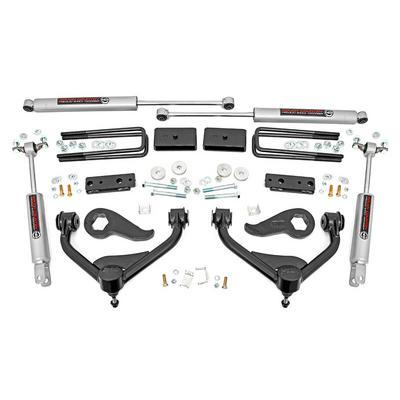

What’s included
Tubular upper control arms with Clevite bushings, forged torsion bar keys, front and rear N3 shocks, and the rear block and u-bolt components.
