Overview
The Rough Country 6-inch Ford lift kit, part number R/C55757, fits the 2015–2020 Ford F-150 in the King Ranch, Lariat, Limited, Platinum, Police Responder, SSV, XL and XLT versions. It gives the truck an aggressive look and enough ride height for tires up to 35 inches with proper wheel spacing.
The kit uses lifted knuckles and strut spacers at the front, along with differential drop brackets, sway-bar drop brackets, brake line brackets and a drive shaft spacer. The brand says these keep the components at optimum angles for a factory-like ride after lifting.
Front shocks are Vertex adjustable reservoir units, and the rear shocks are V2 monotube units. The rear lift uses fabricated blocks.
Key features
- Lifted knuckles and strut spacers
- Differential drop brackets and sway-bar drop brackets
- Brake line brackets and a drive shaft spacer
- Front and rear crossmembers updated for the newer F-150 design
- Fabricated rear blocks engineered to prevent axle wrap
- Listed lift height range of 6 to 7 inches
Tire fit and wheel offset
Tire clearance on a lifted F-150 depends on wheel offset and backspacing as much as on the lift itself. A wheel with the wrong offset can push the tire into the fender or suspension parts at full steering lock or on compression. Confirm the offset before mounting new tires, and test the full range of steering and suspension travel afterward.
Larger tires add rotating weight and change gearing, so the truck feels different on the road. Choose a tire that clears without rubbing, and check the speedometer reading after changing sizes. Heavier tires place more load on the shocks, which matters when judging ride quality.
Drive shaft spacers and differential drop brackets also set the driveline geometry. When tire size grows, the driveline may need an angle check. Recheck the front strut spacers and lifted knuckles for loose bolts after the first drives.
- Confirm wheel offset before mounting
- Test steering lock and suspension travel
- Recheck the speedometer after a tire change
Specifications
| Brand | Rough Country |
|---|---|
| Part number | R/C55757 |
| Lift kit | 6 inches |
| Front shocks | Vertex adjustable reservoir |
| Rear shocks | V2 monotube |
| Rear lift component | Block |
| Tire size | 35 inches |
| Shocks included | Yes |
| Lift height range | 6 to 7 inches |
| Fitment type | Direct fit |
Vehicle fitment
It fits the 2015–2020 Ford F-150 in the King Ranch, Lariat, Limited, Platinum, Police Responder, SSV, XL and XLT versions.
F-150 model years outside 2015–2020, including the 2021–2022 trucks, and Ford Super Duty models are not on the list.
Confirm your vehicle’s year, model and trim before ordering.
Installation notes
The kit changes the front ride height and the driveline angles, so have the alignment checked after installation. The drive shaft spacer is part of the driveline setup, so confirm it is fitted before the truck is driven.
What’s included

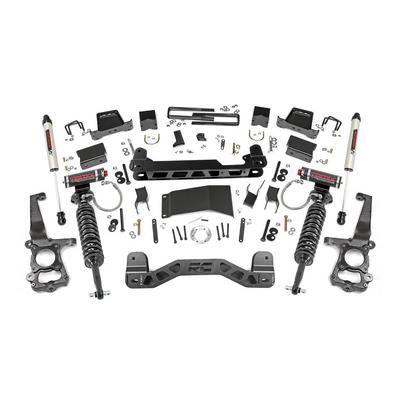

Lifted knuckles, strut spacers, front and rear crossmembers, drop brackets, brake line brackets, a drive shaft spacer, fabricated rear blocks, and the front Vertex and rear V2 monotube shocks.
