Overview

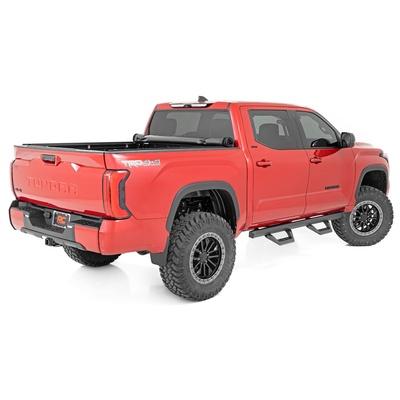

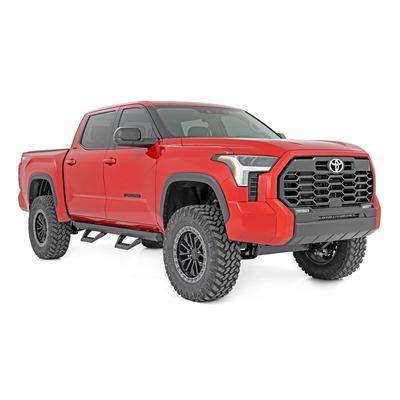

The Rough Country 6-inch Toyota Tundra suspension lift kit, part number R/C71200, fits the 2022 Toyota Tundra in the 1794 Edition, Capstone, Limited, Platinum, SR and SR5 versions. It gives the truck a level stance and more ground clearance, and makes room for larger wheels and tires.
The kit includes front strut spacers, rear coil spring spacers and bump stops, along with all the hardware needed for installation. It fits tires up to 37 inches and is designed to maintain factory track width and alignment specs.
The product fields list no shocks included. The front shocks and rear shocks are reused from the vehicle, and the rear lift uses coil spring spacers.
Key features
- Front strut spacers
- Rear coil spring spacers
- Bump stops
- Designed to maintain factory track width and alignment specs
- Clearance for tires up to 37 inches
- Listed lift height range of 6 to 7 inches
Shocks and bump stops
Reused factory shocks keep the ride close to the original feel, so their condition matters more after a lift. Worn shocks can let the new springs bounce and can wear tires faster, so inspect them before or during installation and replace any that leak or feel weak.
Bump stops limit how far the suspension can compress before the metal parts meet. A taller setup changes how far the suspension travels, so the stops help protect the axle and body at full compression. Check their condition whenever the suspension is serviced.
Strut spacers change front geometry and coil spring spacers change the rear, so the truck should be checked after installation for even tire wear and driveline vibration. Keep a record of the alignment and recheck it after the first highway drives.
- Inspect factory shocks for leaks
- Check bump stops for cracks
- Retorque hardware after first drives
Specifications
| Brand | Rough Country |
|---|---|
| Part number | R/C71200 |
| Lift kit | 6 inches, stage 1 |
| Front lift component | Strut spacer |
| Rear lift component | Coil spring spacer |
| Front shocks | Reuse factory shocks |
| Rear shocks | Reuse factory shocks |
| Shocks included | No |
| Tire size | 37 inches |
| Lift height range | 6 to 7 inches |
| Fitment type | Direct fit |
Vehicle fitment
It fits the 2022 Toyota Tundra in the 1794 Edition, Capstone, Limited, Platinum, SR and SR5 versions.
Tundra model years before 2022, and other Toyota models, are not on the list.
Confirm your vehicle’s year, model and trim before ordering.
Installation notes
Installation is bolt-on with all hardware included. Changing the ride height changes the alignment, so have the alignment checked after installation and confirm the driveline angles.

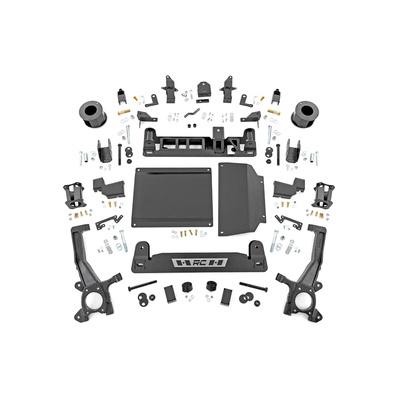

Strut spacers and coil spring spacers are the two lift components, and the bump stops limit suspension travel at full compression. All three parts, along with the installation hardware, come in the kit.
What’s included
Front strut spacers, rear coil spring spacers, bump stops and the installation hardware.
Not included: shock absorbers, since the factory shocks are reused.
