Overview
The Rough Country R/C55750 is a 6-inch suspension lift for the 2015–2020 Ford F-150 in King Ranch, Lariat, Limited, Platinum, Police Responder, SSV, XL and XLT versions. It comes with Vertex adjustable reservoir shocks at the front and rear, plus a block and u-bolt rear lift.
Lifted knuckles and strut spacers raise the front, which gives enough ride height to run up to 35-inch tires with proper wheel spacing. Differential drop brackets, sway-bar drop brackets, brake line brackets and a drive shaft spacer hold the components at workable angles after the lift.
The front and rear crossmembers are made from 1/4-inch thick plate steel and are updated for the newer F-150 design. The fabricated rear blocks are made to resist axle wrap.
Key features
- Vertex adjustable reservoir shocks at the front and rear
- Lifted knuckles and strut spacers
- 1/4-inch plate steel front and rear crossmembers
- Differential and sway-bar drop brackets
- Fabricated rear blocks engineered to prevent axle wrap
- Listed lift height range of 6 to 7 inches
Choosing wheels and tires
Tire clearance on a lifted truck depends on more than the lift height. Wheel offset and backspacing set how far the wheel sits in the fender, and a wheel with the wrong offset can rub at full steering lock or under suspension compression. Tire width and overall diameter also affect speedometer accuracy and gearing, so check both before buying.
Lifted knuckles and strut spacers change the front geometry, which makes the tire position more sensitive to alignment. Wheel spacers can help clearance but add load to the wheel bearings and studs, so use quality spacers with the correct thread. Test the steering and clearance at full lock before a longer trip.
- Measure backspacing before ordering wheels
- Check steering clearance at full lock
- Re-check lug nut torque after the first drive
Specifications
| Brand | Rough Country |
|---|---|
| Part number | R/C55750 |
| Lift kit | 6 inches |
| Front shocks | Vertex adjustable reservoir |
| Rear shocks | Vertex adjustable reservoir |
| Rear lift method | Block or spacer |
| Rear lift component | Block and u-bolt |
| Lift height range | 6 to 7 inches |
| Fitment type | Direct fit |
Vehicle fitment
The kit fits 2015–2020 Ford F-150 trucks in King Ranch, Lariat, Limited, Platinum, Police Responder, SSV, XL and XLT versions. The 2021–2022 F-150 and Ford Super Duty trucks are not covered. Confirm fit for your vehicle’s year, model and trim before ordering.
F-150 model years outside 2015–2020, the 2021–2022 F-150 and Ford Super Duty trucks are not on the list.
Confirm your vehicle’s year, model and trim before ordering.
Installation notes
Lifted knuckles and strut spacers change the front geometry, so have the alignment checked after installation. The drive shaft spacer and drop brackets affect the driveline angles, so check them before the truck is driven on rough terrain.

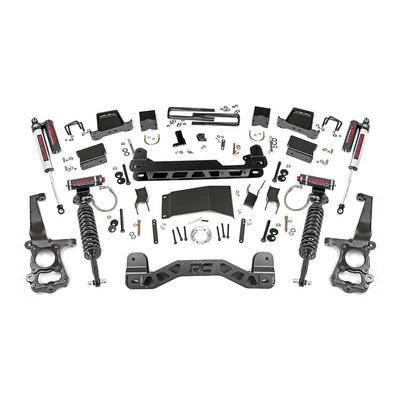

What’s included
Lifted knuckles, strut spacers, front and rear crossmembers, drop brackets, brake line brackets, a drive shaft spacer, fabricated rear blocks and the Vertex adjustable reservoir shocks.
