Overview
The ReadyLift 44-5877 is an 8-inch lift kit with Bilstein 5100 Series rear shocks for the Toyota Tundra. It fits 2007 to 2021 Tundra models in the 1794 Edition, Base, Limited, Nightshade, Platinum, SR, SR5 and Trail versions. The kit is set for 37-inch tires and uses a block and spacer rear lift.
The front uses laser cut, CNC bent, welded and boxed sub frame drop assemblies. CNC machined iron knuckles let the factory tie rods stay in use with minor trimming. The 8 inches of lift comes from steel offset spacers that attach to the factory strut, which keeps the factory ride and avoids widening the track. Stock 20-inch wheels can be used with a spare if needed.
Key features
- 8-inch lift from steel offset spacers on the factory struts
- Boxed sub frame drop assemblies
- CNC machined iron knuckles
- Factory tie rods can be retained with minor trimming
- Differential drop kit for CV and driveline angles
- OEM-style cast iron rear blocks with longer U-bolts
- Bump stop extensions and sway bar frame mount brackets
- Rear Bilstein 5100 Series shocks
On the trail
An 8-inch lift with offset spacers and a sub frame drop is a significant change, and how a truck handles off road depends on how well the front and rear are matched. Offset spacers on the factory struts keep the factory ride, which many owners prefer for daily driving. On the trail, the extra ground clearance helps over rocks, but approach and departure angles still depend on the bumper and body.
Tire choice matters as much as the lift. Taller tires change the final drive effect and can rub at full lock, so check clearance at the steering stops. Keep the spare tire and carrier in mind too, since a taller tire may not fit the factory mount without changes. Inspect the sway bar links and bump stop extensions after rough trail use, because they take the most stress at full articulation.
Specifications
| Brand | ReadyLift |
|---|---|
| Part number | RDY44-5877 |
| Lift kit size | 8 inches |
| Rear shocks | Bilstein 5100 Series |
| Rear lift method | Block and spacer, cast iron OEM style |
| Tire size | 37 inches |
| Wheels | Stock 20-inch wheels can be used with a spare if needed. |
| Fitment type | Direct fit |
Vehicle fitment
It fits 2007 to 2021 Toyota Tundra models in the 1794 Edition, Base, Limited, Nightshade, Platinum, SR, SR5 and Trail versions.
TRD Pro versions are not covered by this fitment. Match your truck’s year, model and trim to this fitment before ordering.
Installation notes
The sub frame drops, the offset spacers and the differential drop change the front geometry, so a wheel alignment should follow the install. The differential drop is designed to keep the CV axle and driveline angles correct, and the driveline should still be checked on the truck.
What’s included

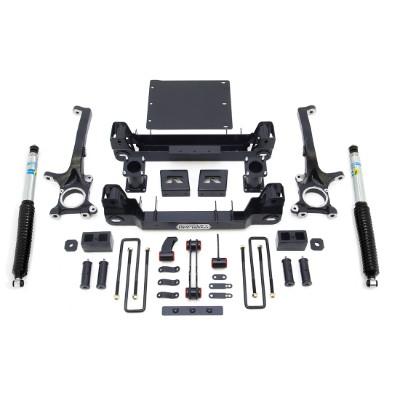

The kit includes the sub frame drop assemblies, the iron knuckles, the offset spacers, the differential drop parts, the OEM-style cast iron rear blocks with longer U-bolts, the bump stop extensions, the sway bar frame mount brackets and four Bilstein 5100 Series rear shocks.
