Overview
The Pro Comp K5069BP is a 6-inch Stage 1 lift kit with Pro Runner shocks for the 2007–2018 Toyota Tundra. The front uses a crossmember, steering knuckles and compression struts, and the rear is lifted with lift blocks, U-bolts and add-a-leafs.
Front and rear crossmembers, sway bar spacers and bump stop extensions are included. The front shocks are re-used OEM units, so verify the shock package before ordering the Pro Runner version.
Key features
- 6-inch lift height from a Stage 1 kit

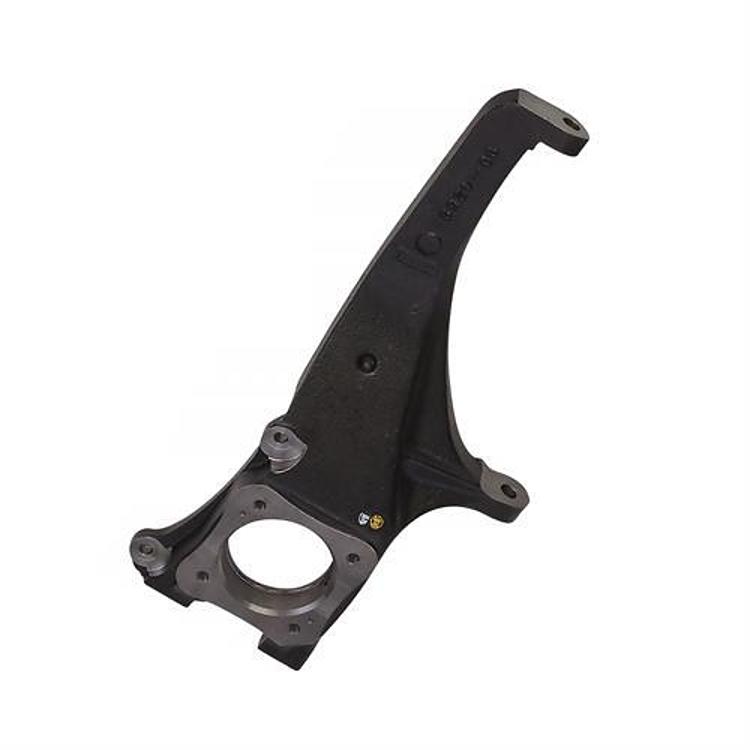

- Crossmember and steering knuckles

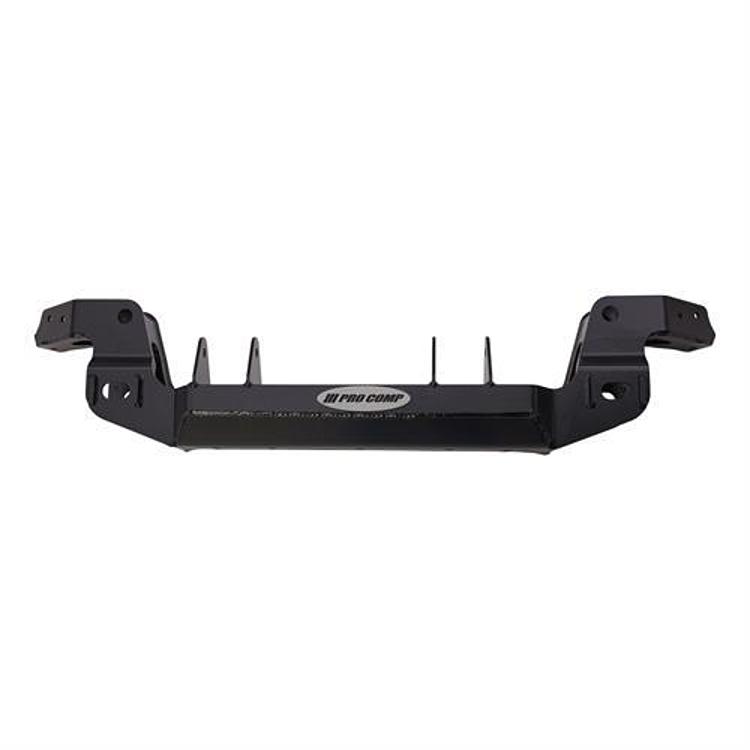

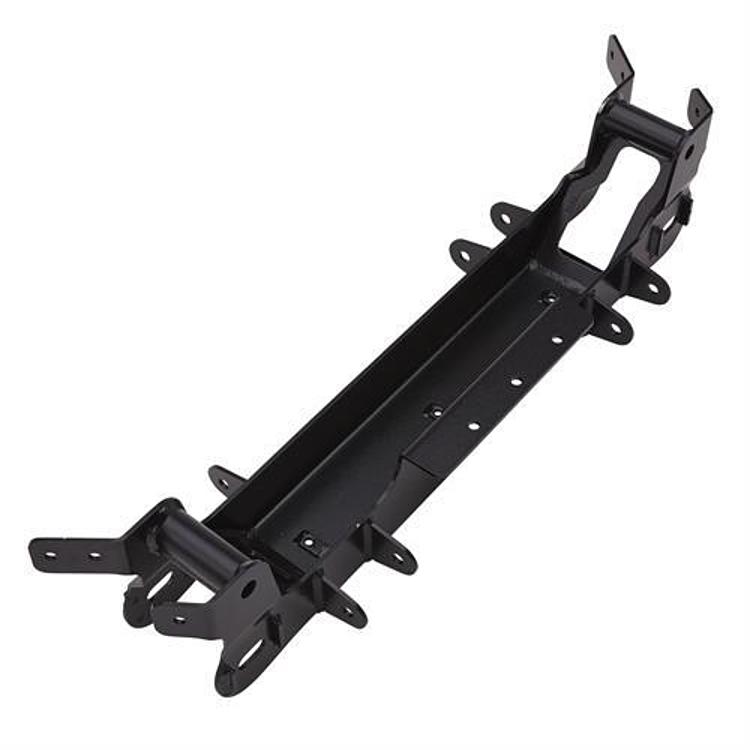

- Front and rear crossmembers
- Compression struts

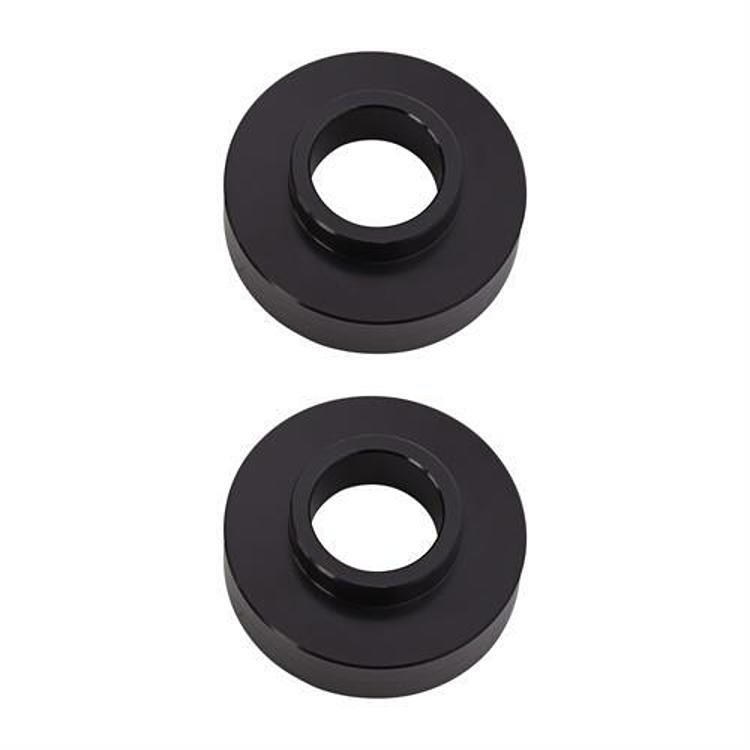

- Front sway bar spacers and bump stop extensions
- Brake line extension brackets and block and U-bolt rear lift
Tundra lift considerations
A full-size truck carries more weight than a compact one, so a lift affects load distribution, braking and how the rear settles under a loaded bed. Block-type rear lifts raise the axle seat, which can change the angle of the driveline. Checking the driveline after installation helps catch vibration before it causes wear.
Add-a-leafs stiffen the rear spring pack, so the ride can feel firmer when the bed is empty. Inspect the leaf clamps for cracks and confirm that the bolts stay tight after the first drives. Matching tire size to the lift and checking clearance at full lock also prevent rubbing against the body or fender.
Front components such as the crossmember and knuckles should be checked for alignment and brake line clearance once the truck has settled.
- Check rear U-bolts after the first drives
- Inspect add-a-leaf clamps regularly
- Recheck brake line length
- Verify tire clearance at full lock
Specifications
| Brand | Pro Comp Suspension |
|---|---|
| Part number | K5069BP |
| UPC | 70000637869 |
| Lift height | 6 inch (lift height range 5 to 6.99 inches) |
| Lift kit stage | Stage 1 |
| Suspension type | Knuckle |
| Front control | Crossmember, steering knuckles and compression struts |
| Rear lift | Lift blocks, U-bolts and add-a-leafs |

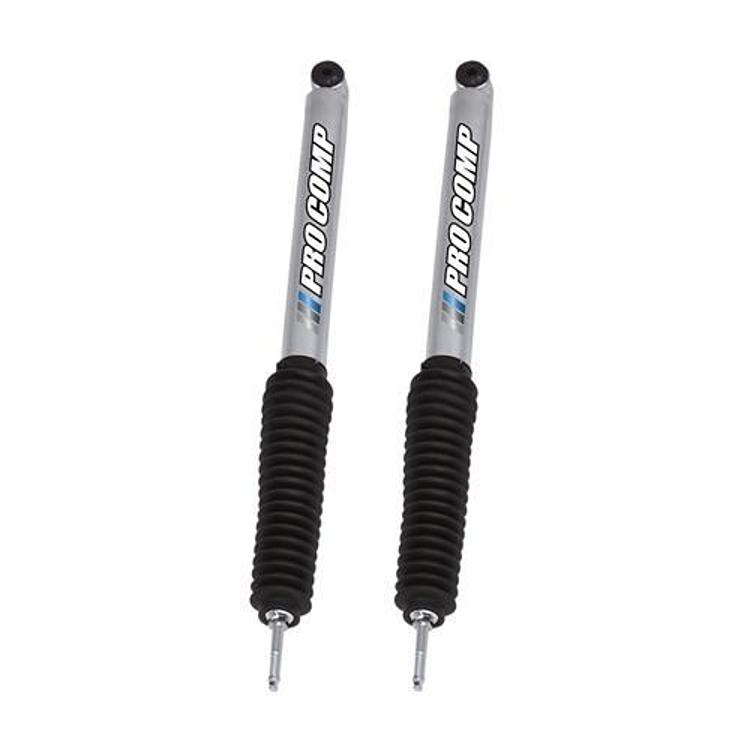

| Front shocks | Re-use OEM (the product name cites Pro Runner shocks) |
Vehicle fitment
Fitment covers 2007–2018 Toyota Tundra trucks in the 1794 Edition, Base, Limited, Platinum, SR, SR5 and TRD Pro trims.
The list covers the 2007 through 2018 Tundra model years. Other years are not covered by this entry. Confirm your vehicle’s year, model and trim before ordering.
Installation notes
The front crossmember and knuckles change the geometry, so the alignment should be checked and the brake lines inspected after the lift is installed.

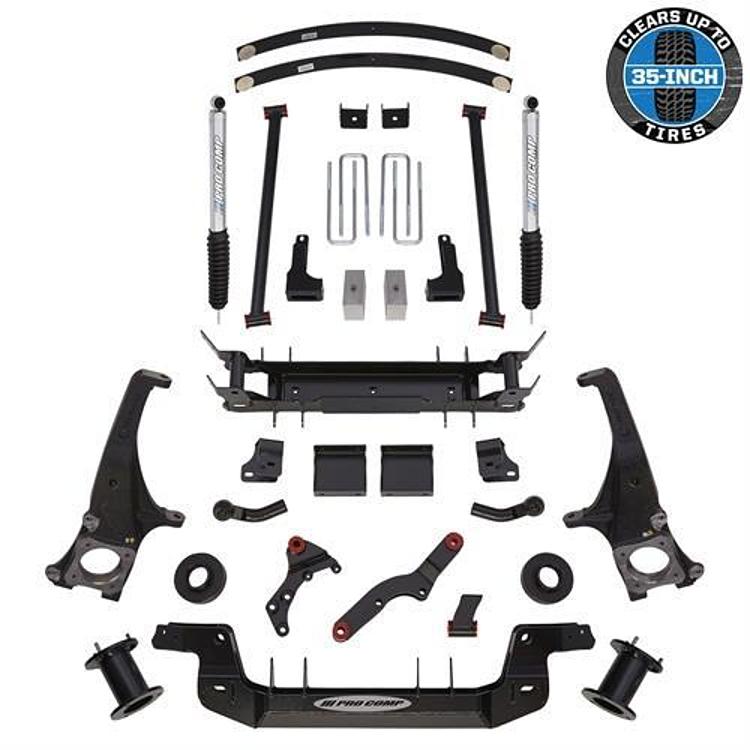

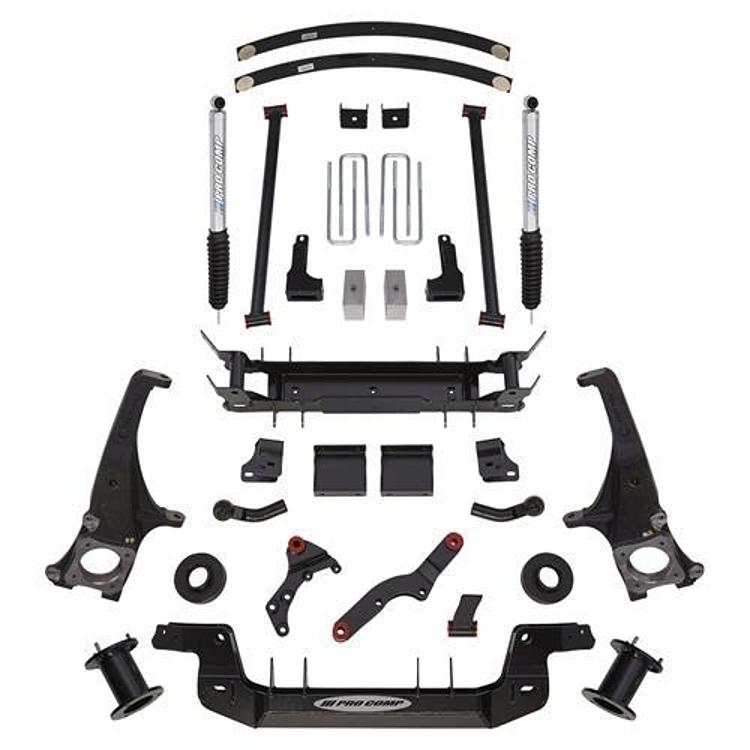

What’s included
The kit includes the front and rear crossmembers, the steering knuckles, compression struts, front sway bar spacers, bump stop extensions, brake line extension brackets, and the block, U-bolt and add-a-leaf rear lift.
