Overview
The ReadyLift 69-4630 is a 3-inch front and 2-inch rear SST lift kit for the heavy-duty Nissan Titan XD. It is designed for the Titan XD and not the standard Titan. It fits 2016 to 2019 Titan XD models in the PRO-4X, Platinum Reserve, S, SL and SV versions.
The kit uses a top mount strut extension at the front and thick billet aluminum rear lift blocks with longer U-bolts at the rear. It bolts to the factory strut with no modifications. It keeps factory ride, geometry and alignment specifications, and it does not disrupt factory safety sensor equipment.
Key features
- 3 inches of front lift from a top mount strut extension
- 2 inches of rear lift from thick billet aluminum blocks
- Longer U-bolts for the rear block
- Bolt-on installation with no modifications required
- Keeps the factory ride, geometry and alignment specifications
- Does not disrupt factory safety sensor equipment
Rear blocks and driveline
Thick billet rear blocks raise the rear by changing where the springs and axle sit, and taller blocks increase the driveline angle. A steeper driveshaft angle can cause vibration, so the driveline should be checked and the rear u-joints inspected after installation. Longer U-bolts need to be torqued correctly once the truck is at ride height.
Front strut extensions keep factory geometry, but the change in front height still affects steering and suspension angles, so an alignment is a sensible follow-up. Heavy-duty trucks often tow or haul heavy loads, which places extra strain on the rear hardware. Check the U-bolt nuts and block seating after the first heavy load.
- Check driveline angle and u-joints for wear
- Re-torque U-bolts after the first heavy load
- Inspect strut extension mounts for loosening
- Confirm tire clearance at full steering lock
Specifications
| Brand | ReadyLift |
|---|---|
| Part number | RDY69-4630 |
| Front lift | 3 inches |
| Rear lift | 2 inches |
| Front component | Top mount strut extension |
| Rear component | Thick billet aluminum block with longer U-bolts |
| Tire fit | Up to 285/60R20 or 33×11 on a 9-inch wide wheel with positive offset |
| Fitment type | Direct fit |
Vehicle fitment
It fits 2016 to 2019 Nissan Titan XD models in the PRO-4X, Platinum Reserve, S, SL and SV versions.
The kit is for the Titan XD, not the standard Titan. Verify the year, model and trim against your vehicle before ordering.
Installation notes
The kit bolts on with no modifications. Because the rear blocks are taller than the factory blocks, check the driveline angles after installation. Alignment specifications are maintained, but an alignment check after installation is still advisable. The kit does not disrupt factory safety sensor equipment.

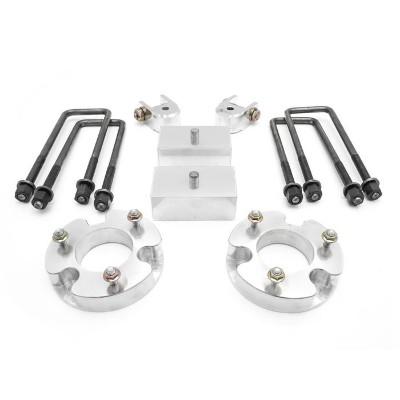

What’s included
The kit includes the top mount front strut extensions, the billet aluminum rear lift blocks and the longer U-bolts.
