Overview
The ReadyLift 44-5677 is a 6-inch lift kit with rear Bilstein 5100 Series shocks for the Toyota Tundra. It fits 2007 to 2021 Tundra models in the 1794 Edition, Base, Limited, Nightshade, Platinum, SR, SR5 and Trail versions. The kit is for 35-inch tires and uses a block and spacer rear lift.
The front uses laser cut, CNC bent, welded and boxed sub frame drops, with CNC machined iron knuckles. The factory tie rods can be kept with minor trimming. Steel offset spacers attach to the factory strut to provide the lift. The layout keeps the factory ride and track width, so the front tires do not stand out further than the rear tires.
Key features
- 6-inch lift from steel offset spacers on the factory struts
- Rear Bilstein 5100 Series shocks
- Laser cut, CNC bent, welded and boxed sub frame drop assemblies
- CNC machined iron knuckles
- Factory tie rods can be kept with minor trimming
- Differential drop kit for CV and driveline angles
- OEM-style cast iron rear lift blocks with longer U-bolts
- Bump stop extensions and sway bar frame mount brackets
Rear shocks and load
Rear shocks control how the body moves over bumps and under load. When a lift adds height with block and spacer parts, the shock position and length change, so the shock should be checked for full extension and compression. Worn or leaking rear shocks reduce control and can make a lifted truck feel loose on the highway.
Rear blocks and longer U-bolts change the spring geometry, so the axle should be checked for pinion angle and driveline clearance. Bump stops limit travel and protect the shocks from harsh bottoming. Cargo in the bed also changes how the rear sits, so a truck that tows or hauls should be checked at its normal load.
- Check rear shock mounting and bushings at each service
- Inspect U-bolts for tightness after the first few drives
- Look at driveline angles at the finished height
- Confirm bump stop contact at full compression
Specifications
| Brand | ReadyLift |
|---|---|
| Part number | RDY44-5677 |
| Lift kit size | 6 inches |
| Rear shocks | Bilstein 5100 Series |
| Rear lift method | Block and spacer, cast iron OEM style |
| Tire size | 35 inches |
| Fitment type | Direct fit |
Vehicle fitment
2007 to 2021 Tundra models in the 1794 Edition, Base, Limited, Nightshade, Platinum, SR, SR5 and Trail versions.
TRD Pro versions are not covered. Confirm your vehicle’s year, model and trim before ordering.
Installation notes
The sub frame drops, the offset spacers and the differential drop change the front geometry, so a wheel alignment should follow the install. The differential drop is set to keep the CV axle and driveline angles correct, and the driveline should still be checked on the truck.
What’s included

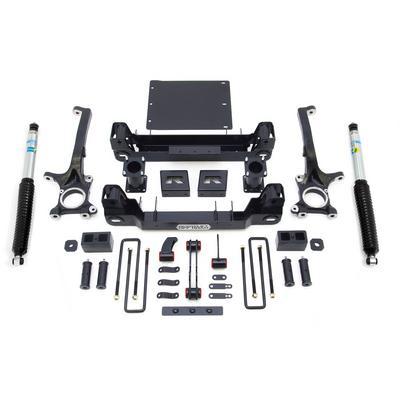

The kit includes the sub frame drop assemblies, the iron knuckles, the offset spacers, the differential drop parts, the rear cast iron blocks with longer U-bolts, the bump stop extensions and the sway bar frame mount brackets. The rear Bilstein 5100 Series shocks are part of the kit.
